    Mercedes-Benz Sprinter Base (2003) price & specs

    From
    $46,160†
    2.1L Diesel2D Cab Chassis5 SP MANUALRWD

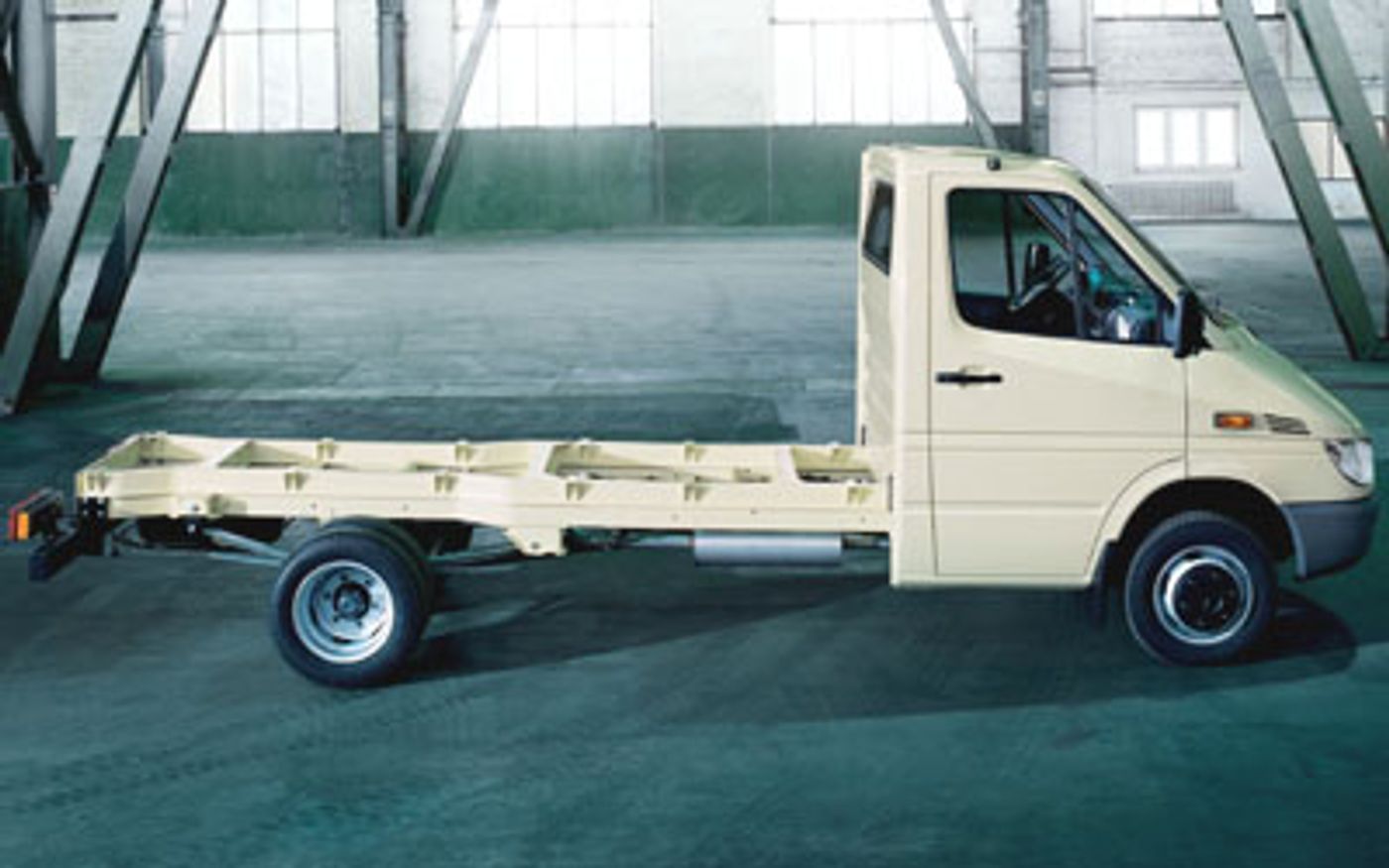

    Hero image of a new Mercedes-Benz Sprinter Base (2003) price & specs available with CarExpert deals.

    Base

    Find a deal

    Overview

    The 2003 Mercedes-Benz Sprinter Base is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. The Mercedes-Benz Sprinter is regarded as a Van Over 3.5t built in Germany with prices starting at $46,160 before on-road costs.

    This Mercedes-Benz Sprinter is powered by a 2.1L 4-cylinder engine that has 95 kW of power (at 3800 rpm) and 300 Nm of torque (at 1600 rpm) via a Five-speed Manual transmission. It has a 75L fuel tank

    The Mercedes-Benz Sprinter measures 2175mm (85.6 inches) in height, 6615mm (260.4 inches) in length, 1988mm (78.3 inches) in width with a 4025mm (158.5 inches) wheelbase that brings about a total of 1831kg (4036.7 lbs) of unladen weight. The Sprinter Base comes standard with 195/70 R15 front tyres and 195/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.

    The 2003 Mercedes-Benz Sprinter Base has a 172mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    How does the Sprinter compare?

    Quickly see how the 2003 Mercedes-Benz Sprinter Base stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    29.34 - 63.57 kW/t
    29.34 kW/t
    63.57 kW/t
    Price
    $34,965 - $74,295
    $34,965
    $74,295
    Warranty (Years)
    3 years
    3 years
    Warranty (Distance)
    100,000 km
    100,000 km
    180,000 km
    Years on Sale
    2 - 8 years
    1 year
    5 years

    Towing & Off-Road Capability

    Gross Vehicle Weight
    3,550 - 5,990 kg
    3,510 kg
    5,990 kg
    Braked Towing Capacity
    2,000 - 4,000 kg
    2,000 kg
    4,000 kg
    Ground Clearance Unladen
    172 - 193 mm
    172 mm
    193 mm
    Payload Capacity
    1,481 - 3,728 kg
    1,480 kg
    3,728 kg

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    Dimensions

    6,615 mm
    1,988 mm
    2,175 mm
    SpecificationMeasurement
    Overall Length6,615 mm
    Overall Width1,988 mm
    Overall Height2,175 mm
    Wheelbase4,025 mm
    Turning Circle14,300 mm
    Load Capacity2,659 mm

    Looking for complete Mercedes-Benz Sprinter size & space specs?

    Our Mercedes-Benz Sprinter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Sales Data

    20243,983Total Sales
    20253,690Total Sales
    2026276YTD Sales

    Mercedes-Benz Sprinter Sales rolling 12-months#

    *Based on VFACTS and EVC data

    Looking for complete Mercedes-Benz Sprinter price history?

    Our Mercedes-Benz Sprinter Pricing Page shows exactly how prices have changed over time.

    Explore Mercedes-Benz Sprinter Features & Specs

    Base

    2.1L, 5-speed manual, 2-door Cab Chassis, Diesel, RWD

    Save $$$ with CarExpert*
    $46,160†
    Find a deal

    Auxiliary Power Take Off

    Engine Location: Engine
    Transmission Location: Transmission

    Compressor

    Compressor: Turbo

    Engine

    Bore Engine: 88
    Engine (cc): 2148
    Compression Ratio: 18
    Engine Configuration: In-Line
    Engine Code: MQ5
    Engine (L): 2.1
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 88.3
    Valve Gear Type: Double Overhead Cam

    Fuel

    Generic Primary Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 19.8
    Main Capacity (L): 75
    Main Fuel Type: Diesel
    Main Type: Total

    Interested in buying a Mercedes-Benz Sprinter Base?

    Save $$$ with CarExpert*
    From
    $46,160†
    Find a deal

    Fuel Consumption

    ADR 81/02 Standard: Adr 81/02
    AS 2877 Standard: As 2877

    Power

    Maximum Power (hp/PS): 129
    Maximum Power (kW): 95
    Maximum Torque (Nm): 300
    Measurement Standard: EEC
    Rpm For Maximum Power Low: 3800
    Rpm For Maximum Torque Low: 1600

    Drive

    Driven Wheels: Rear

    Electronic Traction Control

    Controlled By: Abs & Engine Management

    Transmission

    Code: G20
    Number of Speeds: 5
    Type: Manual

    ABS

    Location: 4-Wheel

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Alternate Suspension

    Type: Other

    Suspension

    Location: Front
    Front Spring Type: Leaf
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Stabilizer Bar: yes
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Width: 195
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Width: 195

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 15
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 5.5
    Rear Axle Location: 1
    Rear Axle Dual Wheel: yes
    Location: Rear
    Rear Rim Diameter (In): 15
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 5.5

    Body Style

    Body Type: Cab Chassis
    Cab Type: Single Cab
    Driver Location: RHD
    Local Body Type: Cab Chassis
    Roof Type: Standard
    Wheelbase Type: Long

    Mud Flaps

    Front Mud Flaps Location: Front

    Bumpers

    Front Bumper Colour: Black
    Location: Front
    Front Bumper Material: Plastic

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 14300
    Front Overhang (in): 37
    Front Overhang (mm): 939
    Front Track (in): 64.8
    Front Track (mm): 1647
    Ground Clearance Unladen (in): 6.8
    Ground Clearance Unladen (mm): 172
    Kerb To Kerb Turning Circle (ft): 46.9
    Overall Height (in): 85.6
    Overall Height (mm): 2175
    Overall Length (in): 260.4
    Overall Length (mm): 6615
    Overall Width (in): 78.3
    Overall Width (mm): 1988
    Rear Overhang (in): 58.3
    Rear Overhang (mm): 1482
    Rear Track (in): 61.1
    Rear Track (mm): 1552
    Wheelbase (in): 158.5
    Wheelbase (mm): 4025

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged

    Headlight Control

    Internal Height Adjustment: yes

    Headlights

    Low Beam Bulb Type: Halogen
    Lens Type: Complex Surface

    Paint

    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Black
    Heated Driver Door Mirrors/Cameras: yes
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Black
    Heated Passenger Door Mirrors/Cameras: yes
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Fixed

    Weights

    Front Axle Weight (kg): 1750
    Front Axle Weight (lb): 3858
    Gross Trailer Weight Braked (kg): 2000
    Gross Trailer Weight Braked (lb): 4409
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Vehicle Weight (kg): 4490
    Gross Vehicle Weight (lb): 9899
    Payload Allowance (kg): 2659
    Payload Allowance (lb): 5862
    Published Kerb Weight (kg): 1831
    Published Kerb Weight (lb): 4037
    Rear Axle Weight (kg): 3200
    Rear Axle Weight (lb): 7055

    Audio Anti-Theft Protection

    Type: Code

    Audio System

    In-Dash CD: yes
    Radio Type: Am/Fm

    Speakers

    Number of Speakers: 2

    Cigar Lighter

    Location: Front Seats

    Floor Covering

    Vehicle Cab Compartment: Plastic/Rubber

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Center Operation: Reel
    Center Seat Position: Center
    Center Type: 3-Point
    Driver Height Adjustable: yes
    Driver Operation: Reel
    Driver Seat Position: Driver
    Driver Type: 3-Point
    Passenger Height Adjustable: yes
    Passenger Operation: Reel
    Passenger Seat Position: Passenger
    Passenger Type: 3-Point

    Head Restraints

    Front Seats Height Adjustable: yes
    Front Seats Location: Front Seats
    Front Seats Number: 3

    Front Seat

    Location: Centre
    Center Front Seat Type: Bench
    Driver Front Seat Height Adjustment: yes
    Location: Driver
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Type: Bench

    Seat Upholstery

    Main Seat Material: Cloth

    Seating

    Capacity: 3
    Configuration: 3+0

    Cup Holders

    Location: Front Seats
    Front Seats Type: Fixed

    Door Pockets Bins

    Location: Driver
    Location: Passenger

    Power Locks

    Operation: Remote
