ELX
Overview

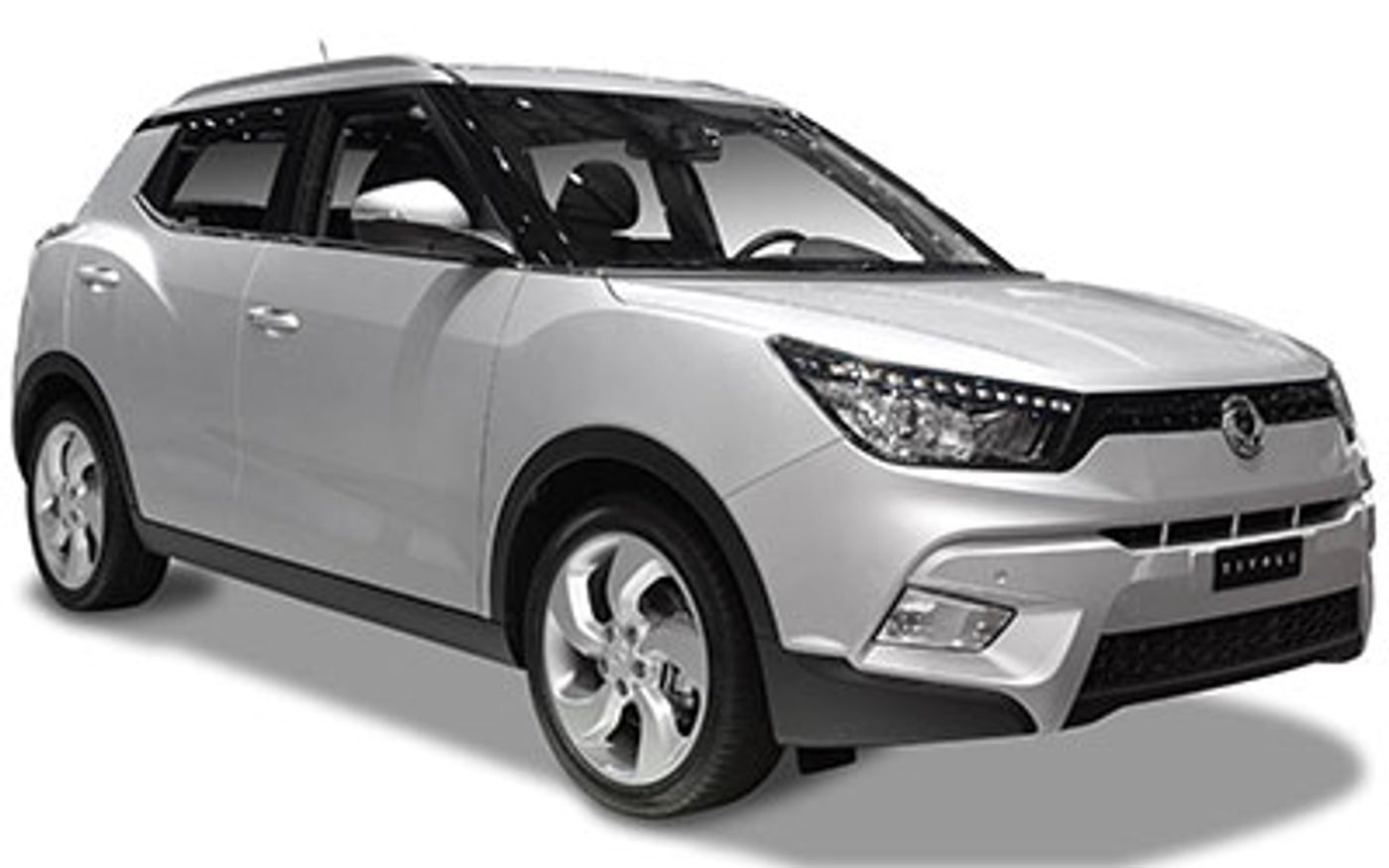

The 2019 KGM Tivoli ELX is a front-wheel drive, 5-door SUV that was released to the Australian market on 4th September 2018. The KGM Tivoli is regarded as a small SUV built in Korea with prices starting at $26,990 before on-road costs.
This KGM Tivoli is powered by a 1.6L 4-cylinder engine that has 94 kW of power (at 6000 rpm) and 160 Nm of torque (at 4600 rpm) via a Six-speed Automatic transmission. KGM claims the Tivoli ELX uses 7.2L/100km of Unleaded in the combined city and highway cycle while putting out 167g of CO2. It has a 47L fuel tank, meaning it should be able to travel 653km per full tank
The KGM Tivoli measures 1600mm (63.0 inches) in height, 4202mm (165.4 inches) in length, 1798mm (70.8 inches) in width with a 2600mm (102.4 inches) wheelbase that brings about a total of 1300kg (2866.0 lbs) of unladen weight. The Tivoli ELX comes standard with 205/60 R16 front tyres and 205/60 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 84 month, unlimited km warranty.
The 2019 KGM Tivoli ELX has a 167mm ground clearance with a 1000kg braked and 500kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Tivoli compare?
Quickly see how the 2019 KGM Tivoli ELX stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
57.43 - 74.02 kW/t
53.13 kW/t
120.24 kW/t
Boot Space
423 litres
92 litres
720 litres
Fuel Efficiency
5.5 - 7.2 L/100km
1.7 L/100km
11.7 L/100km
Vehicle Range
653 - 855 km
594 km
1,170 km
Price
$22,990 - $33,490
$22,990
$144,800
Warranty (Years)
7 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,810 - 2,010 kg
1,810 kg
2,940 kg
Braked Towing Capacity
1,000 - 1,500 kg
480 kg
2,500 kg
Approach Angle
20.8°
16.7°
29.9°
Departure Angle
28°
16.4°
32.2°
Ground Clearance Unladen
167 mm
97 mm
230 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,202 mm
1,798 mm
1,600 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,202 mm |
| Overall Width | 1,798 mm |
| Overall Height | 1,600 mm |
| Wheelbase | 2,600 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 510 mm |
Looking for complete KGM Tivoli size & space specs?
Our KGM Tivoli Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore KGM Tivoli Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Steering: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Type: Manual
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 167
Standard Met: EU6
Engine
Bore Engine: 76.0
Engine (cc): 1597
Engine Configuration: In-Line
Engine Code: E-Xgi160
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 88.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 12.4
Main Capacity (L): 47
Main Capacity Uk Gallons: 10.3
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Instrument Cluster 1 Control Type: Wheel
Location: Instrument Cluster 1
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 653
ADR 81/02 Calculated Vehicle Range (miles): 406
ADR 81/02 Combined (km/L): 13.9
ADR 81/02 Combined (L/100km): 7.2
ADR 81/02 Combined (miles per UK gallon): 39
ADR 81/02 Combined (mpg): 33
ADR 81/02 Country Highway (km/L): 17.5
ADR 81/02 Country Highway (L/100km): 5.7
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.2
ADR 81/02 Urban (L/100km): 9.8
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 7.2
Performance
Maximum Speed (km/h): 175
Maximum Speed (mph): 109
Power
Maximum Power (hp/PS): 128
Maximum Power (kW): 94
Maximum Torque (Nm): 160
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4600
Drive
Driven Wheels: Front
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Synthetic Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 92
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 92
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.0
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.0
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 39.4
Rear Seat Down (L): 1115
Rear Seat Up to Lower Window (cu ft): 14.9
Rear Seat Up to Lower Window (L): 423
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.2
Front Track (mm): 1555
Ground Clearance Unladen (in): 6.6
Ground Clearance Unladen (mm): 167
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 63.0
Overall Height (mm): 1600
Overall Length (in): 165.4
Overall Length (mm): 4202
Overall Width (in): 70.8
Overall Width (mm): 1798
Rear Track (in): 61.2
Rear Track (mm): 1555
Wheelbase (in): 102.4
Wheelbase (mm): 2600
Ramp Angles
Approach Angle: 20.8
Departure Angle: 28.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: X100
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1000
Gross Trailer Weight Braked (lb): 2205
Gross Trailer Weight Unbraked (kg): 500
Gross Trailer Weight Unbraked (lb): 1102
Gross Vehicle Weight (kg): 1810
Gross Vehicle Weight (lb): 3990
Published Kerb Weight (kg): 1300
Published Kerb Weight (lb): 2866
Tare Weight (kg): 1272
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Date Tested: 20160101
ANCAP Overall: 4.00
ANCAP Pedestrian: Good
ANCAP Rear Crash Protect Head Restraint Rating: Marginal
ANCAP Standard: Ancap
ANCAP Version Tested: Ssangyong Tivoli Lhd 1.6l Diesel
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
