Base
Overview

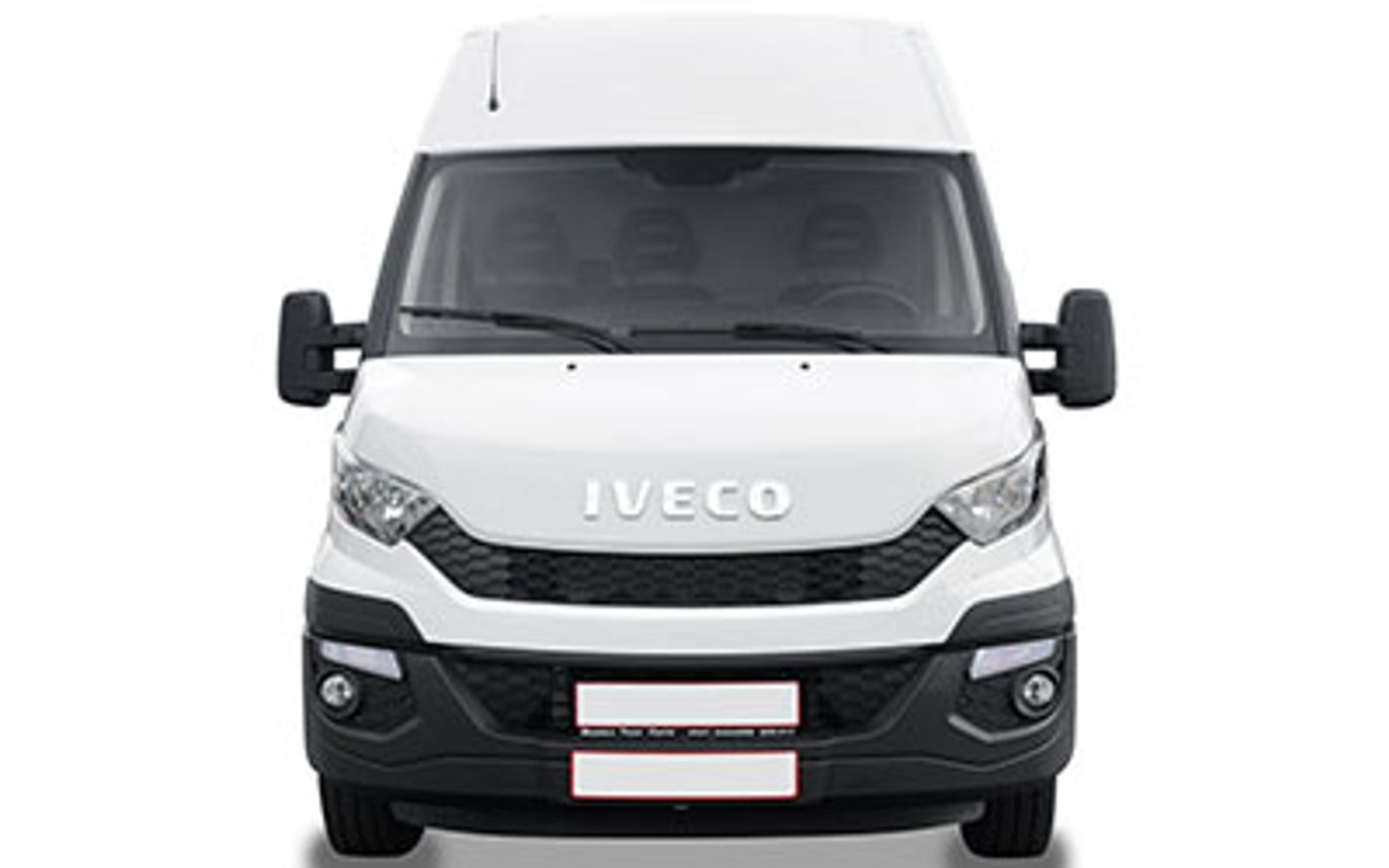

The 2017 Iveco Daily Base is a rear-wheel drive, 4-door Cab Chassis that was released to the Australian market on 3rd February 2018. The Iveco Daily is regarded as a van built in Italy with prices starting at $77,528 before on-road costs.
This Iveco Daily is powered by a 3.0L 4-cylinder engine that has 125 kW of power (at 2900 rpm) and 430 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
It requires a service every 12 months or 40,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.
Ready to take the next step?
Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.
How does the Daily compare?
Quickly see how the 2017 Iveco Daily Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
38.4 - 61.91 kW/t
38.4 kW/t
61.91 kW/t
Price
$56,106 - $118,180
$52,255
$118,180.66
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
200,000 km
100,000 km
Unlimited
Years on Sale
1 - 5 years
1 year
5 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,550 - 7,200 kg
3,550 kg
7,200 kg
Gross Comb. Mass
7,000 - 10,700 kg
4,250 kg
10,700 kg
Braked Towing Capacity
3,200 - 3,500 kg
1,800 kg
3,500 kg
Approach Angle
48°
48°
Departure Angle
39°
39°
Ground Clearance Unladen
165 - 255 mm
165 mm
255 mm
Payload Capacity
1,315 - 4,838 kg
1,025 kg
4,838 kg
Ready to take the next step?
Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.
Dimensions
2,052 mm
| Specification | Measurement |
|---|---|
| Overall Width | 2,052 mm |
| Wheelbase | 5,100 mm |
| Load Capacity | 4,235 mm |
Looking for complete Iveco Daily size & space specs?
Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Iveco Daily Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Power Outlet 12V
Location (12V): Front
Compressor
Compressor: Turbo
Number of Compressors: 1
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 95.8
Engine (cc): 2998
Engine Configuration: In-Line
Engine Code: F1cfl411h
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Capacity Uk Gallons: 22.0
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 430
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 2900
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Rear
Drive
Driven Wheels: Rear
Transmission
Code: Fpt 2840.6 Od
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 121
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: R
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 120
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: R
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Rear Axle 1 Dual Wheel: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Cab Chassis
Cab Type: Double Cab
Local Body Type: Cab Chassis
Platform Code: X70
Roof Type: Standard
Wheelbase Type: Extra Long
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
External Dimensions
Front Track (in): 67.9
Front Track (mm): 1725
Overall Width (in): 80.8
Overall Width (mm): 2052
Rear Overhang (in): 83.9
Rear Overhang (mm): 2130
Rear Track (in): 65.4
Rear Track (mm): 1660
Wheelbase (in): 200.8
Wheelbase (mm): 5100
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Sliding
Location: Passenger
Passenger Type: Sliding
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 2500
Front Axle Weight (lb): 5512
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 10200
Gross Train Weight (lb): 22487
Gross Vehicle Weight (kg): 6700
Gross Vehicle Weight (lb): 14771
Kerb Weight Inc Driver (kg): 2465
Kerb Weight Inc Driver (lb): 5434
Kerb Weight Includes Driver: yes
Manufacturer Driver Weight (kg): 75
Manufacturer Driver Weight (lb): 165
Payload Allowance (kg): 4235
Payload Allowance (lb): 9337
Payload Inc Driver (kg): 4310
Payload Inc Driver (lb): 9502
Published Kerb Weight (kg): 2465
Published Kerb Weight (lb): 5434
Rear Axle Weight (kg): 5350
Rear Axle Weight (lb): 11795
Tare Weight (kg): 2389
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 4
Rear Seat Belts
Center Seat Position: Centre
Center Type: lap
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Curtain Airbag
Location: Front
Front Seat
Center Front Seat Folding: yes
Location: Centre
Center Front Seat Seat Folds To Table: yes
Center Front Seat Type: Bench
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Front Seat Center Armrest
Center Front Seat Armrest Folding: yes
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 7
Configuration: 3+4
Below Seat Storage
Location: Passenger
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 40000
Distance (miles): 24855
Period (Months): 12
