    Iveco Daily Base (2017) price & specs

    3.0L Diesel4D Panel Van6 SP MANUALRWD

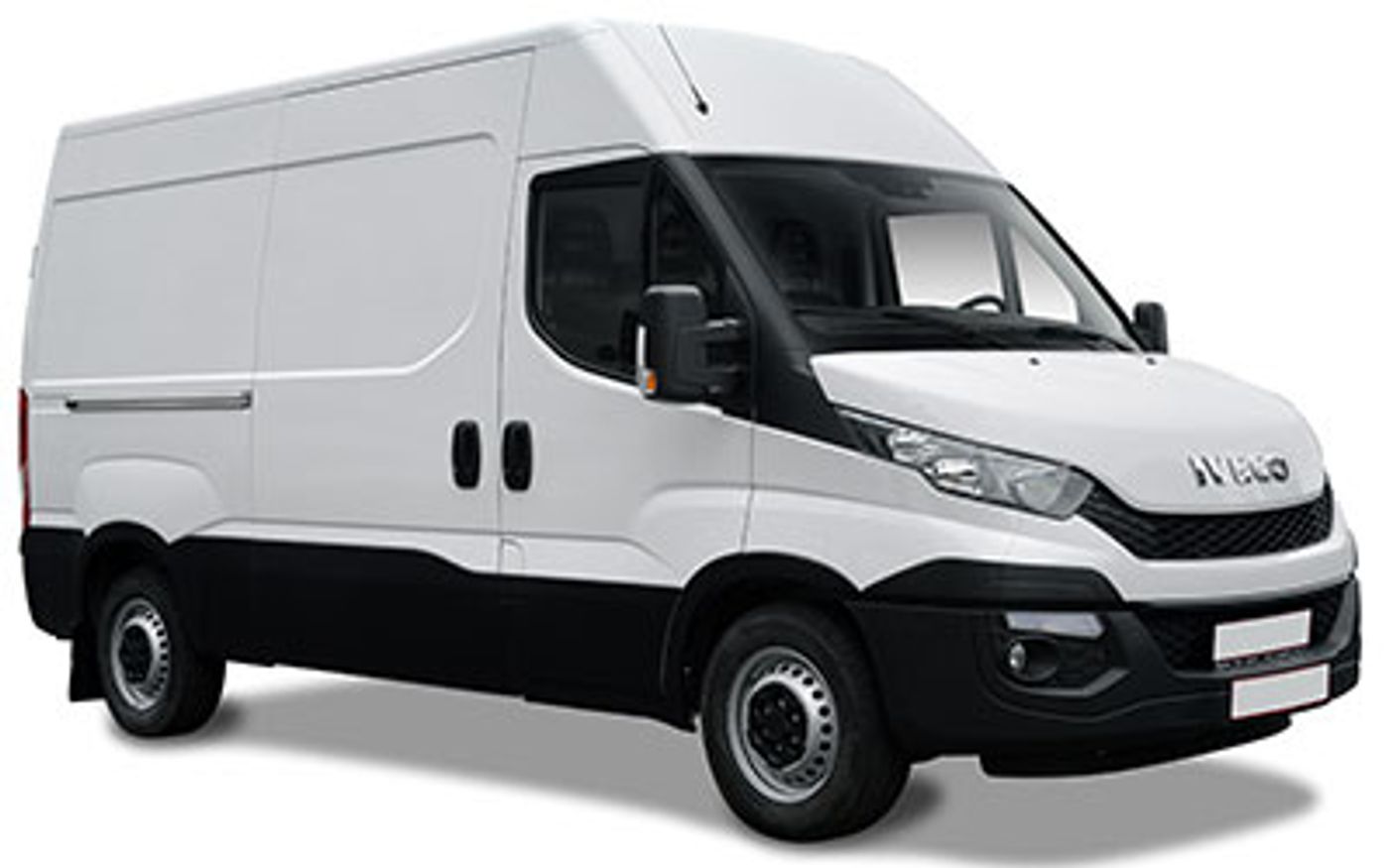

    Hero image of a new Iveco Daily Base (2017) price & specs available with CarExpert deals.

    Base

    Find a deal

    Overview

    The 2017 Iveco Daily Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Iveco Daily is regarded as a van built in Italy with prices starting at $76,010 before on-road costs.

    This Iveco Daily is powered by a 3.0L 4-cylinder engine that has 132 kW of power (at 2900 rpm) and 430 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank

    The Iveco Daily measures 2780mm (109.4 inches) in height, 7228mm (284.6 inches) in length, 2010mm (79.1 inches) in width with a 4100mm (161.4 inches) wheelbase that brings about a total of 2820kg (6217.0 lbs) of unladen weight. The Daily Base comes standard with 225/75 R16 front tyres and 225/75 R16 rear tyres. It requires a service every 12 months or 40,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    How does the Daily compare?

    Quickly see how the 2017 Iveco Daily Base stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    38.4 - 61.91 kW/t
    38.4 kW/t
    61.91 kW/t
    Price
    $56,106 - $118,180
    $52,255
    $118,180.66
    Warranty (Years)
    3 years
    3 years
    5 years
    Warranty (Distance)
    200,000 km
    100,000 km
    Unlimited
    Years on Sale
    1 - 5 years
    1 year
    5 years
    Service Interval
    12 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    3,550 - 7,200 kg
    3,550 kg
    7,200 kg
    Gross Comb. Mass
    7,000 - 10,700 kg
    4,250 kg
    10,700 kg
    Braked Towing Capacity
    3,200 - 3,500 kg
    1,800 kg
    3,500 kg
    Approach Angle
    48°
    48°
    Departure Angle
    39°
    39°
    Ground Clearance Unladen
    165 - 255 mm
    165 mm
    255 mm
    Payload Capacity
    1,315 - 4,838 kg
    1,025 kg
    4,838 kg

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    Dimensions

    7,228 mm
    2,010 mm
    2,780 mm
    SpecificationMeasurement
    Overall Length7,228 mm
    Overall Width2,010 mm
    Overall Height2,780 mm
    Wheelbase4,100 mm
    Load Capacity4,180 mm

    Looking for complete Iveco Daily size & space specs?

    Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Iveco Daily Features & Specs

    Base

    3.0L, 6-speed manual, 4-door Panel Van, Diesel, RWD

    Find a deal

    Compressor

    Compressor: Turbo
    Number of Compressors: 1

    Emission Control Level

    Standard Met: EU6

    Engine

    Bore Engine: 95.8
    Engine (cc): 2998
    Engine Configuration: In-Line
    Engine Code: F1cfl411w_E
    Engine (L): 3.0
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 104.0

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 26.4
    Main Capacity (L): 100
    Main Capacity Uk Gallons: 22.0
    Main Type: Total

    Interested in buying a Iveco Daily Base?

    Better deals with CarExpert
    From
    Find a deal

    Fuel Consumption

    ADR 81/02 Standard: Adr 81/02

    Power

    Maximum Power (hp/PS): 180
    Maximum Power (kW): 132
    Maximum Torque (Nm): 430
    Measurement Standard: EEC
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 2900
    Rpm For Maximum Torque Low: 1500

    Differential Lock

    Location: Rear

    Drive

    Driven Wheels: Rear

    Transmission

    Code: Fpt 2840.6 Od
    Description: Manual
    Number of Speeds: 6
    Type: Manual

    Disc Brakes

    Number of Disc Brakes: 4

    Power Steering

    Type: Hydraulic

    Steering Wheel

    Telescopic Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Torsion
    Front Stabilizer Bar: yes
    Front Type: Wishbone
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Stabilizer Bar: yes
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Front Wheels Tire Load Index: 121
    Location: Front
    Front Wheels Tire Profile: 75
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 225
    Rear Wheels Tire Load Index: 120
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 75
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 225

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 6.0
    Location: 1
    Rear Axle 1 Dual Wheel: yes
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 6.0

    Body Style

    Body Type: Panel Van
    Cab Type: Single Cab
    Local Body Type: Panel Van
    Platform Code: X70
    Roof Type: Semi-High
    Wheelbase Type: Long

    Step

    Step Location: Rear
    Rear Step Type: Platform

    Bumpers

    Front Bumper Colour: Black
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear

    Cargo Area Dimensions

    Cargo Volume (cu ft): 565.0
    Cargo Volume (L): 16000
    Height (in): 74.8
    Height (mm): 1900
    Length (in): 184.3
    Length (mm): 4680
    Standard Measurement: Manufacturer'S Own
    Width Between Wheelhouses (in): 40.6
    Width Between Wheelhouses (mm): 1032
    Width (in): 70.9
    Width (mm): 1800

    External Dimensions

    Front Overhang (in): 39.7
    Front Overhang (mm): 1008
    Overall Height (in): 109.4
    Overall Height (mm): 2780
    Overall Length (in): 284.6
    Overall Length (mm): 7228
    Overall Width (in): 79.1
    Overall Width (mm): 2010
    Rear Overhang (in): 83.5
    Rear Overhang (mm): 2120
    Rear Track (in): 65.4
    Rear Track (mm): 1660
    Wheelbase (in): 161.4
    Wheelbase (mm): 4100

    Cargo Doors

    Driver Internal Handles: yes
    Driver Location: Driver
    Driver Operation: Sliding
    Passenger Height (in): 70.9
    Passenger Height (mm): 1800
    Location: Passenger
    Passenger Operation: Sliding
    Passenger Width (in): 49.6
    Passenger Width (mm): 1260
    Rear Height (in): 70.9
    Rear Height (mm): 1800
    Location: Rear
    Rear Opening Angle: 270
    Rear Operation: Double Hinged
    Rear Width (in): 60.2
    Rear Width (mm): 1530

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Sliding

    Headlight Control

    Height Adjustment: Manual

    Headlights

    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Complex Surface

    Paint

    External Colour: White
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Rear Side Windows

    Location: Driver
    Location: Passenger
    Passenger Type: Sliding

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Fixed

    Weights

    Front Axle Weight (kg): 2500
    Front Axle Weight (lb): 5512
    Gross Trailer Weight Braked (kg): 3500
    Gross Trailer Weight Braked (lb): 7716
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Train Weight (kg): 10500
    Gross Train Weight (lb): 23149
    Gross Vehicle Weight (kg): 7000
    Gross Vehicle Weight (lb): 15432
    Payload Allowance (kg): 4180
    Payload Allowance (lb): 9215
    Published Kerb Weight (kg): 2820
    Published Kerb Weight (lb): 6217
    Rear Axle Weight (kg): 5350
    Rear Axle Weight (lb): 11795
    Tare Weight (kg): 2744

    Audio System

    CD Player Reads MP3: yes
    Digital Radio: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 4

    Bulkhead

    Solid Bulkhead Height: Full
    Type: Solid
    Solid Bulkhead Width: Full
    Solid Bulkhead Window: yes

    Overall Bulkhead Size

    Full Height: yes
    Full Width: yes

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Navigational Systems

    Information Type: 3d And Voice
    Traffic Info: yes

    Parking Distance System

    Location: Rear
    Rear Type: Camera

    Power Outlet 12V

    Location (12V): Front

    Display Screen

    Number of Screens: 1
    Screen Size (in): 7.0
    Touch Screen: yes

    Floor Covering

    Vehicle Cab Compartment: Plastic/Rubber

    Airbags

    Number of Airbags: 4

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Center Seat Position: Center
    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats

    Side Curtain Airbag

    Location: Front

    Front Seat

    Location: Centre
    Center Front Seat Type: Bench
    Driver Front Seat Height Adjustment: yes
    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Lumbar Adjustment: yes
    Driver Front Seat Type: Bucket
    Passenger Front Seat Fore/Aft Adjustment: yes
    Passenger Front Seat Height Adjustment: yes
    Location: Passenger
    Passenger Front Seat Lumbar Adjustment: yes
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bench

    Front Seat Center Armrest

    Center Front Seat Armrest Folding: yes

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 3
    Configuration: 3+0

    Cup Holders

    Location: Front Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 40000
    Distance (miles): 24855
    Period (Months): 12
