Base
3.0L, 6-speed manual, 2-door Cab Chassis, Diesel, 4x4
Save $$$ with CarExpert*
$99,000†

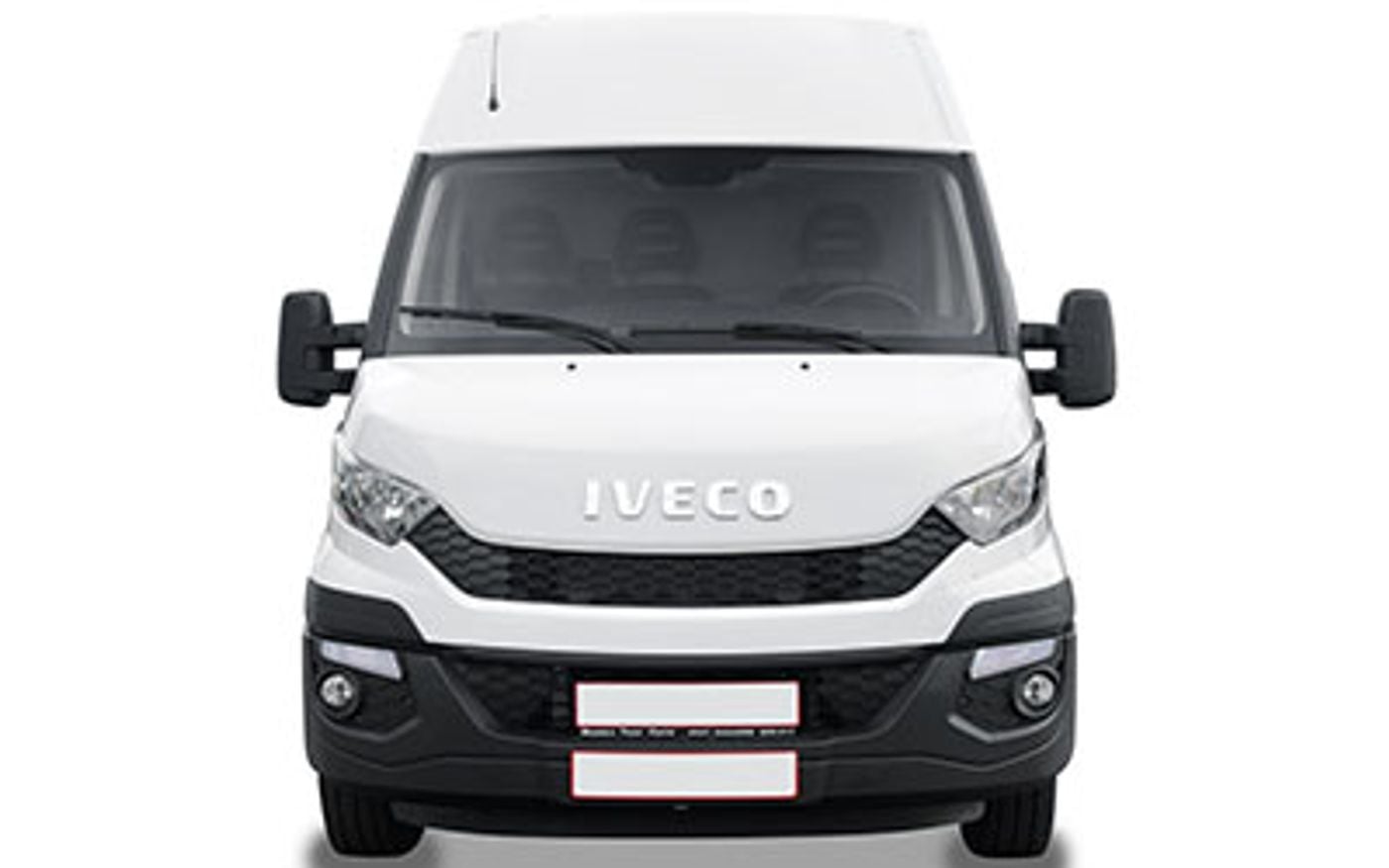

Iveco Daily Base (2017) price & specs
Save $$$ with CarExpert*
From
$99,000†
Base
Overview
The 2017 Iveco Daily Base is a four-wheel drive, 2-door Cab Chassis that was released to the Australian market on 2nd March 2017. The Iveco Daily is regarded as a Van Over 3.5t built in Italy with prices starting at $99,000 before on-road costs.
This Iveco Daily is powered by a 3.0L 4-cylinder engine that has 125 kW of power and 400 Nm of torque (at 1250 rpm) via a Six-speed Manual transmission. It has a 90L fuel tank
The Iveco Daily measures 2597mm (102.2 inches) in height, 5420mm (213.4 inches) in length, 2056mm (80.9 inches) in width with a 3400mm (133.9 inches) wheelbase that brings about a total of 2700kg (5952.5 lbs) of unladen weight. The Daily Base comes standard with 241/80 R17.5 front tyres and 241/80 R17.5 rear tyres. It requires a service every 12 months or 40,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.
The 2017 Iveco Daily Base has a 255mm ground clearance with a 3500kg braked and nullkg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Daily compare?
Quickly see how the 2017 Iveco Daily Base stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
38.4 - 61.91 kW/t
38.4 kW/t
61.91 kW/t
Price
$50,710 - $110,943
$47,680
$110,943
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
200,000 km
100,000 km
Unlimited
Years on Sale
1 - 5 years
1 year
5 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,550 - 7,200 kg
3,550 kg
7,200 kg
Gross Comb. Mass
7,000 - 10,700 kg
4,250 kg
10,700 kg
Braked Towing Capacity
3,200 - 3,500 kg
1,800 kg
3,500 kg
Approach Angle
48°
48°
Departure Angle
39°
39°
Ground Clearance Unladen
165 - 255 mm
165 mm
255 mm
Payload Capacity
1,315 - 4,838 kg
1,025 kg
4,838 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,420 mm
2,056 mm
2,597 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,420 mm |
| Overall Width | 2,056 mm |
| Overall Height | 2,597 mm |
| Wheelbase | 3,400 mm |
| Turning Circle | 13,406 mm |
| Load Capacity | 1,795 mm |
Looking for complete Iveco Daily size & space specs?
Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Iveco Daily Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU6
Engine
Bore Engine: 95.8
Engine (cc): 2998
Engine Configuration: In-Line
Engine Code: F1cfl411f
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Capacity Uk Gallons: 19.8
Main Type: Total
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 400
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Torque Low: 1250
Differential Lock
Location: Centre
Location: Front
Location: Rear
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Transmission
Description: Manual
Low High Gear Ranges: yes
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Steering Wheel
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 80
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 241
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 80
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 241
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17.5
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 17.5
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
External Dimensions
Kerb to Kerb Turning Circle (mm): 13406
Front Track (in): 65.7
Front Track (mm): 1670
Ground Clearance Unladen (in): 10.0
Ground Clearance Unladen (mm): 255
Kerb To Kerb Turning Circle (ft): 44.0
Overall Height (in): 102.2
Overall Height (mm): 2597
Overall Length (in): 213.4
Overall Length (mm): 5420
Overall Width (in): 80.9
Overall Width (mm): 2056
Rear Overhang (in): 44.1
Rear Overhang (mm): 1120
Rear Track (in): 65.7
Rear Track (mm): 1670
Wall to Wall Turning Circle (ft): 47.4
Wall to Wall Turning Circle (mm): 14434
Wheelbase (in): 133.9
Wheelbase (mm): 3400
Ramp Angles
Approach Angle: 48.0
Departure Angle: 39.0
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: X70
Roof Type: Standard
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Weights
Front Axle Weight (kg): 2450
Front Axle Weight (lb): 5401
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Vehicle Weight (kg): 4495
Gross Vehicle Weight (lb): 9910
Payload Allowance (kg): 1795
Payload Allowance (lb): 3957
Published Kerb Weight (kg): 2700
Published Kerb Weight (lb): 5953
Rear Axle Weight (kg): 3700
Rear Axle Weight (lb): 8157
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Remote Audio Controls
Type: Steering Wheel Mounted
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 40000
Distance (miles): 24855
Period (Months): 12
