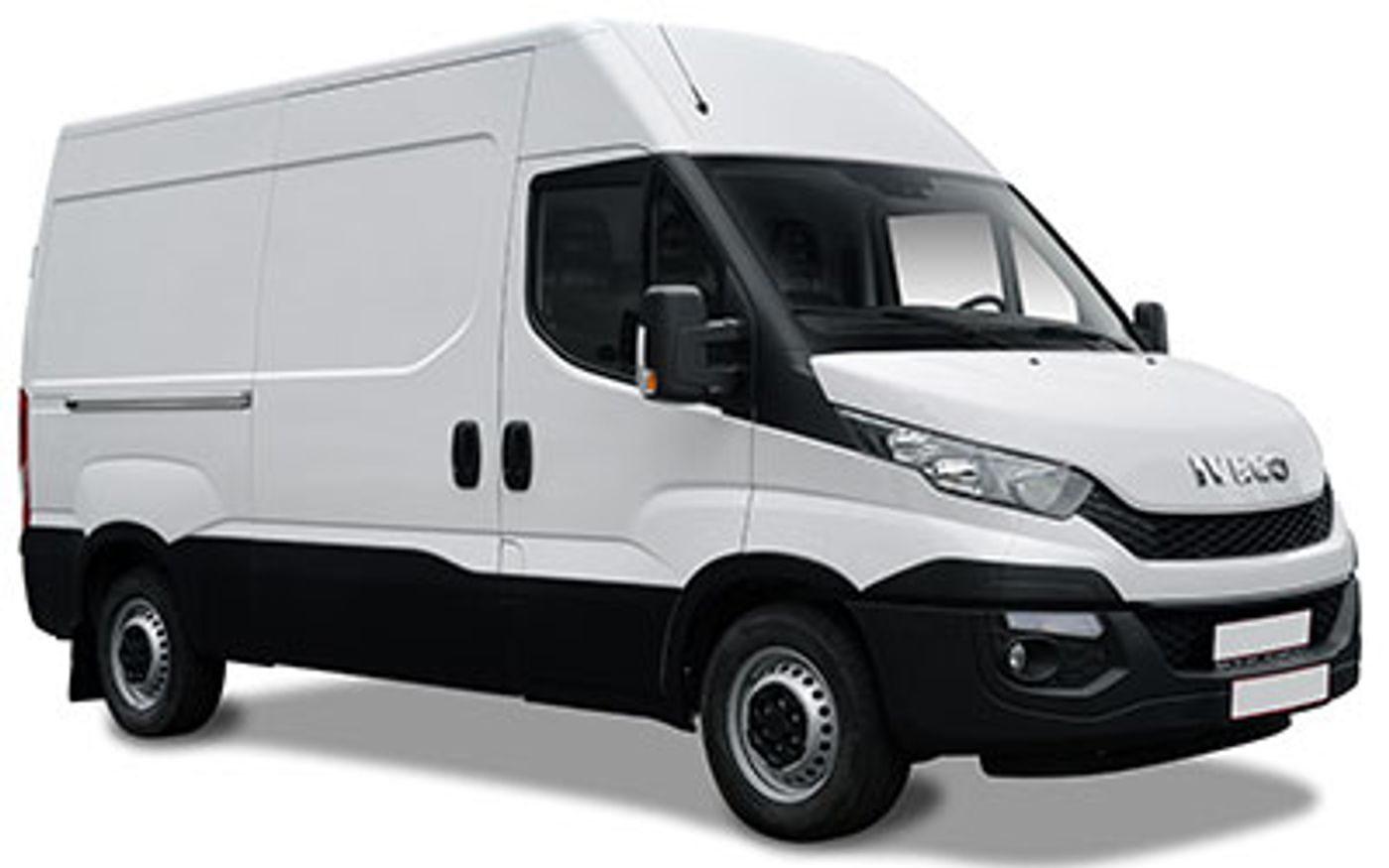

Iveco Daily Base (2017) price & specs
Base
Overview
The 2017 Iveco Daily Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd March 2017. The Iveco Daily is regarded as a Van Over 3.5t built in Italy with prices starting at $67,535 before on-road costs.
This Iveco Daily is powered by a 3.0L 4-cylinder engine that has 125 kW of power (at 2900 rpm) and 430 Nm of torque (at 1500 rpm) via an Eight-speed Automatic transmission. It has a 100L fuel tank
The Iveco Daily measures 2700mm (106.3 inches) in height, 5648mm (222.4 inches) in length, 2010mm (79.1 inches) in width with a 3520mm (138.6 inches) wheelbase that brings about a total of 2414kg (5322.0 lbs) of unladen weight. The Daily Base comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It requires a service every 12 months or 40,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Daily compare?
Quickly see how the 2017 Iveco Daily Base stacks up against its competition.
Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 5,648 mm |
| Overall Width | 2,010 mm |
| Overall Height | 2,700 mm |
| Wheelbase | 3,520 mm |
| Turning Circle | 12,744 mm |
| Load Capacity | 2,081 mm |
Looking for complete Iveco Daily size & space specs?
Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Iveco Daily Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 95.8
Engine (cc): 2998
Engine Configuration: In-Line
Engine Code: F1cfl411g
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Capacity Uk Gallons: 22.0
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 430
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 2900
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Rear
Drive
Driven Wheels: Rear
Transmission
Code: Zf 8v470a
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 8
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 110
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Load Index: 108
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.0
Location: 1
Rear Axle 1 Dual Wheel: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.0
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: X70
Roof Type: Semi-High
Wheelbase Type: Medium
Step
Step Location: Rear
Rear Step Type: Platform
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 381.4
Cargo Volume (L): 10800
Height (in): 74.8
Height (mm): 1740
Length (in): 126.8
Length (mm): 3220
Loading Floor Height (in): 30.3
Loading Floor Height (mm): 770
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 40.6
Width Between Wheelhouses (mm): 1032
Width (in): 68.5
Width (mm): 1740
External Dimensions
Kerb to Kerb Turning Circle (mm): 12744
Front Track (in): 68.5
Front Track (mm): 1740
Kerb To Kerb Turning Circle (ft): 41.8
Overall Height (in): 106.3
Overall Height (mm): 2700
Overall Length (in): 222.4
Overall Length (mm): 5648
Overall Width (in): 79.1
Overall Width (mm): 2010
Rear Overhang (in): 44.1
Rear Overhang (mm): 1120
Rear Track (in): 60.7
Rear Track (mm): 1542
Wall to Wall Turning Circle (ft): 43.9
Wall to Wall Turning Circle (mm): 13366
Wheelbase (in): 138.6
Wheelbase (mm): 3520
Cargo Doors
Driver Location: Driver
Driver Operation: Sliding
Passenger Height (in): 70.9
Passenger Height (mm): 1800
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 49.6
Passenger Width (mm): 1260
Rear Height (in): 70.9
Rear Height (mm): 1800
Location: Rear
Rear Opening Angle: 270
Rear Operation: Double Hinged
Rear Width (in): 60.2
Rear Width (mm): 1530
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 2100
Front Axle Weight (lb): 4630
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 7995
Gross Train Weight (lb): 17626
Gross Vehicle Weight (kg): 4495
Gross Vehicle Weight (lb): 9910
Payload Allowance (kg): 2081
Payload Allowance (lb): 4588
Published Kerb Weight (kg): 2414
Published Kerb Weight (lb): 5322
Rear Axle Weight (kg): 3700
Rear Axle Weight (lb): 8157
Tare Weight (kg): 2338
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Display Screen
Number of Screens: 1
Screen Size (in): 7.0
Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Heated: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Seat Suspension: Mechanical
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bench
Front Seat Center Armrest
Center Front Seat Armrest Folding: yes
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 40000
Distance (miles): 24855
Period (Months): 12
