    Iveco Daily Base (2017) price & specs

    2.3L Diesel4D Panel Van6 SP MANUALRWD

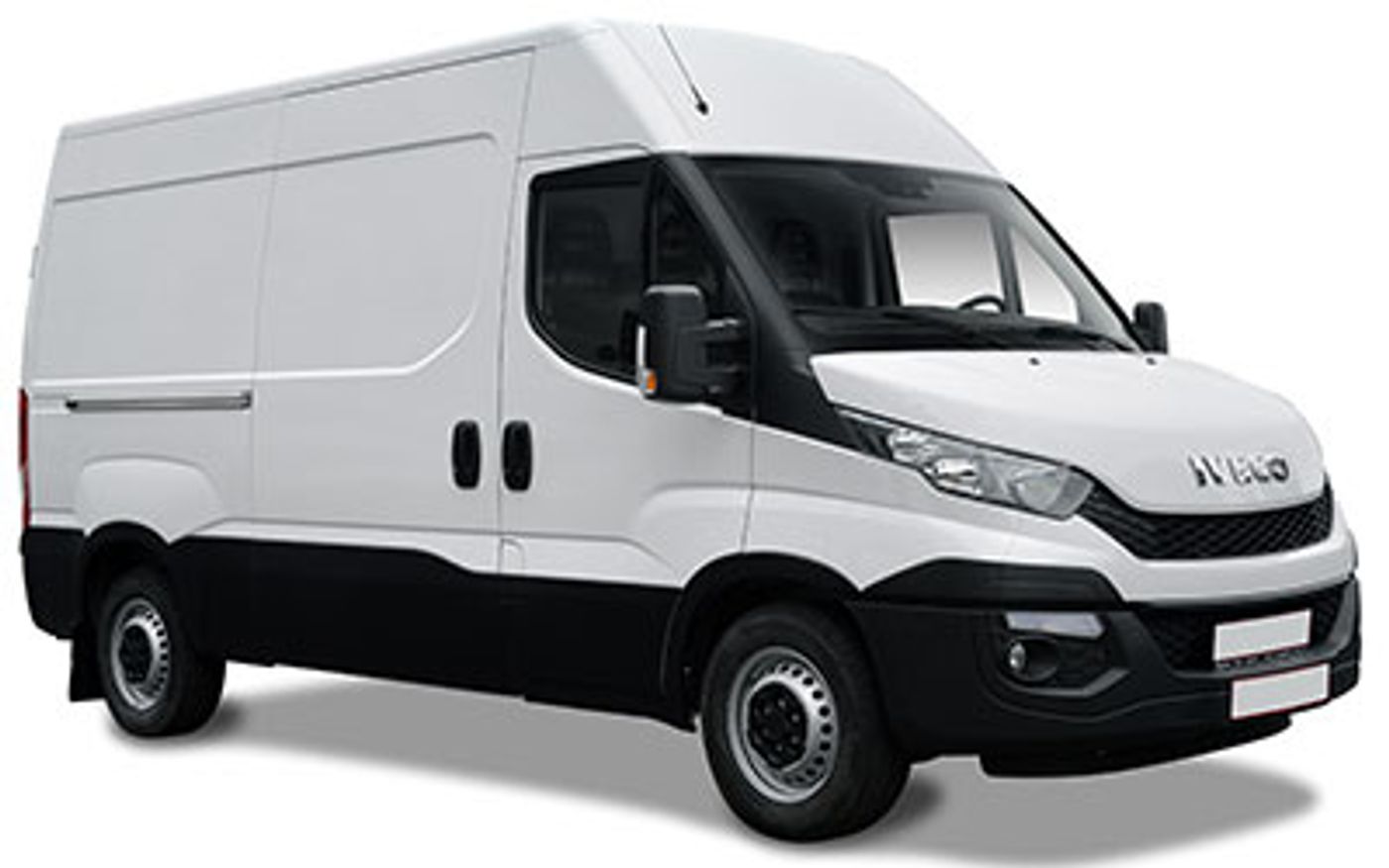

    Hero image of a new Iveco Daily Base (2017) price & specs available with CarExpert deals.

    Base

    Find a deal

    Overview

    The 2017 Iveco Daily Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd March 2017. The Iveco Daily is regarded as a van built in Italy with prices starting at $52,690 before on-road costs.

    This Iveco Daily is powered by a 2.3L 4-cylinder engine that has 93 kW of power (at 3000 rpm) and 320 Nm of torque (at 1800 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank

    The Iveco Daily measures 2200mm (86.6 inches) in height, 5648mm (222.4 inches) in length, 2010mm (79.1 inches) in width with a 3520mm (138.6 inches) wheelbase that brings about a total of 2170kg (4784.0 lbs) of unladen weight. The Daily Base comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It requires a service every 12 months or 40,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    How does the Daily compare?

    Quickly see how the 2017 Iveco Daily Base stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    38.4 - 61.91 kW/t
    38.4 kW/t
    61.91 kW/t
    Price
    $56,106 - $118,180
    $52,255
    $118,180.66
    Warranty (Years)
    3 years
    3 years
    5 years
    Warranty (Distance)
    200,000 km
    100,000 km
    Unlimited
    Years on Sale
    1 - 5 years
    1 year
    5 years
    Service Interval
    12 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    3,550 - 7,200 kg
    3,550 kg
    7,200 kg
    Gross Comb. Mass
    7,000 - 10,700 kg
    4,250 kg
    10,700 kg
    Braked Towing Capacity
    3,200 - 3,500 kg
    1,800 kg
    3,500 kg
    Approach Angle
    48°
    48°
    Departure Angle
    39°
    39°
    Ground Clearance Unladen
    165 - 255 mm
    165 mm
    255 mm
    Payload Capacity
    1,315 - 4,838 kg
    1,025 kg
    4,838 kg

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    Dimensions

    5,648 mm
    2,010 mm
    2,200 mm
    SpecificationMeasurement
    Overall Length5,648 mm
    Overall Width2,010 mm
    Overall Height2,200 mm
    Wheelbase3,520 mm
    Turning Circle12,084 mm
    Load Capacity1,630 mm

    Looking for complete Iveco Daily size & space specs?

    Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Iveco Daily Features & Specs

    Base

    2.3L, 6-speed manual, 4-door Panel Van, Diesel, RWD

    Find a deal

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Driver Modes

    Engine Mapping: yes

    Navigational Systems

    Information Type: 3d And Voice
    Traffic Info: yes

    Parking Distance System

    Location: Rear
    Rear Type: Camera

    Power Outlet 12V

    Location (12V): Front

    Compressor

    Compressor: Turbo

    Emission Control Level

    Standard Met: EU5

    Engine

    Bore Engine: 88.0
    Engine (cc): 2286
    Engine Configuration: In-Line
    Engine Code: F1afl411b
    Engine (L): 2.3
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 94.0
    Valve Gear Type: Double Overhead Cam

    Interested in buying a Iveco Daily Base?

    Better deals with CarExpert
    From
    Find a deal

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 26.4
    Main Capacity (L): 100
    Main Capacity Uk Gallons: 22.0
    Main Type: Total

    Fuel Consumption

    ADR 81/02 Standard: Adr 81/02

    Power

    Maximum Power (hp/PS): 126
    Maximum Power (kW): 93
    Maximum Torque (Nm): 320
    Measurement Standard: EEC
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 3000
    Rpm For Maximum Torque Low: 1800

    Drive

    Driven Wheels: Rear

    Transmission

    Code: Fpt 2835.6 Dod
    Description: Manual
    Number of Speeds: 6
    Type: Manual

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Power Steering

    Type: Hydraulic

    Steering Wheel

    Telescopic Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Leaf
    Front Type: Wishbone
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Stabilizer Bar: yes
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Location: Front
    Front Wheels Tire Profile: 65
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 235
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 65
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 235

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 6.5
    Location: 1
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 6.5

    Body Style

    Body Type: Panel Van
    Cab Type: Single Cab
    Local Body Type: Panel Van
    Platform Code: X70
    Roof Type: Standard
    Wheelbase Type: Medium

    Step

    Step Location: Rear
    Rear Step Type: Platform

    Bumpers

    Front Bumper Colour: Black
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear

    Cargo Area Dimensions

    Cargo Volume (cu ft): 317.8
    Cargo Volume (L): 9000
    Height (in): 60.8
    Height (mm): 1545
    Length (in): 123.2
    Length (mm): 3130
    Loading Floor Height (in): 26.6
    Loading Floor Height (mm): 675
    Standard Measurement: Manufacturer'S Own
    Width Between Wheelhouses (in): 51.9
    Width Between Wheelhouses (mm): 1317
    Width (in): 68.5
    Width (mm): 1740

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 12084
    Front Overhang (in): 39.7
    Front Overhang (mm): 1008
    Front Track (in): 68.5
    Front Track (mm): 1740
    Kerb To Kerb Turning Circle (ft): 39.6
    Overall Height (in): 86.6
    Overall Height (mm): 2200
    Overall Length (in): 222.4
    Overall Length (mm): 5648
    Overall Width (in): 79.1
    Overall Width (mm): 2010
    Rear Overhang (in): 44.1
    Rear Overhang (mm): 1120
    Rear Track (in): 67.1
    Rear Track (mm): 1704
    Wall to Wall Turning Circle (ft): 41.8
    Wall to Wall Turning Circle (mm): 12744
    Wheelbase (in): 138.6
    Wheelbase (mm): 3520

    Cargo Doors

    Driver Location: Driver
    Driver Operation: Sliding
    Passenger Height (in): 56.7
    Passenger Height (mm): 1440
    Location: Passenger
    Passenger Operation: Sliding
    Passenger Width (in): 49.6
    Passenger Width (mm): 1260
    Rear Height (in): 57.1
    Rear Height (mm): 1450
    Location: Rear
    Rear Opening Angle: 270
    Rear Operation: Double Hinged
    Rear Width (in): 60.2
    Rear Width (mm): 1530

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged

    Headlight Control

    Height Adjustment: Manual

    Headlights

    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Complex Surface

    Paint

    External Colour: White
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Fixed

    Weights

    Front Axle Weight (kg): 1900
    Front Axle Weight (lb): 4189
    Gross Trailer Weight Braked (kg): 3200
    Gross Trailer Weight Braked (lb): 7055
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Train Weight (kg): 7000
    Gross Train Weight (lb): 15432
    Gross Vehicle Weight (kg): 3800
    Gross Vehicle Weight (lb): 8378
    Payload Allowance (kg): 1630
    Payload Allowance (lb): 3594
    Published Kerb Weight (kg): 2170
    Published Kerb Weight (lb): 4784
    Rear Axle Weight (kg): 2430
    Rear Axle Weight (lb): 5357
    Tare Weight (kg): 2094

    Audio System

    CD Player Reads MP3: yes
    Colour Screen: yes
    In-Dash CD: yes
    Radio Type: Am/Fm
    Touch Screen: yes

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 4

    Bulkhead

    Solid Bulkhead Height: Full
    Type: Solid
    Solid Bulkhead Width: Full
    Solid Bulkhead Window: yes

    Overall Bulkhead Size

    Full Height: yes
    Full Width: yes

    Display Screen

    Number of Screens: 1
    Screen Size (in): 7.0
    Touch Screen: yes

    Floor Covering

    Vehicle Cab Compartment: Plastic/Rubber

    Airbags

    Number of Airbags: 4

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Center Seat Position: Center
    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats

    Side Curtain Airbag

    Location: Front

    Front Seat

    Location: Centre
    Center Front Seat Type: Bench
    Driver Front Seat Height Adjustment: yes
    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Lumbar Adjustment: yes
    Driver Front Seat Lumbar Type: Manual
    Driver Front Seat Seat Suspension: Mechanical
    Driver Front Seat Type: Bucket
    Passenger Front Seat Fore/Aft Adjustment: yes
    Passenger Front Seat Height Adjustment: yes
    Location: Passenger
    Passenger Front Seat Lumbar Adjustment: yes
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bench

    Front Seat Center Armrest

    Center Front Seat Armrest Folding: yes

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 3
    Configuration: 3+0

    Cup Holders

    Location: Front Seats

    Air Conditioning

    Type: Fully-Auto

    Ventilation System

    Digital Display: yes

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 40000
    Distance (miles): 24855
    Period (Months): 12
