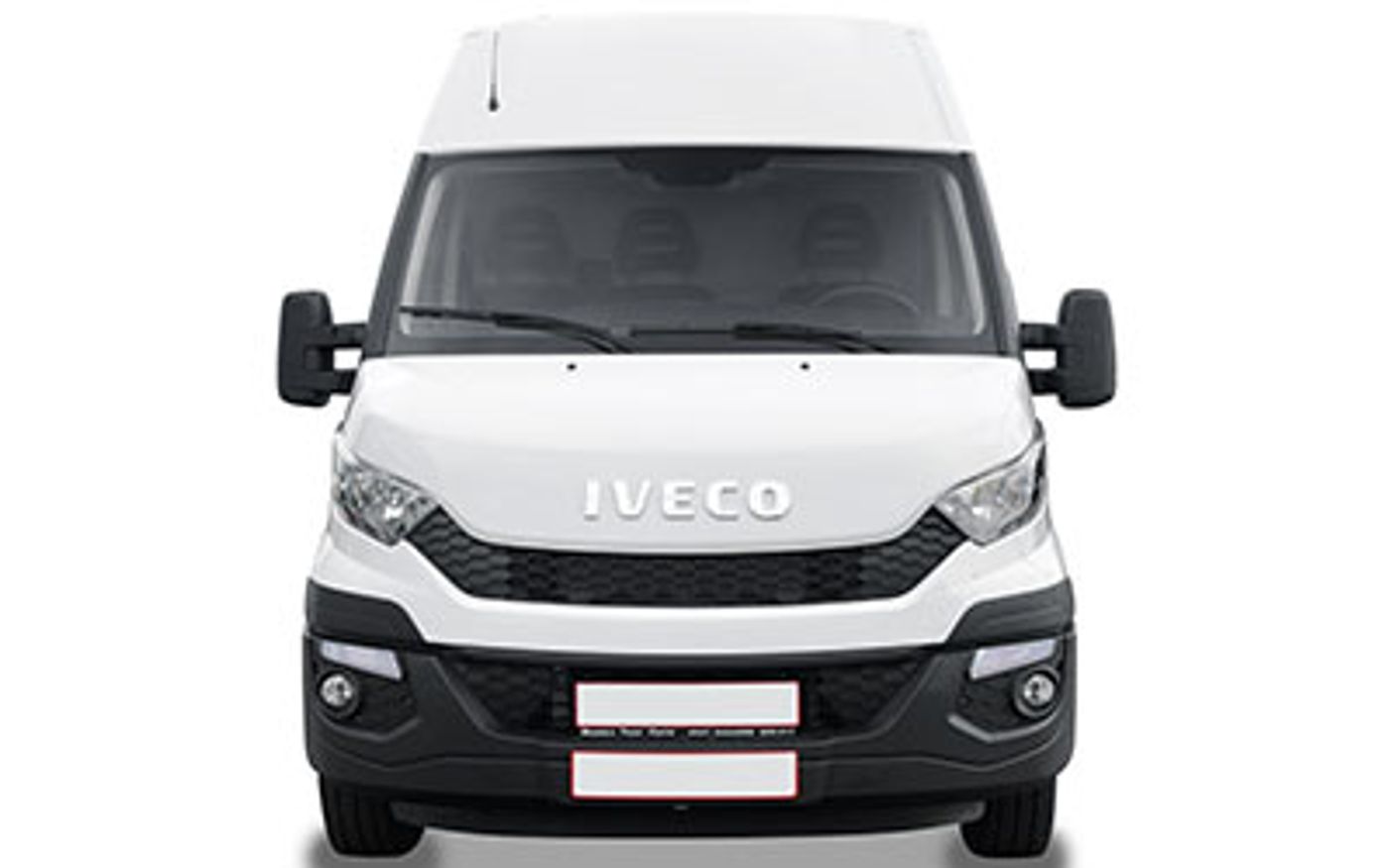

Iveco Daily Base (2014) price & specs
From
$67,933â€
Save thousands with CarExpert*
Base
Overview
The 2014 Iveco Daily Base is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. The Iveco Daily is regarded as a Van Over 3.5t built in Italy with prices starting at $67,933 before on-road costs.
This Iveco Daily is powered by a 3.0L 4-cylinder engine that has 125 kW of power (at 2900 rpm) and 430 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
It requires a service every 12 months or 40,000 km, whichever comes first. It has a 36 month, 200,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Daily compare?
Quickly see how the 2014 Iveco Daily Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
38.4 - 61.01 kW/t
32.97 kW/t
66.67 kW/t
Price
$49,501 - $103,400
$38,000
$103,400
Warranty (Years)
3 years
3 years
Warranty (Distance)
200,000 km
200,000 km
Unlimited
Years on Sale
1 - 5 years
1 year
5 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,800 - 7,000 kg
3,510 kg
7,000 kg
Gross Comb. Mass
7,000 - 10,500 kg
5,550 kg
10,500 kg
Braked Towing Capacity
3,500 kg
2,000 kg
3,500 kg
Approach Angle
48°
48°
Departure Angle
39°
39°
Ground Clearance Unladen
165 - 177 mm
165 mm
219 mm
Payload Capacity
1,378 - 4,638 kg
945 kg
4,638 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
7,373 mm
2,052 mm
| Specification | Measurement |
|---|---|
| Overall Length | 7,373 mm |
| Overall Width | 2,052 mm |
| Wheelbase | 4,350 mm |
| Turning Circle | 14,866 mm |
| Load Capacity | 4,582 mm |
Looking for complete Iveco Daily size & space specs?
Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Iveco Daily Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Power Outlet 12V
Location (12V): Front
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 95.8
Engine (cc): 2998
Engine Configuration: In-Line
Engine Code: F1cfl411h
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Capacity Uk Gallons: 22.0
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 170
Maximum Power (kW): 125
Maximum Torque (Nm): 430
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 2900
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Rear
Drive
Driven Wheels: Rear
Transmission
Code: Fpt 2840.6 Od
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Rear Axle 1 Dual Wheel: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: X70
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Black
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 14866
Front Track (in): 67.9
Front Track (mm): 1725
Kerb To Kerb Turning Circle (ft): 48.8
Overall Length (in): 290.3
Overall Length (mm): 7373
Overall Width (in): 80.8
Overall Width (mm): 2052
Rear Overhang (in): 79.3
Rear Overhang (mm): 2015
Rear Track (in): 65.4
Rear Track (mm): 1660
Wall to Wall Turning Circle (ft): 50.9
Wall to Wall Turning Circle (mm): 15518
Wheelbase (in): 171.3
Wheelbase (mm): 4350
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Blue
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 2500
Front Axle Weight (lb): 5512
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 10500
Gross Train Weight (lb): 23149
Gross Vehicle Weight (kg): 7000
Gross Vehicle Weight (lb): 15432
Payload Allowance (kg): 4582
Payload Allowance (lb): 10102
Published Kerb Weight (kg): 2418
Published Kerb Weight (lb): 5331
Rear Axle Weight (kg): 5350
Rear Axle Weight (lb): 11795
Tare Weight (kg): 2342
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 7.0
Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 40000
Distance (miles): 24855
Period (Months): 12
