Base
Overview

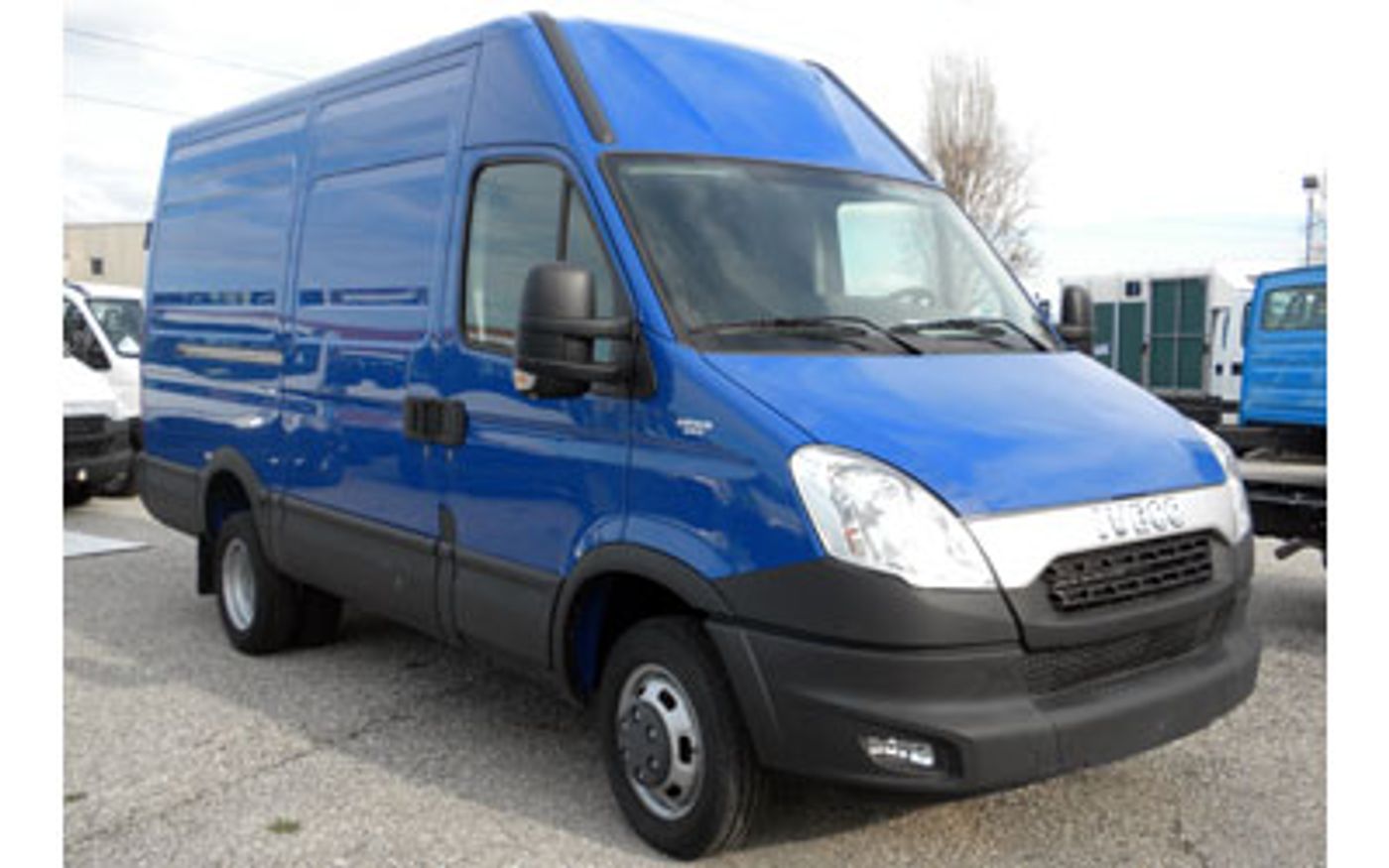

The 2012 Iveco Daily Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd March 2010. The Iveco Daily is regarded as a Van Over 3.5t built in Italy and when it was new had prices starting at .
This Iveco Daily is powered by a 3.0L 4-cylinder engine that has 130 kW of power (at 3200 rpm) and 400 Nm of torque (at 1250 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
The Iveco Daily measures 2930mm (115.4 inches) in height, 7012mm (276.1 inches) in length, 1996mm (78.6 inches) in width with a 3950mm (155.5 inches) wheelbase that brings about a total of 2610kg (5754.1 lbs) of unladen weight. The Daily Base comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It has a 36 month, 200,000 km warranty.
The 2012 Iveco Daily Base has a 195mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Daily compare?
Quickly see how the 2012 Iveco Daily Base stacks up against its competition.
 Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 7,012 mm |
| Overall Width | 1,996 mm |
| Overall Height | 2,930 mm |
| Wheelbase | 3,950 mm |
| Turning Circle | 14,020 mm |
| Load Capacity | 1,885 mm |
Looking for complete Iveco Daily size & space specs?
Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Iveco Daily Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU4
Engine
Bore Engine: 95.8
Engine (cc): 2998
Engine Configuration: In-Line
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Capacity Uk Gallons: 22.0
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 400
Measurement Standard: EEC
Rpm For Maximum Power Low: 3200
Rpm For Maximum Torque Low: 1250
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Automatic Mode: yes
Code: 6as400
Description: Automated Manual Sequential Trans (Amt)
Manual Sequential: yes
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 107
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Extra Load
Front Wheels Tire Width: 195
Rear Wheels Tire Load Index: 107
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Extra Load
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.0
Location: 1
Rear Axle 1 Dual Wheel: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.0
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: X70
Roof Type: Extra-High
Wheelbase Type: Extra Long
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 607.4
Cargo Volume (L): 17200
Height (in): 82.7
Height (mm): 1800
Length (in): 179.5
Length (mm): 4560
Loading Floor Height (in): 30.5
Loading Floor Height (mm): 775
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 40.6
Width Between Wheelhouses (mm): 1030
Width (in): 70.9
Width (mm): 1800
External Dimensions
Kerb to Kerb Turning Circle (mm): 14020
Front Overhang (in): 39.3
Front Overhang (mm): 998
Front Track (in): 66.8
Front Track (mm): 1696
Ground Clearance Unladen (in): 7.7
Ground Clearance Unladen (mm): 195
Kerb To Kerb Turning Circle (ft): 46.0
Overall Height (in): 115.4
Overall Height (mm): 2930
Overall Length (in): 276.1
Overall Length (mm): 7012
Overall Width (in): 78.6
Overall Width (mm): 1996
Rear Overhang (in): 81.3
Rear Overhang (mm): 2064
Rear Track (in): 60.6
Rear Track (mm): 1540
Wall to Wall Turning Circle (ft): 49.7
Wall to Wall Turning Circle (mm): 15140
Wheelbase (in): 155.5
Wheelbase (mm): 3950
Cargo Doors
Driver Location: Driver
Driver Operation: Sliding
Passenger Height (in): 70.1
Passenger Height (mm): 1780
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 49.2
Passenger Width (mm): 1250
Rear Height (in): 78.3
Rear Height (mm): 1990
Location: Rear
Rear Opening Angle: 270
Rear Operation: Double Hinged
Rear Width (in): 60.6
Rear Width (mm): 1540
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1900
Front Axle Weight (lb): 4189
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 4495
Gross Vehicle Weight (lb): 9910
Payload Allowance (kg): 1885
Payload Allowance (lb): 4156
Published Kerb Weight (kg): 2610
Published Kerb Weight (lb): 5754
Rear Axle Weight (kg): 3700
Rear Axle Weight (lb): 8157
Tare Weight (kg): 2534
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Speakers
Number of Speakers: 2
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Front
Luxury Trim
Instrument Panel: Alloy Look
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Semi-Auto
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 40000
Distance (miles): 24855
