    Iveco Daily Base (2012) price & specs

    2.3L Diesel4D Panel Van6 SP MANUALRWD

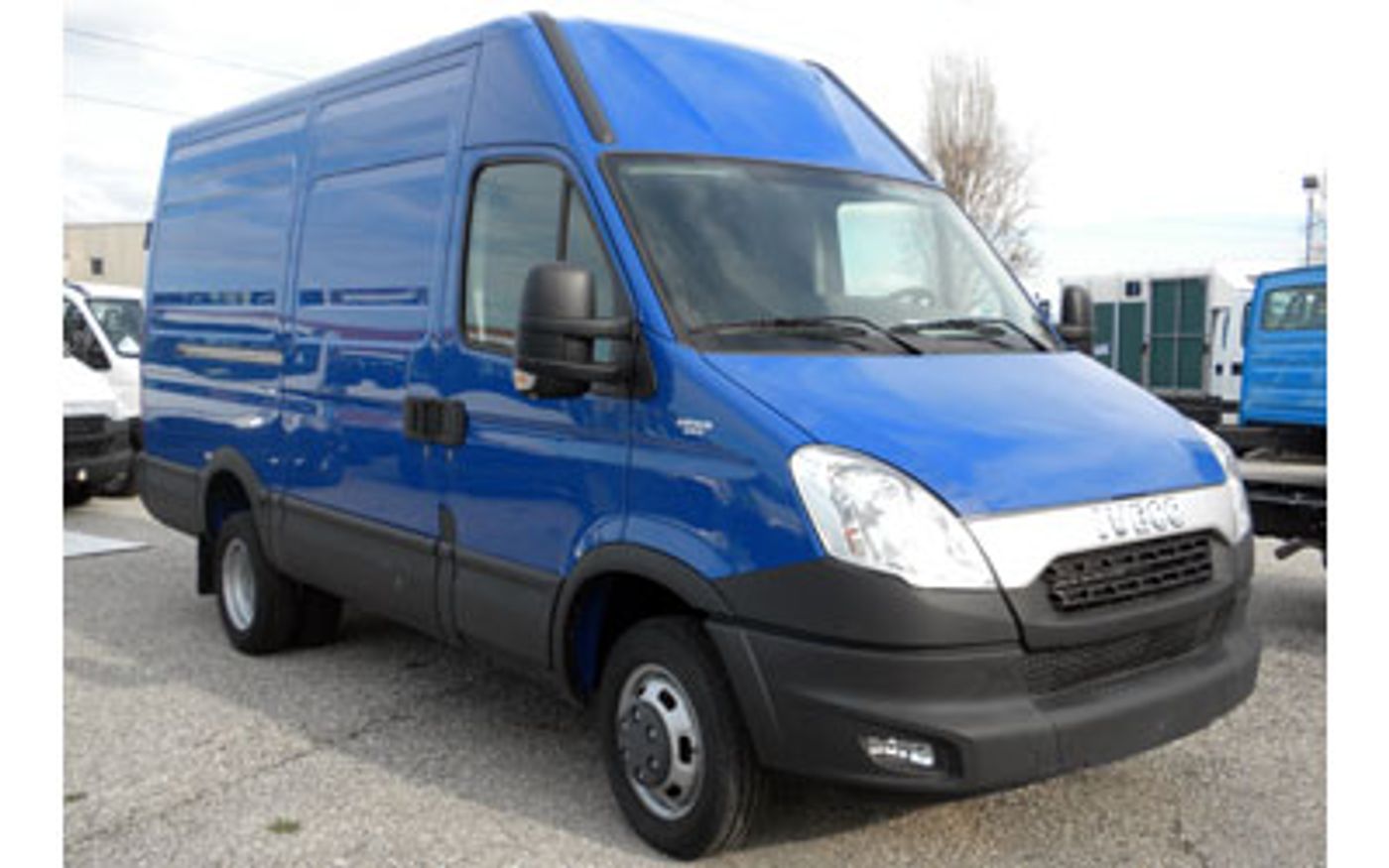

    Hero image of a new Iveco Daily Base (2012) price & specs available with CarExpert deals.

    Base

    Find a deal

    Overview

    The 2012 Iveco Daily Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd March 2010. The Iveco Daily is regarded as a van built in Italy and when it was new had prices starting at .

    This Iveco Daily is powered by a 2.3L 4-cylinder engine that has 107 kW of power (at 3000 rpm) and 350 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. It has a 70L fuel tank

    The Iveco Daily measures 2340mm (92.1 inches) in height, 5478mm (215.7 inches) in length, 1996mm (78.6 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 2040kg (4497.4 lbs) of unladen weight. The Daily Base comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It has a 36 month, 200,000 km warranty.

    The 2012 Iveco Daily Base has a 175mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    How does the Daily compare?

    Quickly see how the 2012 Iveco Daily Base stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    43.45 - 66.23 kW/t
    35.96 kW/t
    66.67 kW/t
    Warranty (Years)
    3 years
    3 years
    Warranty (Distance)
    200,000 km
    100,000 km
    Unlimited
    Years on Sale
    1 - 5 years
    1 year
    5 years

    Towing & Off-Road Capability

    Gross Vehicle Weight
    3,800 - 8,000 kg
    2,800 kg
    8,000 kg
    Gross Comb. Mass
    5,800 - 10,500 kg
    4,500 kg
    10,500 kg
    Braked Towing Capacity
    2,000 - 3,500 kg
    2,000 kg
    3,500 kg
    Ground Clearance Unladen
    165 - 200 mm
    165 mm
    214 mm
    Payload Capacity
    1,520 - 4,705 kg
    1,011 kg
    4,705 kg

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    Dimensions

    5,478 mm
    1,996 mm
    2,340 mm
    SpecificationMeasurement
    Overall Length5,478 mm
    Overall Width1,996 mm
    Overall Height2,340 mm
    Wheelbase3,000 mm
    Turning Circle10,380 mm
    Load Capacity1,760 mm

    Looking for complete Iveco Daily size & space specs?

    Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Iveco Daily Features & Specs

    Base

    2.3L, 6-speed manual, 4-door Panel Van, Diesel, RWD

    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    Standard Met: EU4

    Engine

    Bore Engine: 88.0
    Engine (cc): 2287
    Engine Configuration: In-Line
    Engine (L): 2.3
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 94.0
    Valve Gear Type: Double Overhead Cam

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 18.5
    Main Capacity (L): 70
    Main Capacity Uk Gallons: 15.4
    Main Type: Total

    Interested in buying a Iveco Daily Base?

    Better deals with CarExpert
    From
    Find a deal

    Fuel Consumption

    ADR 81/02 Standard: Adr 81/02

    Power

    Maximum Power (hp/PS): 146
    Maximum Power (kW): 107
    Maximum Torque (Nm): 350
    Measurement Standard: EEC
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 3000
    Rpm For Maximum Torque Low: 1500

    Drive

    Driven Wheels: Rear

    Electronic Traction Control

    Controlled By: Abs & Engine Management

    Transmission

    Automatic Mode: yes
    Code: 6as400
    Description: Automated Manual Sequential Trans (Amt)
    Manual Sequential: yes
    Number of Speeds: 6
    Type: Manual

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Power Steering

    Type: Hydraulic

    Steering Wheel

    Telescopic Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Leaf
    Front Stabilizer Bar: yes
    Front Type: Wishbone
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Stabilizer Bar: yes
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Location: Front
    Front Wheels Tire Profile: 65
    Front Wheels Tire Type: Extra Load
    Front Wheels Tire Width: 235
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 65
    Rear Wheels Tire Type: Extra Load
    Rear Wheels Tire Width: 235

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 6.5
    Location: 1
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 6.5

    Body Style

    Body Type: Panel Van
    Cab Type: Single Cab
    Local Body Type: Panel Van
    Platform Code: X70
    Roof Type: Standard
    Wheelbase Type: Short

    Mud Flaps

    Front Mud Flaps Location: Front
    Rear Mud Flaps Location: Rear

    Step

    Step Location: Rear
    Rear Step Type: Platform

    Bumpers

    Front Bumper Colour: Black
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear

    Cargo Area Dimensions

    Cargo Volume (cu ft): 293.1
    Cargo Volume (L): 8300
    Height (in): 60.8
    Height (mm): 1545
    Length (in): 118.1
    Length (mm): 3000
    Loading Floor Height (in): 27.4
    Loading Floor Height (mm): 695
    Standard Measurement: Manufacturer'S Own
    Width Between Wheelhouses (in): 52.0
    Width Between Wheelhouses (mm): 1320
    Width (in): 70.9
    Width (mm): 1800

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 10380
    Front Overhang (in): 39.3
    Front Overhang (mm): 998
    Front Track (in): 68.5
    Front Track (mm): 1740
    Ground Clearance Unladen (in): 6.9
    Ground Clearance Unladen (mm): 175
    Kerb To Kerb Turning Circle (ft): 34.1
    Overall Height (in): 92.1
    Overall Height (mm): 2340
    Overall Length (in): 215.7
    Overall Length (mm): 5478
    Overall Width (in): 78.6
    Overall Width (mm): 1996
    Rear Overhang (in): 58.2
    Rear Overhang (mm): 1479
    Rear Track (in): 66.5
    Rear Track (mm): 1690
    Wall to Wall Turning Circle (ft): 37.7
    Wall to Wall Turning Circle (mm): 11500
    Wheelbase (in): 118.1
    Wheelbase (mm): 3000

    Cargo Doors

    Driver Location: Driver
    Driver Operation: Sliding
    Passenger Height (in): 55.7
    Passenger Height (mm): 1415
    Location: Passenger
    Passenger Operation: Sliding
    Passenger Width (in): 43.3
    Passenger Width (mm): 1100
    Rear Height (in): 56.3
    Rear Height (mm): 1430
    Location: Rear
    Rear Opening Angle: 270
    Rear Operation: Double Hinged
    Rear Width (in): 60.6
    Rear Width (mm): 1540

    Headlight Control

    Height Adjustment: Manual
    Internal Height Adjustment: yes

    Headlights

    Low Beam Bulb Type: Halogen

    Paint

    External Colour: White
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Fixed

    Weights

    Front Axle Weight (kg): 1800
    Front Axle Weight (lb): 3968
    Gross Trailer Weight Braked (kg): 2000
    Gross Trailer Weight Braked (lb): 4409
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Vehicle Weight (kg): 3800
    Gross Vehicle Weight (lb): 8378
    Payload Allowance (kg): 1760
    Payload Allowance (lb): 3880
    Published Kerb Weight (kg): 2040
    Published Kerb Weight (lb): 4497
    Rear Axle Weight (kg): 2240
    Rear Axle Weight (lb): 4938
    Tare Weight (kg): 1989

    Audio System

    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    USB (Front): yes

    Speakers

    Number of Speakers: 2

    Bulkhead

    Solid Bulkhead Height: Full
    Type: Solid
    Solid Bulkhead Width: Full
    Solid Bulkhead Window: yes

    Overall Bulkhead Size

    Full Height: yes
    Full Width: yes

    Parking Distance System

    Location: Rear
    Rear Type: Sensor

    Power Outlet 12V

    Location (12V): Front

    Luxury Trim

    Instrument Panel: Alloy Look

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Center Seat Position: Center
    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats

    Side Airbag

    Location: Front

    Front Seat

    Location: Centre
    Center Front Seat Type: Bench
    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Type: Bench

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 3
    Configuration: 3+0

    Cup Holders

    Location: Front Seats

    Air Conditioning

    Type: Semi-Auto

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 40000
    Distance (miles): 24855
