Iveco Daily Base (2005) price & specs
Base
Overview

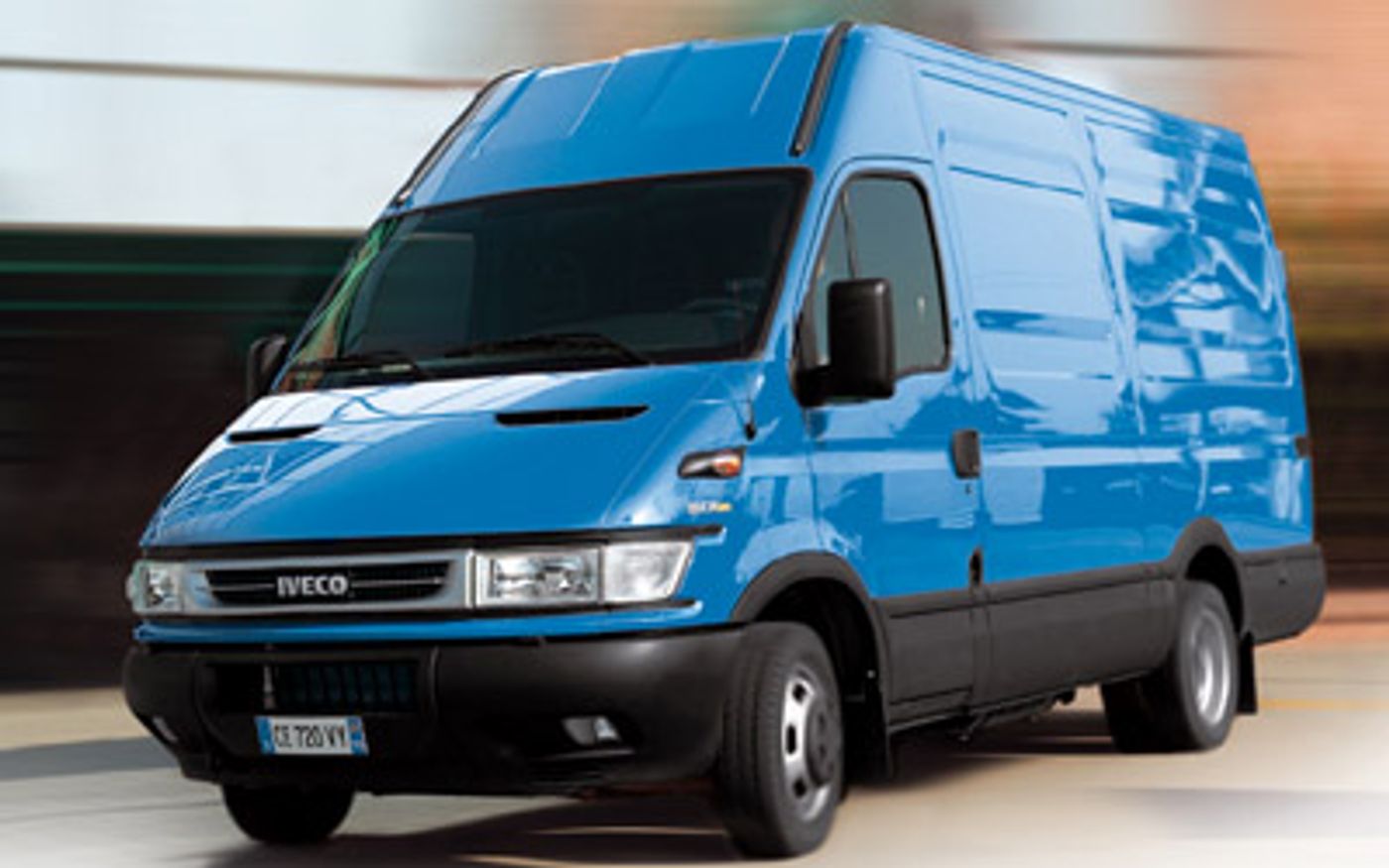

The 2005 Iveco Daily Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Iveco Daily is regarded as a Van Over 3.5t built in Italy with prices starting at $56,152 before on-road costs.
This Iveco Daily is powered by a 3L 4-cylinder engine that has 122 kW of power (at 3500 rpm) and 380 Nm of torque (at 1250 rpm) via a Six-speed Manual transmission. It has a 70L fuel tank
The Iveco Daily measures 2745mm (108.1 inches) in height, 7012mm (276.1 inches) in length, 1996mm (78.6 inches) in width with a 3950mm (155.5 inches) wheelbase that brings about a total of 2485kg (5478.5 lbs) of unladen weight. The Daily Base comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2005 Iveco Daily Base has a 195mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Daily compare?
Quickly see how the 2005 Iveco Daily Base stacks up against its competition.
Select any benchmark to see more details.
Towing & Off-Road Capability
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
| Specification | Measurement |
|---|---|
| Overall Length | 7,012 mm |
| Overall Width | 1,996 mm |
| Overall Height | 2,745 mm |
| Wheelbase | 3,950 mm |
| Turning Circle | 14,020 mm |
| Load Capacity | 2,010 mm |
Looking for complete Iveco Daily size & space specs?
Our Iveco Daily Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Iveco Daily Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 94.4
Engine (cc): 2998
Engine Configuration: In-Line
Engine Code: F1c 3.0i
Engine (L): 3
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 100
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Fuel Type: Diesel
Main Type: Total
Power
Maximum Power (hp/PS): 166
Maximum Power (kW): 122
Maximum Torque (Nm): 380
Measurement Standard: EEC
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1250
Drive
Driven Wheels: Rear
Transmission
Automatic Clutch Manual: yes
Automatic Mode: yes
Description: Automated Manual Sequential Trans (Amt)
Manual Sequential: yes
Number of Speeds: 6
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Width: 195
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5
Rear Axle Location: 1
Rear Axle Dual Wheel: yes
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Panel Van
Roof Type: High
Wheelbase Type: Extra Long
Mud Flaps
Front Mud Flaps Location: Front
Step
Step Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 550.9
Cargo Volume (L): 15600
Height (in): 74.8
Height (mm): 1800
Length (in): 179.5
Length (mm): 4560
Loading Floor Height (in): 30.5
Loading Floor Height (mm): 775
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 40.6
Width Between Wheelhouses (mm): 1030
Width (in): 70.9
Width (mm): 1800
External Dimensions
Kerb to Kerb Turning Circle (mm): 14020
Front Overhang (in): 39.3
Front Overhang (mm): 998
Front Track (in): 66.8
Front Track (mm): 1696
Ground Clearance Unladen (in): 7.7
Ground Clearance Unladen (mm): 195
Kerb To Kerb Turning Circle (ft): 46
Overall Height (in): 108.1
Overall Height (mm): 2745
Overall Length (in): 276.1
Overall Length (mm): 7012
Overall Width (in): 78.6
Overall Width (mm): 1996
Rear Overhang (in): 81.3
Rear Overhang (mm): 2064
Rear Track (in): 60.7
Rear Track (mm): 1541
Wall to Wall Turning Circle (ft): 49.7
Wall to Wall Turning Circle (mm): 15140
Wheelbase (in): 155.5
Wheelbase (mm): 3950
Cargo Doors
Passenger Height (in): 70.1
Passenger Height (mm): 1780
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 49.2
Passenger Width (mm): 1250
Rear Height (in): 70.1
Rear Height (mm): 1780
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 270
Rear Operation: Double Hinged
Rear Width (in): 60.6
Rear Width (mm): 1540
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1900
Front Axle Weight (lb): 4189
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 8700
Gross Train Weight (lb): 19180
Gross Vehicle Weight (kg): 4495
Gross Vehicle Weight (lb): 9910
Payload Allowance (kg): 2010
Payload Allowance (lb): 4431
Published Kerb Weight (kg): 2485
Published Kerb Weight (lb): 5479
Rear Axle Weight (kg): 3700
Rear Axle Weight (lb): 8157
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Load Restraint
Type: Hooks
Cigar Lighter
Location: Front Seats
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Front Seats Number: 3
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Air Conditioning
Fully Automated Climate Control: yes
Anti-Theft Protection
Interior Monitoring: yes
Peripheral: yes
Power Locks
Operation: Remote
