    Hyundai Elantra FX (2003) price & specs

    Save $$$ with CarExpert*
    From
    $21,980†
    2L petrol5D Hatchback4 SP AUTOMATICFWD

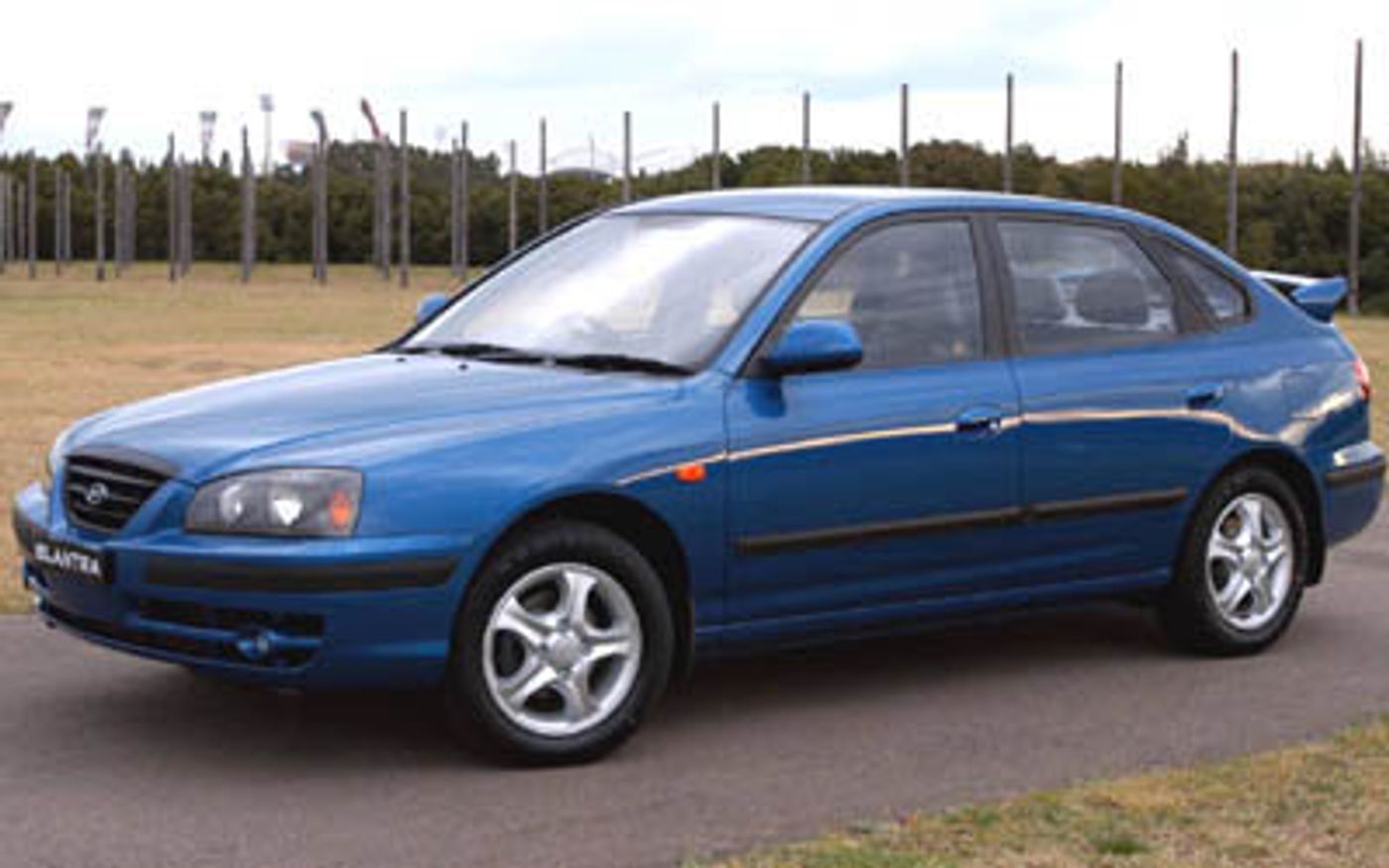

    Hero image of a new Hyundai Elantra FX (2003) price & specs available with CarExpert deals.

    FX

    Find a deal

    Overview

    The 2003 Hyundai Elantra FX is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 4th January 1970. with prices starting at $21,980 before on-road costs.

    This Hyundai Elantra is powered by a 2L 4-cylinder engine that has 105 kW of power (at 6000 rpm) and 186 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. Hyundai claims the Elantra FX uses 9.1L/100km of Unleaded in the combined city and highway cycle while putting out nullg of CO2. It has a 55L fuel tank, meaning it should be able to travel 604km per full tank

    The Hyundai Elantra measures 1425mm (56.1 inches) in height, 4520mm (178.0 inches) in length, 1720mm (67.7 inches) in width with a 2610mm (102.8 inches) wheelbase that brings about a total of 1303kg (2872.6 lbs) of unladen weight. The Elantra FX comes standard with 185/65 R15 front tyres and 185/65 R15 rear tyres. It has a 60 month, 130,000 km warranty.

    The 2003 Hyundai Elantra FX has a 110mm ground clearance with a 850kg braked and 453kg unbraked towing capacity.

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    How does the Elantra compare?

    Quickly see how the 2003 Hyundai Elantra FX stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    80.58 - 87.79 kW/t
    43.98 kW/t
    139.78 kW/t
    Boot Space
    367 - 569 litres
    367 litres
    569 litres
    Fuel Efficiency
    8.1 - 9.1 L/100km
    4.4 L/100km
    9.1 L/100km
    Price
    $18,490 - $25,980
    $18,490
    $56,630
    Warranty (Years)
    5 years
    3 years
    5 years
    Warranty (Distance)
    130,000 km
    100,000 km
    Unlimited

    Towing & Off-Road Capability

    Gross Vehicle Weight
    1,760 - 1,800 kg
    1,725 kg
    1,800 kg
    Braked Towing Capacity
    850 kg
    800 kg
    1,200 kg
    Ground Clearance Unladen
    110 - 160 mm
    110 mm
    160 mm

    Ready to take the next step?

    Our New Car Specialists can help you secure the best deal. No stress. No running around. No extra cost. Delivery included.

    Compare CarsFind a deal

    Dimensions

    4,520 mm
    1,720 mm
    1,425 mm
    SpecificationMeasurement
    Overall Length4,520 mm
    Overall Width1,720 mm
    Overall Height1,425 mm
    Wheelbase2,610 mm
    Turning Circle10,100 mm
    Load Capacity497 mm

    Looking for complete Hyundai Elantra size & space specs?

    Our Hyundai Elantra Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Hyundai Elantra Features & Specs

    FX

    2L, 4-speed auto, 5-door Hatchback, Petrol, FWD

    Save $$$ with CarExpert*
    $21,980†
    Find a deal

    Engine

    Bore Engine: 82
    Engine (cc): 1975
    Compression Ratio: 10
    Engine Configuration: In-Line
    Engine (L): 2
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 93.5
    Valve Gear Type: Double Overhead Cam
    Variable Valve Timing Camshaft: yes

    Fuel

    Generic Primary Fuel Type: Petrol
    Fuel Type: Unleaded
    Octane Number: 91

    Fuel System

    Injection Carburetion: Multi-Point Injection

    Fuel Tanks

    Main Capacity Gal: 14.5
    Main Capacity (L): 55
    Main Fuel Type: Unleaded
    Main Type: Total

    Interested in buying a Hyundai Elantra FX?

    Save $$$ with CarExpert*
    From
    $21,980†
    Find a deal

    Computer

    Average Fuel Consumption: yes
    Range for Remaining Fuel: yes

    Fuel Consumption

    ADR 81/02 Combined (L/100km): 9.1
    ADR 81/02 Combined (mpg): 26
    ADR 81/02 Standard: Adr 81/02
    AS 2877 Combined (L/100km): 9.1
    AS 2877 Combined (mpg): 26
    AS 2877 Standard: As 2877

    Fuel Economy

    ADR 81/02 (L/100km): 9.1

    Power

    Maximum Power (hp/PS): 143
    Maximum Power (kW): 105
    Maximum Torque (Nm): 186
    Measurement Standard: EEC
    Rpm For Maximum Power Low: 6000
    Rpm For Maximum Torque Low: 4000

    Drive

    Driven Wheels: Front

    Transmission

    Electronic Control Auto Only: yes
    Lock Up Auto Only: yes
    Mode Select Auto Only: yes
    Number of Speeds: 4
    Shift Lever Location: Floor
    Type: Automatic

    ABS

    Location: 4-Wheel

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 2

    Steering Wheel

    Height Adjustment: yes
    Type: Leather Covered

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Coil
    Rear Stabilizer Bar: yes
    Rear Type: Multi-Link
    Rear Wheel Dependence: Independent

    Tires

    Location: Front
    Front Wheels Tire Profile: 65
    Front Wheels Tire Speed Rating: H
    Front Wheels Tire Width: 185
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 65
    Rear Wheels Tire Speed Rating: H
    Rear Wheels Tire Width: 185

    Wheels

    Front Covers: Full
    Location: Front
    Front Wheels Rim Diameter (In): 15
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 5.5
    Rear Covers: Full
    Location: Rear
    Rear Rim Diameter (In): 15
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 5.5

    Body Style

    Body Type: Hatchback
    Driver Location: RHD
    Local Body Type: Hatchback

    Mud Flaps

    Front Mud Flaps Location: Front
    Rear Mud Flaps Location: Rear

    Non-Corrosive Body

    Non-Corrosive Panel Location: Part
    Non-Corrosive Panel Type: Galvanised

    Bumpers

    Front Bumper Colour: Painted
    Location: Front
    Rear Bumper Colour: Painted
    Location: Rear

    Cargo Capacity

    Rear Seat Down (cu ft): 49.5
    Rear Seat Down (L): 1401
    Rear Seat Down to Lower Window (cu ft): 28.3
    Rear Seat Down to Lower Window (L): 801
    Rear Seat Up to Lower Window (cu ft): 20.1
    Rear Seat Up to Lower Window (L): 569

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 10100
    Front Track (in): 58.5
    Front Track (mm): 1485
    Ground Clearance Unladen (in): 4.3
    Ground Clearance Unladen (mm): 110
    Kerb To Kerb Turning Circle (ft): 33.1
    Overall Height (in): 56.1
    Overall Height (mm): 1425
    Overall Length (in): 178
    Overall Length (mm): 4520
    Overall Width (in): 67.7
    Overall Width (mm): 1720
    Rear Track (in): 58.1
    Rear Track (mm): 1475
    Wheelbase (in): 102.8
    Wheelbase (mm): 2610

    Internal Dimensions

    Front Headroom (in): 39.6
    Front Headroom (mm): 1006
    Rear Headroom (in): 38
    Rear Headroom (mm): 964
    Front Hip Room (in): 53
    Front Hip Room (mm): 1345
    Rear Hip Room (in): 55.6
    Rear Hip Room (mm): 1412
    Front Leg Room (in): 43.2
    Front Leg Room (mm): 1097
    Rear Leg Room (in): 35
    Rear Leg Room (mm): 889
    Front Shoulder Room (in): 54.7
    Front Shoulder Room (mm): 1390
    Rear Shoulder Room (in): 53.5
    Rear Shoulder Room (mm): 1360

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Front Hinged
    Location: Rear Passenger
    Rear Passenger Door Type: Front Hinged

    Headlights

    Low Beam Bulb Type: Halogen
    Lens Type: Complex Surface

    Paint

    External Colour: red
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Heated Driver Door Mirrors/Cameras: yes
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Heated Passenger Door Mirrors/Cameras: yes
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front
    Number of Front Express Power Windows: 1
    Rear Electric Windows: Rear

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Gross Trailer Weight Braked (kg): 850
    Gross Trailer Weight Braked (lb): 1874
    Gross Trailer Weight Unbraked (kg): 453
    Gross Trailer Weight Unbraked (lb): Unlimited
    Gross Vehicle Weight (kg): 1800
    Gross Vehicle Weight (lb): 3968
    Published Kerb Weight (kg): 1303
    Published Kerb Weight (lb): 2873

    Antenna

    Type: Electric

    Audio Anti-Theft Protection

    Type: Code

    Audio System

    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    Speakers

    Number of Speakers: 6

    Cargo Area Cover Rear Parcel Shelf

    Type: Rigid

    Cigar Lighter

    Location: Front Seats

    Courtesy Lights

    Delayed Fade: yes

    Power Outlet 12V

    Location (12V): Front

    Reading Lights

    Location: Front

    Vanity Mirror

    Driver Mirror Location: Driver
    Location: Passenger

    Luxury Trim

    Gear Selector: Leather
    Shift Lever Skirt: Leather

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Operation: Reel
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Driver Type: 3-Point
    Passenger Height Adjustable: yes
    Passenger Operation: Reel
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger
    Passenger Type: 3-Point

    Head Restraints

    Front Seats Height Adjustable: yes
    Front Seats Location: Front Seats
    Front Seats Number: 2
    Rear Seats Height Adjustable: yes
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Operation: Reel
    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Operation: Reel
    Driver Seat Position: Driver
    Driver Type: 3-Point
    Passenger Operation: Reel
    Passenger Seat Position: Passenger
    Passenger Type: 3-Point

    Side Airbag

    Location: Front

    Front Seat

    Driver Front Seat Height Adjustment: yes
    Location: Driver
    Driver Front Seat Lumbar Adjustment: yes
    Driver Front Seat Tilt Adjustment: yes
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 5

    Cup Holders

    Location: Front Seats
    Front Seats Type: Fixed
    Location: Rear Seats
    Rear Seats Type: Pop Out

    Door Pockets Bins

    Location: Driver
    Location: Passenger

    Seat Back Storage

    Location: Front

    Anti-Theft Protection

    Interior Monitoring: yes
    Peripheral: yes

    Power Locks

    Includes Trunk Hatch: yes
    Operation: Remote
