ALLSPACE 140 TDI HIGHLINE

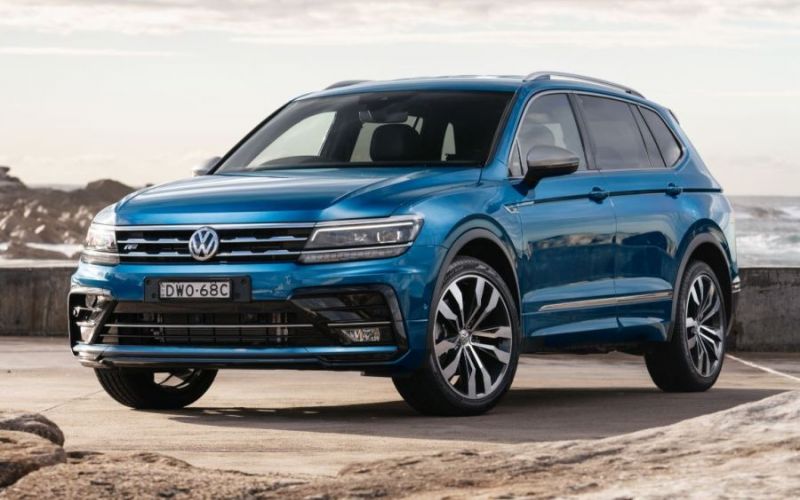

2020 Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE

2020 Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Specifications

Volkswagen Logo
MRLP A$54,690
6.4L/100km
5 stars

About the 2020 Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE

The 2020 Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE is an all-wheel drive four-door wagon that was released to the Australian market on 01/07/2020 classified as a 5NA MY20. The Tiguan is regarded as a large SUV built in Germany with prices starting at A$54,690 before on-road costs.

The Tiguan is an all-wheel drive 4 door with 7 seats, powered by a 2.0L DIESEL TURBO 4 engine that has 140 kW of power (at 3500 rpm) and 400 Nm of torque (at 1750 rpm) via a Seven-speed Auto Direct Shift. VOLKSWAGEN claims the Tiguan ALLSPACE 140 TDI HIGHLINE uses 6.4L/100km of Diesel in the combined city and highway cycle while putting out 169g of CO2. It has a 60L fuel tank, meaning it should be able to travel 938km per full tank.

The Tiguan measures 1665mm (65.6 inches) in height, 4701mm (185.1 inches) in length, 1839mm (72.4 inches) in width with a 2790mm (109.8 inches) wheelbase that brings about a total of 1839kg (6151.9 lbs) of unladen weight. The Tiguan ALLSPACE 140 TDI HIGHLINE comes standard with 235/50 R19 front tyres and 235/50 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2020 Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE has a 201mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.

The Tiguan has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Inner Guard and the compliance plate is located on the RH Door Apert. on Lower B-Pill. An example VIN number would be similar to WVGZZZ5NZ#*123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Volkswagen Tiguan
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Details
PriceA$54,690
Series5NA MY20
Body Stylefour-door wagon
Release date01/07/2020
Discontinued date-
Drive typeAWD
VIN plate locationDriver Side Inner Guard
Compliance plate locationRH Door Apert. on Lower B-Pill
VIN ExampleWVGZZZ5NZ#*123456
Country of originGermany
SegmentLarge SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity7
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Engine Specifications
TypeTURBO CDI
Size1968cc, 2.0L
Power @ RPM 140kW @ 3500rpm (187.7 hp)
Torque @ RPM400Nm @ 1750rpm (295.0 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro RatingEURO 6
Compression ratio15.5
Power/weight ratio76.1kw/tonne
Bore/stroke81mm × 95.5mm (3.2in × 3.7in)
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Drivetrain and Wheels
TransmissionSeven-speed Auto Direct Shift
Drive typeall-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.9m (39.0 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size235/50 R19 - 7x19
Rear tyre & wheel size235/50 R19 - 7x19
Front suspension typeIndependent, MacPherson strut, Lower arm, Anti roll bar
Rear suspension typeIndependent, 4 links, Coil Spring, Anti roll bar
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity60L
Fuel consumption (combined average)6.4L / 100km
Fuel consumption city (average)7.4L / 100km
Fuel consumption highway (average)5.9L / 100km
Vehicle range937.5km (582.5 miles)
Emission standardEURO 6
E10 compatible-
CO2 emissions (combined)169g / 100km
CO2 emissions (city)195g / 100km
CO2 emissions (highway)154g / 100km
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Dimensions
Length4701mm (185.1 inches)
Width1839mm (72.4 inches)
Height1665mm (65.6 inches)
Wheelbase2790mm (109.8 inches)
Front track1576mm (62.0 inches)
Rear track1566mm (61.7 inches)
Ground clearance201mm (7.9 inches)
Unladen weight1839kg (4055.0 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Towing Capacity
Braked towing capacity2500kg (5512.5 lbs)
Unbraked towing capacity750kg (1653.8 lbs)
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Warranty
Warranty length60 months
Warranty distanceUnlimited km
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Volkswagen Tiguan ALLSPACE 140 TDI HIGHLINE Options
Standard Features
  • 12 Volt Power Outlet
  • Climate Control - 2 Zone
  • Dual Front Airbags Package
  • Airbag Knee Driver
  • Anti-lock Braking
  • Automatic Climate Control Filtered
  • Active High Beam Control
  • Adaptive Chassis Control
  • Apple Car Play
  • Automatic Hold Function
  • Ambient Interior Lighting
  • Adjustable Speed Limiter
  • Anti-Slip Regulation
  • Automatic Stop/Start
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Anti-theft Wheel Bolts
  • Android Auto
  • 19 Inch Alloy Wheels
  • Brake Assist
  • Curtain Airbags
  • City Brake Support Forward
  • City Brake Support Rear
  • Cruise Control Intelligent/Active
  • Cargo Cover
  • Chrome Grille Surround
  • Cup Holders - Front Seats
  • Chrome Highlight - Interior
  • Central Locking Remote Control
  • Child Proof Rear Door Locks
  • Chrome Roof Rails
  • Child Seat Anchor Points
  • Child Seat - ISOFIX Anchorage System
  • Collision Warning - Full Auto Brake
  • Crumple Zone Front & Rear
  • Driver Fatigue Detection
  • Dynamic Light Assist
  • Driver Mode Selection
  • Dust and Pollen Filter
  • Diesel Particulate Filter
  • Daytime Running Lights - LED
  • Emergency Assist
  • Electronic Brake Force Distribution
  • Emergency Brake Lights - Flashing
  • Electronic Differential Lock
  • Exhaust Gas Recirculation
  • Electric Parking Brake
  • Electronic Stability Program
  • Front Centre Armrest
  • Front Footwell Lights
  • Fog Lights - Front with Cornering Function
  • Fog Lights - Rear
  • Floor Mats - Front & Rear
  • Glovebox Cooler
  • Gesture Control
  • Headrests - Adjustable on All Seats
  • Headlights - Coming/Leaving Home Function
  • Harddisk Drive (Built-in)
  • Heated Front Seats
  • Heat and Noise Insulating Glass
  • Heated Rear Seats
  • Humidity Sensor
  • Inlays
  • Engine Immobiliser
  • Keyless Entry & Push Start Button
  • Kerb View Function
  • Leather Accented Upholstery
  • Lane Change Assist
  • Lockable Cooled Glovebox
  • Luggage/Cargo Area Light(s)
  • LED Headlights
  • LED Indicators
  • Leather Gear Knob
  • Lane Keeping Assist
  • Leather Steering Wheel
  • Memory Card Reader
  • Multi Function Control Screen
  • Multi Function Display
  • Multi Function Steering Wheel
  • Map/Reading Lights - Front & Rear
  • Mirror Shells
  • Park Assist
  • Parking Distance Control Rear
  • Parking Distance Control Front
  • Paddle Shifters on Steering Wheel
  • Pedestrian Recognition
  • Power front seats with memory
  • Power Lumbar Support Front Seats
  • Power Mirrors
  • Power Mirrors With Folding
  • Power Exterior Mirrors - Heated
  • Power Tailgate
  • Radio AM/FM
  • Rear Centre Armrest
  • Rear Cross Traffic Alert
  • Remote Fuel Lid Release
  • Rear Lights - LED
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror Auto Dimming
  • Side Airbags
  • Satellite Navigation
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Load Limiters Rear Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Rear Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for Front Seats
  • Selective Catalytic Reduction
  • Speed Sensing Auto Door Lock
  • Split Fold Rear Seat
  • Side Impact Protection
  • Scuff Plates - On Doors Sill
  • Sport Seats
  • Sound System with 8 Speakers
  • Speed Sensitive Power Steering
  • Sunvisors with Vanity Mirrors & Illumination
  • Spare Wheel - Space Saver/Temporary
  • Trip Computer
  • Traffic Jam Assist
  • Tyre Pressure Loss Warning System
  • Touch Sensor Door Opening
  • Tinted Windows
  • USB Input Socket
  • Voice Recognition System
  • Extended Electronic Diff Lock
Optional Features
  • Metallic Paint - A$800
  • Pearl Effect Paint - A$800
  • Powered Panoramic Sunroof - A$2,000
  • R-Line Pack - A$3,000
  • Sound and Vision Package - A$3,000
