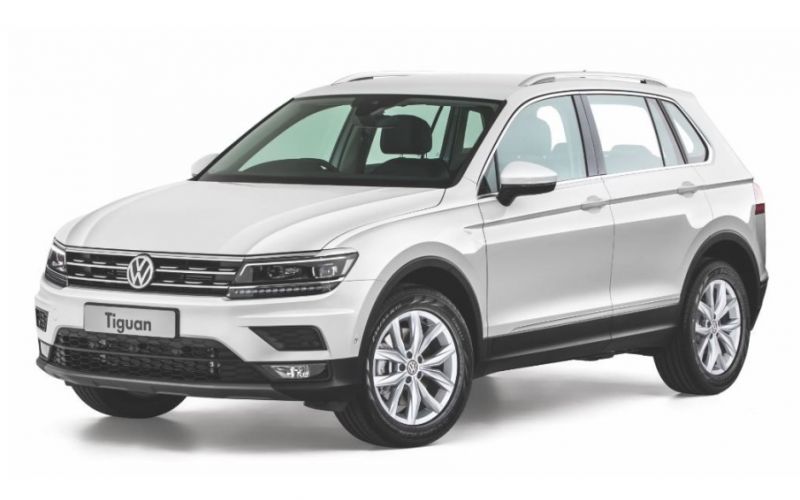

2020 Volkswagen Tiguan 132 TSI R-LINE EDITION Specifications
About the 2020 Volkswagen Tiguan 132 TSI R-LINE EDITION
The 2020 Volkswagen Tiguan 132 TSI R-LINE EDITION is an all-wheel drive four-door wagon that was released to the Australian market on 01/09/2019 classified as a 5NA MY20. The Tiguan is regarded as a medium SUV built in Germany with prices from a dealer as a used car starting at A$45,500.
The Tiguan is an all-wheel drive 4 door with 5 seats, powered by a 2.0L TURBO 4 engine that has 132 kW of power (at 3900 rpm) and 320 Nm of torque (at 1500 rpm) via a Seven-speed Auto Direct Shift. VOLKSWAGEN claims the Tiguan 132 TSI R-LINE EDITION uses 7.5L/100km of Premium Unleaded Petrol in the combined city and highway cycle while putting out 173g of CO2. It has a 60L fuel tank, meaning it should be able to travel 800km per full tank.
The Tiguan measures 1658mm (65.3 inches) in height, 4486mm (176.6 inches) in length, 1839mm (72.4 inches) in width with a 2681mm (105.6 inches) wheelbase that brings about a total of 1600kg (3527.4 lbs) of unladen weight. The Tiguan 132 TSI R-LINE EDITION comes standard with 235/50 R19 front tyres and 235/50 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.
The 2020 Volkswagen Tiguan 132 TSI R-LINE EDITION has a 201mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
The Tiguan has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Inner Guard and the compliance plate is located on the RH Door Apert. on Lower B-Pill. An example VIN number would be similar to VWGZZZ5NZ#W123456.
Reviews
There are no current reviews of this variant. Click here to see reviews for other variants of the Volkswagen Tiguan| Volkswagen Tiguan 132 TSI R-LINE EDITION Details | |
|---|---|
| Price | - |
| Used Price From Dealer | A$45,500 |
| Trade-In Value | A$39,100 |
| Series | 5NA MY20 |
| Body Style | four-door wagon |
| Release date | 01/09/2019 |
| Discontinued date | 31/07/2020 |
| Drive type | AWD |
| VIN plate location | Driver Side Inner Guard |
| Compliance plate location | RH Door Apert. on Lower B-Pill |
| VIN Example | VWGZZZ5NZ#W123456 |
| Country of origin | Germany |
| Segment | Medium SUV |
| Safety ANCAP rating | 5 stars |
| Number of doors | 4 |
| Seating capacity | 5 |
| Volkswagen Tiguan 132 TSI R-LINE EDITION Engine Specifications | |
| Type | TURBO MPFI |
| Size | 1984cc, 2.0L |
| Power @ RPM | 132kW @ 3900rpm (177.0 hp) |
| Torque @ RPM | 320Nm @ 1500rpm (236.0 lb-ft) |
| Cylinders | turbocharged four-cylinder |
| Number of Valves | 16 |
| Valves | DUAL OVERHEAD CAM |
| Euro Rating | EURO 6 |
| Compression ratio | 11.65 |
| Power/weight ratio | 82.5kw/tonne |
| Bore/stroke | 82.5mm × 92.8mm (3.2in × 3.6in) |
| Volkswagen Tiguan 132 TSI R-LINE EDITION Drivetrain and Wheels | |
| Transmission | Seven-speed Auto Direct Shift |
| Drive type | all-wheel drive |
| Steering type | RACK & PINION - POWER ASSISTED |
| Turning circle | 11.5m (37.7 ft) |
| Brake (front) type | DISC - VENTILATED |
| Brake (rear) type | DISC |
| Front tyre & wheel size | 235/50 R19 - 7x19 |
| Rear tyre & wheel size | 235/50 R19 - 7x19 |
| Front suspension type | Independent, MacPherson strut, Lower arm, Anti roll bar |
| Rear suspension type | Independent, 4 links, Coil Spring, Anti roll bar |
| Volkswagen Tiguan 132 TSI R-LINE EDITION Fuel Specifications | |
| Fuel type | PREMIUM UNLEADED PETROL |
| Fuel tank capacity | 60L |
| Fuel consumption (combined average) | 7.5L / 100km |
| Fuel consumption city (average) | 9.2L / 100km |
| Fuel consumption highway (average) | 6.5L / 100km |
| Vehicle range | 800.0km (497.1 miles) |
| Emission standard | EURO 6 |
| E10 compatible | - |
| CO2 emissions (combined) | 173g / 100km |
| CO2 emissions (city) | 210g / 100km |
| CO2 emissions (highway) | 150g / 100km |
| Volkswagen Tiguan 132 TSI R-LINE EDITION Dimensions | |
| Length | 4486mm (176.6 inches) |
| Width | 1839mm (72.4 inches) |
| Height | 1658mm (65.3 inches) |
| Wheelbase | 2681mm (105.6 inches) |
| Front track | 1576mm (62.0 inches) |
| Rear track | 1566mm (61.7 inches) |
| Ground clearance | 201mm (7.9 inches) |
| Unladen weight | 1600kg (3527.4 lbs) |
| Gross Vehicle Mass | - |
| Gross Combination Mass | - |
| Volkswagen Tiguan 132 TSI R-LINE EDITION Towing Capacity | |
| Braked towing capacity | 2500kg (5511.5 lbs) |
| Unbraked towing capacity | 750kg (1653.5 lbs) |
| Volkswagen Tiguan 132 TSI R-LINE EDITION Warranty | |
| Warranty length | 60 months |
| Warranty distance | Unlimited km |
| Volkswagen Tiguan 132 TSI R-LINE EDITION Servicing | |
| Service interval (km) | 15,000 km |
| Service interval (months) | 12 months |
| Volkswagen Tiguan 132 TSI R-LINE EDITION Options | |
| Standard Features |
|
| Optional Features |
|
