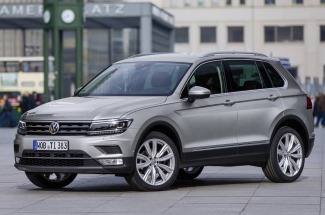

2017 Volkswagen Tiguan 162 TSI SPORTLINE

2017 Volkswagen Tiguan 162 TSI SPORTLINE Specifications

Volkswagen Logo
8.1L/100km
5 stars

About the 2017 Volkswagen Tiguan 162 TSI SPORTLINE

The 2017 Volkswagen Tiguan 162 TSI SPORTLINE is an all-wheel drive four-door wagon that was released to the Australian market on 01/12/2017 classified as a 5NA MY18. The Tiguan is regarded as a medium SUV built in Germany with prices from a dealer as a used car starting at A$35,900.

The Tiguan is an all-wheel drive 4 door with 5 seats, powered by a 2.0L TURBO 4 engine that has 162 kW of power (at 4500 rpm) and 350 Nm of torque (at 1500 rpm) via a Seven-speed Auto Direct Shift. VOLKSWAGEN claims the Tiguan 162 TSI SPORTLINE uses 8.1L/100km of Premium Unleaded Petrol in the combined city and highway cycle while putting out 186g of CO2. It has a 60L fuel tank, meaning it should be able to travel 741km per full tank.

The Tiguan measures 1658mm (65.3 inches) in height, 4486mm (176.6 inches) in length, 1839mm (72.4 inches) in width with a 2681mm (105.6 inches) wheelbase that brings about a total of 1637kg (3609.0 lbs) of unladen weight. The Tiguan 162 TSI SPORTLINE comes standard with 235/45 R20 front tyres and 235/45 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2017 Volkswagen Tiguan 162 TSI SPORTLINE has a 201mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.

The Tiguan has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Inner Guard and the compliance plate is located on the RH Door Apert. on Lower B-Pill. An example VIN number would be similar to VWGZZZ5NZ#W123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Volkswagen Tiguan
Volkswagen Tiguan 162 TSI SPORTLINE Details
Price-
Used Price From DealerA$35,900
Trade-In ValueA$30,200
Series5NA MY18
Body Stylefour-door wagon
Release date01/12/2017
Discontinued date28/02/2018
Drive typeAWD
VIN plate locationDriver Side Inner Guard
Compliance plate locationRH Door Apert. on Lower B-Pill
VIN ExampleVWGZZZ5NZ#W123456
Country of originGermany
SegmentMedium SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Volkswagen Tiguan 162 TSI SPORTLINE Engine Specifications
TypeTURBO DIRECT F/INJ
Size1984cc, 2.0L
Power @ RPM 162kW @ 4500rpm (217.2 hp)
Torque @ RPM350Nm @ 1500rpm (258.1 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro RatingEURO 6
Compression ratio9.6
Power/weight ratio99.0kw/tonne
Bore/stroke82.5mm × 92.8mm (3.2in × 3.6in)
Volkswagen Tiguan 162 TSI SPORTLINE Drivetrain and Wheels
TransmissionSeven-speed Auto Direct Shift
Drive typeall-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.5m (37.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size235/45 R20 - 8Jx20
Rear tyre & wheel size235/45 R20 - 8Jx20
Front suspension typeIndependent, MacPherson strut, Lower arm, Anti roll bar
Rear suspension typeIndependent, 4 links, Coil Spring, Anti roll bar
Volkswagen Tiguan 162 TSI SPORTLINE Fuel Specifications
Fuel typePREMIUM UNLEADED PETROL
Fuel tank capacity60L
Fuel consumption (combined average)8.1L / 100km
Fuel consumption city (average)10L / 100km
Fuel consumption highway (average)7L / 100km
Vehicle range740.7km (460.2 miles)
Emission standardEURO 6
E10 compatible-
CO2 emissions (combined)186g / 100km
CO2 emissions (city)229g / 100km
CO2 emissions (highway)160g / 100km
Volkswagen Tiguan 162 TSI SPORTLINE Dimensions
Length4486mm (176.6 inches)
Width1839mm (72.4 inches)
Height1658mm (65.3 inches)
Wheelbase2681mm (105.6 inches)
Front track1576mm (62.0 inches)
Rear track1566mm (61.7 inches)
Ground clearance201mm (7.9 inches)
Unladen weight1637kg (3609.0 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Volkswagen Tiguan 162 TSI SPORTLINE Towing Capacity
Braked towing capacity2500kg (5511.5 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Volkswagen Tiguan 162 TSI SPORTLINE Warranty
Warranty length36 months
Warranty distanceUnlimited km
Volkswagen Tiguan 162 TSI SPORTLINE Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Volkswagen Tiguan 162 TSI SPORTLINE Options
Standard Features
  • 12 Volt Power Outlet
  • Climate Control - 3 Zone
  • Automatically Activated Hazard Lights
  • Dual Front Airbags Package
  • Airbag Knee Driver
  • Anti-lock Braking
  • Active Bonnet
  • Automatic Climate Control Filtered
  • Adaptive Chassis Control
  • Apple Car Play
  • Automatic Door Locks
  • Autonomous Emergency Braking
  • Adjustable Speed Limiter
  • Anti-Slip Regulation
  • Anti-theft Wheel Bolts
  • Android Auto
  • AUX/USB Input Socket
  • 20 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Bumpers
  • Body Coloured Exterior Door Handles
  • Body Coloured Exterior Mirrors
  • Bottle Holders - Front and Rear
  • Bluetooth Connectivity
  • City Brake Support Forward
  • Chrome Front Grille
  • Cargo Net - On Floor
  • Cup Holders - Front and Rear
  • Cargo Tie Down Hooks/Rings
  • Central Locking Remote Control
  • Child Proof Rear Door Locks
  • Chrome Roof Rails
  • Child Seat Anchor Points
  • Comfort Seats Front
  • Child Seat - ISOFIX Anchorage System
  • Chrome Surround - Exterior Side Windows
  • Cloth Trim
  • Collision Warning - Full Auto Brake
  • Driver Fatigue Detection
  • Dust and Pollen Filter
  • Daytime Running Lights - LED
  • Emergency Assist
  • Electronic Brake Force Distribution
  • Electronic Diff Lock Rear
  • Exterior Mirrors - Heated
  • Electric Parking Brake
  • Electronic Stability Program
  • Front Centre Armrest
  • Fog Lights - Front with Cornering Function
  • Fog Lights - Rear
  • Floor Mats - Front & Rear
  • Glovebox Cooler
  • Headrests - Adjustable on All Seats
  • Head Airbags
  • Heated Front Seats
  • Hill Holder
  • Hands-Free Smart Tailgate
  • Illuminated Glove Box Compartment
  • Inlays
  • Engine Immobiliser
  • Keyless Entry & Push Start Button
  • Leather Accented Gear Knob
  • Lane Change Assist
  • Luggage/Cargo Area Light(s)
  • Lane Departure Warning
  • LED Headlights
  • Lockable Fuel Filler Cap/Lid
  • Lane Keeping Assist
  • Memory Card Reader
  • Multi Function Control Screen
  • Multi Function Steering Wheel
  • MP3 Compatible Audio/CD Player
  • Map/Reading Lights - Front & Rear
  • One Touch Convenience Turn Signal
  • Park Assist
  • Parking Distance Control Rear
  • Power Lumbar Support Driver Seat
  • Paddle Shifters on Steering Wheel
  • Pedestrian Recognition
  • Power front seat Driver/memory
  • Power Mirrors With Indicators & Folding
  • Power Mirrors With Memory
  • Power Windows With One-Touch Operation
  • Rear Centre Armrest
  • Rear Lights - LED
  • Rear Privacy Glass
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror Auto Dimming
  • Side Airbags
  • Satellite Navigation
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for All Seats
  • Side Door Impact Beams
  • Sport Seats
  • Sound System with 8 Speakers
  • Sunvisors with Vanity Mirrors & Illumination
  • Spare Wheel - Space Saver/Temporary
  • Traffic Jam Assist
  • Tyre Pressure Monitoring System
  • Tinted Windows
  • Voice Recognition System
  • Extended Electronic Diff Lock
Optional Features
  • Metallic Paint - A$700
  • Pearl Effect Paint - A$700
