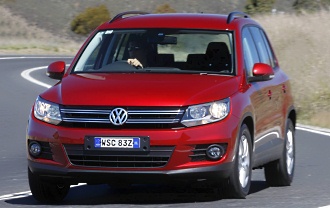

2015 Volkswagen Tiguan 155 TSI R-LINE (4x4)

2015 Volkswagen Tiguan 155 TSI R-LINE (4x4) Specifications

Volkswagen Logo
8.8L/100km
5 stars

About the 2015 Volkswagen Tiguan 155 TSI R-LINE (4x4)

The 2015 Volkswagen Tiguan 155 TSI R-LINE (4x4) is an all-wheel drive four-door wagon that was released to the Australian market on 01/09/2014 classified as a 5NC MY15. The Tiguan is regarded as a small SUV built in Germany with prices from a dealer as a used car starting at A$25,200.

The Tiguan is an all-wheel drive 4 door with 5 seats, powered by a 2.0L TURBO 4 engine that has 155 kW of power (at 5300 rpm) and 280 Nm of torque (at 1700 rpm) via a Seven-speed Auto Direct Shift. VOLKSWAGEN claims the Tiguan 155 TSI R-LINE (4x4) uses 8.8L/100km of Premium Unleaded Petrol in the combined city and highway cycle while putting out 205g of CO2. It has a 64L fuel tank, meaning it should be able to travel 727km per full tank.

The Tiguan measures 1686mm (66.4 inches) in height, 4427mm (174.3 inches) in length, 1809mm (71.2 inches) in width with a 2605mm (102.6 inches) wheelbase that brings about a total of 1642kg (3620.0 lbs) of unladen weight. The Tiguan 155 TSI R-LINE (4x4) comes standard with 235/50 R18 front tyres and 235/50 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2015 Volkswagen Tiguan 155 TSI R-LINE (4x4) has a 195mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

The Tiguan has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Inner Guard and the compliance plate is located on the Right Side in Boot Compartment. An example VIN number would be similar to WVGZZZ5NZ#**00011.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Volkswagen Tiguan
Volkswagen Tiguan 155 TSI R-LINE (4x4) Details
Price-
Used Price From DealerA$25,200
Trade-In ValueA$20,400
Series5NC MY15
Body Stylefour-door wagon
Release date01/09/2014
Discontinued date30/06/2015
Drive typeAWD
VIN plate locationDriver Side Inner Guard
Compliance plate locationRight Side in Boot Compartment
VIN ExampleWVGZZZ5NZ#**00011
Country of originGermany
SegmentSmall SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Volkswagen Tiguan 155 TSI R-LINE (4x4) Engine Specifications
TypeTURBO MPFI
Size1984cc, 2.0L
Power @ RPM 155kW @ 5300rpm (207.9 hp)
Torque @ RPM280Nm @ 1700rpm (206.5 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio9.6
Power/weight ratio94.4kw/tonne
Bore/stroke82.5mm × 92.8mm (3.2in × 3.6in)
Volkswagen Tiguan 155 TSI R-LINE (4x4) Drivetrain and Wheels
TransmissionSeven-speed Auto Direct Shift
Drive typeall-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12m (39.4 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size235/50 R18 - 8x18
Rear tyre & wheel size235/50 R18 - 8x18
Front suspension typeMacPherson strut, Lower wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeMulti-link system, Coil Spring, Hydraulic double acting shock absorber, Anti roll bar
Volkswagen Tiguan 155 TSI R-LINE (4x4) Fuel Specifications
Fuel typePREMIUM UNLEADED PETROL
Fuel tank capacity64L
Fuel consumption (combined average)8.8L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range727.3km (451.9 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)205g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Volkswagen Tiguan 155 TSI R-LINE (4x4) Dimensions
Length4427mm (174.3 inches)
Width1809mm (71.2 inches)
Height1686mm (66.4 inches)
Wheelbase2605mm (102.6 inches)
Front track1559mm (61.4 inches)
Rear track1571mm (61.9 inches)
Ground clearance195mm (7.7 inches)
Unladen weight1642kg (3620.0 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Volkswagen Tiguan 155 TSI R-LINE (4x4) Towing Capacity
Braked towing capacity2000kg (4409.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Volkswagen Tiguan 155 TSI R-LINE (4x4) Warranty
Warranty length36 months
Warranty distanceUnlimited km
Volkswagen Tiguan 155 TSI R-LINE (4x4) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Volkswagen Tiguan 155 TSI R-LINE (4x4) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Adaptive Damping Control
  • Ambient Interior Lighting
  • Antenna - Roof-mounted Shark Fin type
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Ambient Temperature Display
  • Anti-theft Wheel Bolts
  • AUX/USB Input Socket
  • 18 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Bumpers
  • Body Coloured Exterior Door Handles
  • Body Coloured Exterior Mirrors
  • Bottle Holders - Front Seats
  • Cruise Control
  • CD with 6 CD Stacker
  • Chrome Front Grille
  • Cargo Cover
  • Cup Holders - Front and Rear
  • Cargo Tie Down Hooks/Rings
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Proof Rear Door Locks
  • Chrome Roof Rails
  • Child Seat Anchor Points
  • Chrome Surround - Exterior Side Windows
  • Digital Clock
  • Dust and Pollen Filter
  • Door Pockets - Front and Rear
  • Dusk Sensing Headlights
  • Daytime Running Lights
  • Electronic Brake Force Distribution
  • Emergency Brake Lights - Flashing
  • Electronic Differential Lock
  • Exterior Mirrors - Heated
  • Electric Parking Brake
  • Electronic Stability Program
  • Front Footwell Lights
  • Fog Lights - Front
  • Glovebox Cooler
  • Grab Handles - Front and Rear
  • Headrests - Adjustable on All Seats
  • Head Airbags
  • Headlights - Coming/Leaving Home Function
  • Hard Disk Drive (Built-in)
  • Hill Holder
  • Halogen Headlights
  • High Mounted Rear Stop Light
  • Illuminated - Entry/Exit with Delayed Fade
  • Illuminated Glove Box Compartment
  • Engine Immobiliser
  • Intermittent Wipers - Variable
  • Luggage/Cargo Area Light(s)
  • Lane Departure Warning
  • Lockable Glove Box Compartment
  • Leather Gear Knob
  • Leather Steering Wheel
  • Leather Upholstery
  • Memory Card Reader
  • Multi Function Control Screen
  • Multi Function Steering Wheel
  • MP3 Compatible Audio/CD Player
  • Mobile Phone Connectivity
  • Map/Reading Lights - Front
  • Park Assist
  • Power front seat Driver
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Rear Centre Armrest
  • Radio CD with 8 Speakers
  • Rear Privacy Glass
  • Roof-mounted Rear Spoiler
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror Auto Dimming
  • Rear Wiper/Washer
  • Satellite Navigation
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for Front Seats
  • Storage Compartment - Centre Floor Console
  • Storage Compartment Under Passenger Front Seat
  • Side Door Impact Beams
  • Speed Sensing Auto Door Lock
  • Side Front AirBags
  • Split Fold Rear Seat
  • Sunglass Holder
  • Seatback Pockets - Front Seats
  • Sport Seats
  • Storage Recess - Under Floor in Rear Cargo Area
  • Sunvisors with Vanity Mirrors & Illumination
  • Spare Wheel - Space Saver/Temporary
  • Trip Computer
  • Traction Control System
  • Voice Recognition System
Optional Features
  • Metallic Paint - A$700
  • Power Sunroof - A$2,000
