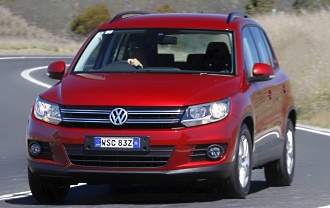

2012 Volkswagen Tiguan 103 TDI

2012 Volkswagen Tiguan 103 TDI Specifications

Volkswagen Logo
6.2L/100km
5 stars

About the 2012 Volkswagen Tiguan 103 TDI

The 2012 Volkswagen Tiguan 103 TDI is an all-wheel drive four-door wagon that was released to the Australian market on 01/10/2011 classified as a 5NC MY12. The Tiguan is regarded as a SUV compact built in Germany with prices from a dealer as a used car starting at A$14,400.

The Tiguan is an all-wheel drive 4 door with 5 seats, powered by a 2.0L DIESEL TURBO 4 engine that has 103 kW of power (at 4200 rpm) and 320 Nm of torque (at 1750 rpm) via a Seven-speed Auto Direct Shift. VOLKSWAGEN claims the Tiguan 103 TDI uses 6.2L/100km of Diesel in the combined city and highway cycle while putting out 164g of CO2. It has a 64L fuel tank, meaning it should be able to travel 1032km per full tank.

The Tiguan measures 1686mm (66.4 inches) in height, 4427mm (174.3 inches) in length, 1809mm (71.2 inches) in width with a 2605mm (102.6 inches) wheelbase that brings about a total of 1630kg (3593.5 lbs) of unladen weight. The Tiguan 103 TDI comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2012 Volkswagen Tiguan 103 TDI has a 195mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

The Tiguan has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Inner Guard and the compliance plate is located on the Right Side in Boot Compartment. An example VIN number would be similar to WVGZZZ5NZ#**00011.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Volkswagen Tiguan
Volkswagen Tiguan 103 TDI Details
Price-
Used Price From DealerA$14,400
Trade-In ValueA$10,800
Series5NC MY12
Body Stylefour-door wagon
Release date01/10/2011
Discontinued date31/07/2012
Drive typeAWD
VIN plate locationDriver Side Inner Guard
Compliance plate locationRight Side in Boot Compartment
VIN ExampleWVGZZZ5NZ#**00011
Country of originGermany
SegmentSUV COMPACT
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Volkswagen Tiguan 103 TDI Engine Specifications
TypeDIESEL TURBO F/INJ
Size1968cc, 2.0L
Power @ RPM 103kW @ 4200rpm (138.1 hp)
Torque @ RPM320Nm @ 1750rpm (236.0 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio16.5
Power/weight ratio63.2kw/tonne
Bore/stroke81mm × 95.5mm (3.2in × 3.7in)
Volkswagen Tiguan 103 TDI Drivetrain and Wheels
TransmissionSeven-speed Auto Direct Shift
Drive typeall-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12m (39.4 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size215/65 R16 - 6.5x16
Rear tyre & wheel size215/65 R16 - 6.5x16
Front suspension typeMacPherson strut, Lower wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeMulti-link system, Coil Spring, Hydraulic double acting shock absorber, Anti roll bar
Volkswagen Tiguan 103 TDI Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity64L
Fuel consumption (combined average)6.2L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range1032.3km (641.4 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)164g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Volkswagen Tiguan 103 TDI Dimensions
Length4427mm (174.3 inches)
Width1809mm (71.2 inches)
Height1686mm (66.4 inches)
Wheelbase2605mm (102.6 inches)
Front track1559mm (61.4 inches)
Rear track1571mm (61.9 inches)
Ground clearance195mm (7.7 inches)
Unladen weight1630kg (3593.5 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Volkswagen Tiguan 103 TDI Towing Capacity
Braked towing capacity2000kg (4409.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Volkswagen Tiguan 103 TDI Warranty
Warranty length36 months
Warranty distanceUnlimited km
Volkswagen Tiguan 103 TDI Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Volkswagen Tiguan 103 TDI Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • Adjustable Steering Wheel - Tilt & Telescopic
  • 16 Inch Alloy Wheels
  • Brake Assist
  • Cruise Control
  • Central Locking Remote Control
  • Cloth Trim
  • Electronic Brake Force Distribution
  • Electronic Differential Lock
  • Electronic Stability Program
  • Head Airbags
  • Hill Holder
  • Engine Immobiliser
  • Leather Steering Wheel
  • Multi Function Steering Wheel
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Radio CD with 8 Speakers
  • Roof Rails
  • Seatbelts - Pre-tensioners Front Seats
  • Side Front AirBags
  • Trip Computer
  • Traction Control System
Optional Features
  • Adaptive Damping Control - A$1,650
  • Alarm System/Remote Anti Theft - A$600
  • 18 Inch Alloy Wheels - A$2,300
  • Comfort Pack - A$1,000
  • Fog Lights - Front - A$400
  • Leather Upholstery - A$4,000
  • Metallic Paint - A$700
  • Parking Distance Control Rear - A$1,400
  • Power Sunroof - A$2,000
  • Satellite Navigation - A$3,000
  • Xenon Headlights - A$2,100
