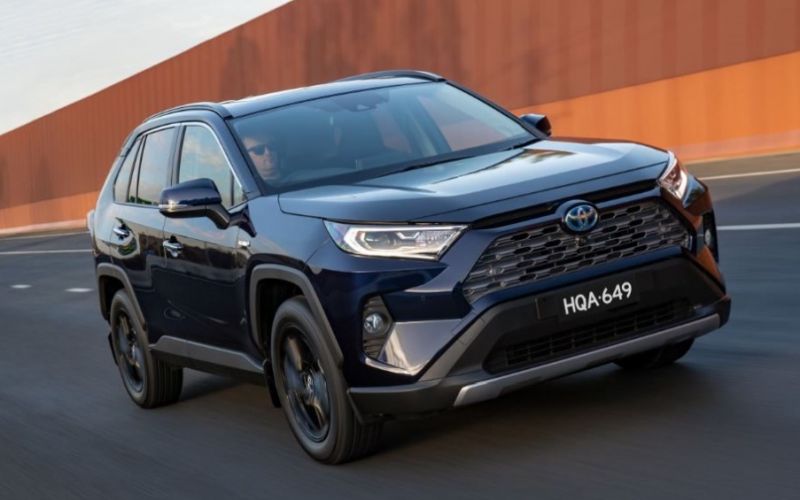

2021 Toyota RAV4 GX (2WD) NAV Specifications
About the 2021 Toyota RAV4 GX (2WD) NAV
The 2021 Toyota RAV4 GX (2WD) NAV is a front-wheel drive five-door wagon that was released to the Australian market on 01/08/2020 classified as a MXAA52R. The RAV4 is regarded as a medium SUV built in Japan with prices starting at A$34,695 before on-road costs.
The RAV4 is a front-wheel drive 5 door with 5 seats, powered by a 2.0L INLINE 4 engine that has 127 kW of power (at 6600 rpm) and 207 Nm of torque (at 4400 rpm) via a Continuous Variable. TOYOTA claims the RAV4 GX (2WD) NAV uses 6.5L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 147g of CO2. It has a 55L fuel tank, meaning it should be able to travel 846km per full tank.
The RAV4 measures 1685mm (66.3 inches) in height, 4600mm (181.1 inches) in length, 1855mm (73.0 inches) in width with a 2690mm (105.9 inches) wheelbase that brings about a total of 1550kg (3417.2 lbs) of unladen weight. The RAV4 GX (2WD) NAV comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.
The 2021 Toyota RAV4 GX (2WD) NAV has a 195mm ground clearance with a 800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.262.
The RAV4 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to JTMZ43FV60J123456.
Reviews
There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota RAV4| Toyota RAV4 GX (2WD) NAV Details | |
|---|---|
| Price | A$34,695 |
| Series | MXAA52R |
| Body Style | five-door wagon |
| Release date | 01/08/2020 |
| Discontinued date | - |
| Drive type | FWD |
| VIN plate location | Driver Side Front Floor |
| Compliance plate location | Lower Driver Side B-Pillar |
| VIN Example | JTMZ43FV60J123456 |
| Country of origin | Japan |
| Segment | Medium SUV |
| Safety ANCAP rating | 5 stars |
| Number of doors | 5 |
| Seating capacity | 5 |
| Toyota RAV4 GX (2WD) NAV Engine Specifications | |
| Type | DIRECT FUEL INJ |
| Size | 1987cc, 2.0L |
| Power @ RPM | 127kW @ 6600rpm (170.3 hp) |
| Torque @ RPM | 207Nm @ 4400rpm (152.7 lb-ft) |
| Cylinders | four-cylinder |
| Number of Valves | 16 |
| Valves | DUAL OVERHEAD CAM |
| Euro Rating | EURO 5 |
| Compression ratio | 13 |
| Power/weight ratio | 81.9kw/tonne |
| Bore/stroke | 80.5mm × 97.62mm (3.1in × 3.8in) |
| Toyota RAV4 GX (2WD) NAV Drivetrain and Wheels | |
| Transmission | Continuous Variable |
| Drive type | front-wheel drive |
| Steering type | RACK & PINION - POWER ASSISTED |
| Turning circle | 11m (36.1 ft) |
| Brake (front) type | DISC - VENTILATED |
| Brake (rear) type | DISC |
| Front tyre & wheel size | 225/65 R17 - 7x17 |
| Rear tyre & wheel size | 225/65 R17 - 7x17 |
| Front suspension type | MacPherson strut, Anti roll bar |
| Rear suspension type | Shock absorber, Trailing arm, Trailing Wishbone, Anti roll bar |
| Toyota RAV4 GX (2WD) NAV Fuel Specifications | |
| Fuel type | UNLEADED PETROL |
| Fuel tank capacity | 55L |
| Fuel consumption (combined average) | 6.5L / 100km |
| Fuel consumption city (average) | 7.8L / 100km |
| Fuel consumption highway (average) | 5.7L / 100km |
| Vehicle range | 846.2km (525.8 miles) |
| Emission standard | EURO 5 |
| E10 compatible | - |
| CO2 emissions (combined) | 147g / 100km |
| CO2 emissions (city) | 178g / 100km |
| CO2 emissions (highway) | 130g / 100km |
| Toyota RAV4 GX (2WD) NAV Dimensions | |
| Length | 4600mm (181.1 inches) |
| Width | 1855mm (73.0 inches) |
| Height | 1685mm (66.3 inches) |
| Wheelbase | 2690mm (105.9 inches) |
| Front track | 1605mm (63.2 inches) |
| Rear track | 1625mm (64.0 inches) |
| Ground clearance | 195mm (7.7 inches) |
| Unladen weight | 1550kg (3417.2 lbs) |
| Gross Vehicle Mass | 2125kg (4684.8 lbs) |
| Gross Combination Mass | - |
| Toyota RAV4 GX (2WD) NAV Towing Capacity | |
| Braked towing capacity | 800kg (1763.7 lbs) |
| Unbraked towing capacity | 750kg (1653.5 lbs) |
| Toyota RAV4 GX (2WD) NAV Warranty | |
| Warranty length | 60 months |
| Warranty distance | Unlimited km |
| Toyota RAV4 GX (2WD) NAV Servicing | |
| Service interval (km) | 15,000 km |
| Service interval (months) | 12 months |
| Toyota RAV4 GX (2WD) NAV Options | |
| Standard Features |
|
| Optional Features |
|
