Home/Browse Cars/Toyota/RAV4/
GX (AWD) HYBRID

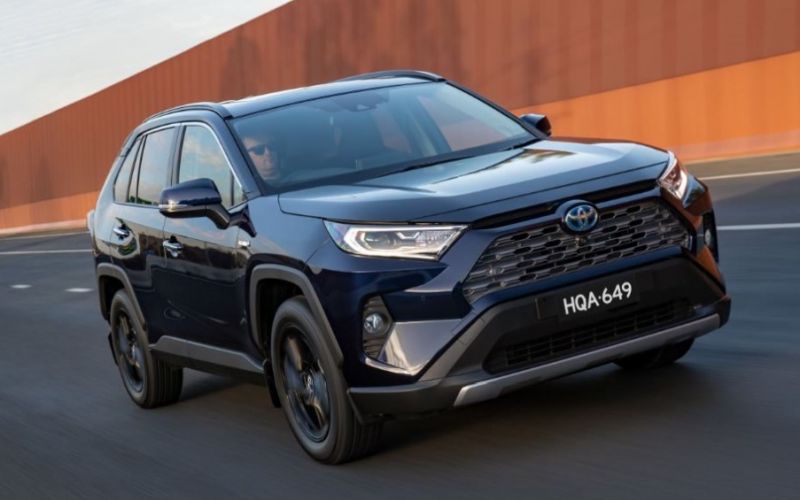

2020 Toyota RAV4 GX (AWD) HYBRID

2020 Toyota RAV4 GX (AWD) HYBRID Specifications

Toyota Logo
MRLP A$39,070
4.8L/100km
5 stars

About the 2020 Toyota RAV4 GX (AWD) HYBRID

The 2020 Toyota RAV4 GX (AWD) HYBRID is an all-wheel drive five-door wagon that was released to the Australian market on 01/08/2020 classified as a AXAH54R. The RAV4 is regarded as a medium SUV built in Japan with prices starting at A$39,070 before on-road costs.

The RAV4 is an all-wheel drive 5 door with 5 seats, powered by a 2.5L INLINE 4 engine that has 131 kW of power (at 5700 rpm) and 221 Nm of torque (at 3600 rpm) via a Continuous Variable. TOYOTA claims the RAV4 GX (AWD) HYBRID uses 4.8L/100km of Unleaded Petrol-Electric Hybrid in the combined city and highway cycle while putting out 109g of CO2. It has a 55L fuel tank, meaning it should be able to travel 1146km per full tank.

The RAV4 measures 1685mm (66.3 inches) in height, 4615mm (181.7 inches) in length, 1855mm (73.0 inches) in width with a 2690mm (105.9 inches) wheelbase that brings about a total of 1705kg (5931.4 lbs) of unladen weight. The RAV4 GX (AWD) HYBRID comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2020 Toyota RAV4 GX (AWD) HYBRID has a 190mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.605.

The RAV4 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to JTMZ23FV90J123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota RAV4
Toyota RAV4 GX (AWD) HYBRID Details
PriceA$39,070
SeriesAXAH54R
Body Stylefive-door wagon
Release date01/08/2020
Discontinued date-
Drive typeAWD
VIN plate locationDriver Side Front Floor
Compliance plate locationLower Driver Side B-Pillar
VIN ExampleJTMZ23FV90J123456
Country of originJapan
SegmentMedium SUV
Safety ANCAP rating5 stars
Number of doors5
Seating capacity5
Toyota RAV4 GX (AWD) HYBRID Engine Specifications
TypeDIRECT FUEL INJ
Size2487cc, 2.5L
Power @ RPM 131kW @ 5700rpm (175.7 hp)
Torque @ RPM221Nm @ 3600rpm (163.0 lb-ft)
Cylindersfour-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro RatingEURO 5
Compression ratio14
Power/weight ratio76.8kw/tonne
Bore/stroke87.5mm × 103.48mm (3.4in × 4.1in)
Toyota RAV4 GX (AWD) HYBRID Drivetrain and Wheels
TransmissionContinuous Variable
Drive typeall-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11m (36.1 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size225/65 R17 - 7x17
Rear tyre & wheel size225/65 R17 - 7x17
Front suspension typeMacPherson strut, Anti roll bar
Rear suspension typeShock absorber, Trailing arm, Trailing Wishbone, Anti roll bar
Toyota RAV4 GX (AWD) HYBRID Fuel Specifications
Fuel typeUNLEADED PETROL/ELECTRIC
Fuel tank capacity55L
Fuel consumption (combined average)4.8L / 100km
Fuel consumption city (average)5L / 100km
Fuel consumption highway (average)4.8L / 100km
Vehicle range1145.8km (712.0 miles)
Emission standardEURO 5
E10 compatible-
CO2 emissions (combined)109g / 100km
CO2 emissions (city)112g / 100km
CO2 emissions (highway)109g / 100km
Toyota RAV4 GX (AWD) HYBRID Dimensions
Length4615mm (181.7 inches)
Width1855mm (73.0 inches)
Height1685mm (66.3 inches)
Wheelbase2690mm (105.9 inches)
Front track1605mm (63.2 inches)
Rear track1625mm (64.0 inches)
Ground clearance190mm (7.5 inches)
Unladen weight1705kg (3759.5 lbs)
Gross Vehicle Mass2230kg (4917.2 lbs)
Gross Combination Mass-
Toyota RAV4 GX (AWD) HYBRID Towing Capacity
Braked towing capacity1500kg (3307.5 lbs)
Unbraked towing capacity750kg (1653.8 lbs)
Toyota RAV4 GX (AWD) HYBRID Warranty
Warranty length60 months
Warranty distanceUnlimited km
Toyota RAV4 GX (AWD) HYBRID Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Toyota RAV4 GX (AWD) HYBRID Options
Standard Features
  • Additional 12 Volt Socket/s
  • 12 Volt Power Outlet
  • Five Seat Interior
  • Dual Front Airbags Package
  • Automatic Brake Hold
  • Airbag Knee Driver
  • Anti-lock Braking
  • Active Cornering Assist
  • Auto Climate Control with Dual Temp Zones
  • Active High Beam Control
  • Apple Car Play
  • Auto Limited Slip Differential
  • Acoustic Laminated Windscreen
  • Antenna - Roof-mounted Shark Fin type
  • All-speed Active Cruise Control
  • Adjustable Steering Column
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Android Auto
  • 17 Inch Alloy Wheels
  • Bag Hooks
  • Brake Assist
  • Body Coloured Exterior Door Handles
  • Blind Spot Monitoring
  • Bluetooth Connectivity
  • Curtain Airbags - Front
  • Curtain Airbags - Rear
  • Cargo Area Netpocket
  • Cruise Control Intelligent/Active
  • Centre Console Storage
  • Centre Console Tray
  • Cargo Cover
  • Cup Holders - Front and Rear
  • Cup Holders - Rear Seats
  • Centre Console Box - Multi-purpose
  • Child Seat - ISOFIX Anchorage System
  • Cyclist Recognition
  • Digital Audio Broadcast Radio +
  • Driver Mode Selection
  • Door Pockets - Front Seat
  • Daytime Running Lights - LED
  • Display Screen 4.2 Inch
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • ECO Indicator
  • ECO Mode
  • Electric Motor
  • Exterior Mirrors with Puddle Light
  • Electric Parking Brake
  • Electric Power Steering
  • Extra USB Socket/s
  • EV Mode
  • Forward Collision Warning
  • Fog Lights - Front
  • Front Footwell Lights - LED
  • Fog Lights - Rear
  • Floor Mats - Front & Rear
  • Hybrid Meter Displays
  • Headrests Front
  • Headrests Rear
  • Hill Start Assist
  • Hybrid Drive System
  • Impact Absorbing Body Structure
  • Illuminated Cup Holders - Front
  • Illuminated Entry
  • Engine Immobiliser
  • Leather Accented Steering Wheel
  • Lane Departure Warning
  • LED Headlights
  • Lane Sway Warning
  • Lane Trace Control
  • Live Traffic Monitoring
  • Mobile Assistant
  • Mud Flaps - Rear
  • Multi Function Steering Wheel
  • Multi Information Display
  • Miracast
  • Multi-media System with 8 inch Touch Screen
  • Nickel Metal Hydride Battery
  • Normal Mode
  • Noise, Vibration & Harshness Package
  • Overhead Console/s
  • Off Road Dial
  • Off Road Mode
  • Open Tray Drivers Seat
  • Open Tray Passenger Seat
  • Pre-Collision Brake Assist
  • Pre-Collision Braking System
  • Parking Distance Control Front & Rear
  • Pedestrian Recognition
  • Projector Headlights
  • Power Mirrors With Heated & Folding
  • Power Mirrors With Indicators
  • Pre-Collision Warning System
  • Pre-collision Systems
  • Premium Steering Wheel
  • Power Windows Front
  • Power Windows Rear
  • Radio AM/FM
  • Rear Air Vents
  • Rear Centre Armrest - Folding
  • Rear Combination Lights
  • Rear Cross Traffic Alert
  • Reversible Carpet/Vinyl Cargo Mat
  • Reclining Rear Seats
  • Remote Entry with Smart Start
  • Remote Keyless Entry
  • Rear Lights - LED
  • Road Sign Assist
  • Rear Spoiler Tailgate Mounted
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear Wiper/Washer
  • Steering Assist
  • Side Airbags - Front Seats side
  • Satellite Navigation
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Reminder for All Seats
  • Storage Compartment - In Dash
  • Split Fold Rear Seat
  • Sunglass Holder
  • Siri Compatability
  • Sports Mode
  • Smart Device Link
  • Smart Start
  • Sound System with 6 Speakers
  • Soft Touch Instrument Panel
  • Spare Wheel - Space Saver/Temporary
  • Traction Control System
  • TFT Display
  • Trail Mode
  • Touch Screen 8 inch
  • Trailer Stability Control
  • Toyota Safety Sense 2
  • Twin Tailpipes
  • USB Input Socket
  • Ventilated Front Disc Brakes
  • Vinyl Gear Knob
  • Variable Luggage Compartment Floor Level
  • Voice Recognition System - Enhanced
  • Vehicle Stability Control
  • Vinyl Shift Lever
Optional Features
  • Crystal Shine Paint - A$600
  • Mica Paint - A$600
  • Metallic Paint - A$600
  • Solid Paint - A$600
  • Spare Wheel - Full Size Alloy Wheel - A$300
