2021 Toyota HiLux SR5 (4x4) Specifications
About the 2021 Toyota HiLux SR5 (4x4)

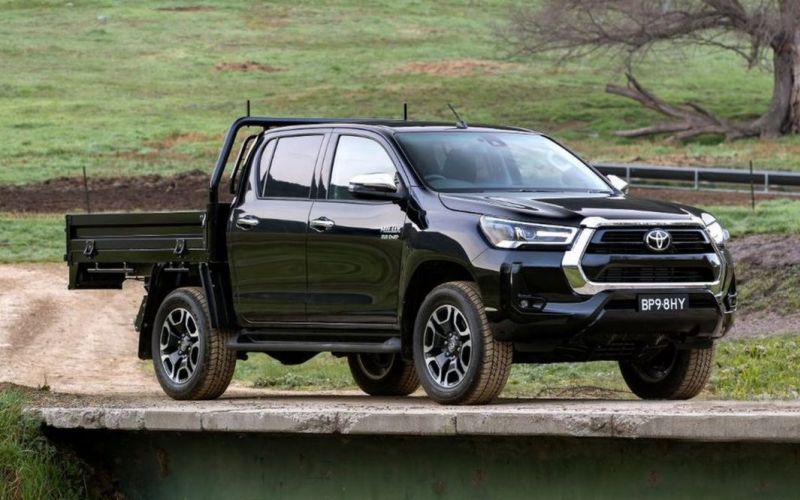

The 2021 Toyota HiLux SR5 (4x4) is a four-wheel drive double cab chassis that was released to the Australian market on 01/08/2021 classified as a GUN126R. The HiLux is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at $54,100.
The HiLux is a four-wheel drive 4 door with 5 seats, powered by a 2.8L DIESEL TURBO 4 engine that has 150 kW of power (at 3000 rpm) and 500 Nm of torque (at 1600 rpm) via a Six-speed Automatic. TOYOTA claims the HiLux SR5 (4x4) uses 8L/100km of Diesel in the combined city and highway cycle while putting out 212g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1000km per full tank.
The HiLux measures 1865mm (73.4 inches) in height, 5325mm (209.6 inches) in length, 1855mm (73.0 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 2000kg (4409.2 lbs) of unladen weight. The HiLux SR5 (4x4) comes standard with 265/60 R18 front tyres and 265/60 R18 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.
The 2021 Toyota HiLux SR5 (4x4) has a 216mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
The HiLux has received a 5 star rating from ANCAP. The VIN number can be found on the Right Rear Chassis Rail and the compliance plate is located on the Pass Side Lower B-Pillar. An example VIN number would be similar to MR0JA3DD980000001.
Reviews
There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota HiLux| Toyota HiLux SR5 (4x4) Details | |
|---|---|
| Price | - |
| Used Price From Dealer | $54,100 |
| Trade-In Value | $47,100 |
| Series | GUN126R |
| Body Style | double cab chassis |
| Release date | 01/08/2021 |
| Discontinued date | - |
| Drive type | 4x4 |
| VIN plate location | Right Rear Chassis Rail |
| Compliance plate location | Pass Side Lower B-Pillar |
| VIN Example | MR0JA3DD980000001 |
| Country of origin | Thailand |
| Segment | Pick Up or Cab Chassis 4X4 |
| Safety ANCAP rating | 5 stars |
| Number of doors | 4 |
| Seating capacity | 5 |
| Toyota HiLux SR5 (4x4) Engine Specifications | |
| Type | DIESEL TURBO F/INJ |
| Size | 2753cc, 2.8L |
| Power @ RPM | 150kW @ 3000rpm (201.2 hp) |
| Torque @ RPM | 500Nm @ 1600rpm (368.7 lb-ft) |
| Cylinders | turbocharged four-cylinder |
| Number of Valves | 16 |
| Valves | DUAL OVERHEAD CAM |
| Euro Rating | EURO 5 |
| Compression ratio | 15.6 |
| Power/weight ratio | 75.0kw/tonne |
| Bore/stroke | 92mm × 103.6mm (3.6in × 4.1in) |
| Toyota HiLux SR5 (4x4) Drivetrain and Wheels | |
| Transmission | Six-speed Automatic |
| Drive type | four-wheel drive |
| Steering type | RACK & PINION - POWER ASSISTED |
| Turning circle | 11.8m (38.7 ft) |
| Brake (front) type | DISC - VENTILATED |
| Brake (rear) type | DRUM |
| Front tyre & wheel size | 265/60 R18 - 7.5x18 |
| Rear tyre & wheel size | 265/60 R18 - 7.5x18 |
| Front suspension type | Double wishbone, Coil Spring, Hydraulic double acting shock absorber, Anti roll bar |
| Rear suspension type | Leaf spring, Hydraulic double acting shock absorber |
| Toyota HiLux SR5 (4x4) Fuel Specifications | |
| Fuel type | DIESEL |
| Fuel tank capacity | 80L |
| Fuel consumption (combined average) | 8L / 100km |
| Fuel consumption city (average) | 9.1L / 100km |
| Fuel consumption highway (average) | 7.4L / 100km |
| Vehicle range | 1000.0km (621.4 miles) |
| Emission standard | EURO 5 |
| E10 compatible | - |
| CO2 emissions (combined) | 212g / 100km |
| CO2 emissions (city) | 239g / 100km |
| CO2 emissions (highway) | 196g / 100km |
| Toyota HiLux SR5 (4x4) Dimensions | |
| Length | 5325mm (209.6 inches) |
| Width | 1855mm (73.0 inches) |
| Height | 1865mm (73.4 inches) |
| Wheelbase | 3085mm (121.5 inches) |
| Front track | 1535mm (60.4 inches) |
| Rear track | 1550mm (61.0 inches) |
| Ground clearance | 216mm (8.5 inches) |
| Unladen weight | 2000kg (4409.2 lbs) |
| Gross Vehicle Mass | 3050kg (6724.1 lbs) |
| Gross Combination Mass | 5850kg (12897.0 lbs) |
| Toyota HiLux SR5 (4x4) Towing Capacity | |
| Braked towing capacity | 3500kg (7716.2 lbs) |
| Unbraked towing capacity | 750kg (1653.5 lbs) |
| Toyota HiLux SR5 (4x4) Warranty | |
| Warranty length | 60 months |
| Warranty distance | Unlimited km |
| Toyota HiLux SR5 (4x4) Servicing | |
| Service interval (km) | 10,000 km |
| Service interval (months) | 6 months |
| Toyota HiLux SR5 (4x4) Options | |
| Standard Features |
|
| Optional Features |
|
