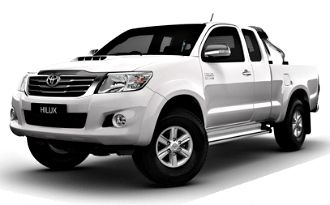

2013 Toyota HiLux SR5 (4x4)

2013 Toyota HiLux SR5 (4x4) Specifications

Toyota Logo
8.3L/100km
4 stars

About the 2013 Toyota HiLux SR5 (4x4)

The 2013 Toyota HiLux SR5 (4x4) is a four-wheel drive x cab pickup that was released to the Australian market on 01/09/2011 classified as a KUN26R MY12. The HiLux is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$27,400.

The HiLux is a four-wheel drive 2 door with 4 seats, powered by a 3.0L DIESEL TURBO 4 engine that has 126 kW of power (at 3600 rpm) and 343 Nm of torque (at 1400 rpm) via a Five-speed Manual. TOYOTA claims the HiLux SR5 (4x4) uses 8.3L/100km of Diesel in the combined city and highway cycle while putting out 219g of CO2. It has a 76L fuel tank, meaning it should be able to travel 916km per full tank.

The HiLux measures 1835mm (72.2 inches) in height, 5260mm (207.1 inches) in length, 1835mm (72.2 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1830kg (4034.5 lbs) of unladen weight. The HiLux SR5 (4x4) comes standard with 255/70 R15 front tyres and 255/70 R15 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2013 Toyota HiLux SR5 (4x4) has a 215mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.583.

The HiLux has received a 4 star rating from ANCAP. The VIN number can be found on the Rear Driver Side Chassis and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to MR0HZ29G100111111.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota HiLux
Toyota HiLux SR5 (4x4) Details
Price-
Used Price From DealerA$27,400
Trade-In ValueA$22,200
SeriesKUN26R MY12
Body Stylex cab pickup
Release date01/09/2011
Discontinued date31/01/2014
Drive type4x4
VIN plate locationRear Driver Side Chassis
Compliance plate locationLower Pass Side Centre Pillar
VIN ExampleMR0HZ29G100111111
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating4 stars
Number of doors2
Seating capacity4
Toyota HiLux SR5 (4x4) Engine Specifications
TypeDIESEL TURBO F/INJ
Size2982cc, 3.0L
Power @ RPM 126kW @ 3600rpm (169.0 hp)
Torque @ RPM343Nm @ 1400rpm (252.9 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio17.9
Power/weight ratio68.9kw/tonne
Bore/stroke96mm × 103mm (3.8in × 4.1in)
Toyota HiLux SR5 (4x4) Drivetrain and Wheels
TransmissionFive-speed Manual
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.4m (40.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size255/70 R15 - 7x15
Rear tyre & wheel size255/70 R15 - 7x15
Front suspension typeDouble wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeLive axle, Leaf spring, Gas damper
Toyota HiLux SR5 (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity76L
Fuel consumption (combined average)8.3L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range915.7km (569.0 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)219g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Toyota HiLux SR5 (4x4) Dimensions
Length5260mm (207.1 inches)
Width1835mm (72.2 inches)
Height1835mm (72.2 inches)
Wheelbase3085mm (121.5 inches)
Front track1540mm (60.6 inches)
Rear track1540mm (60.6 inches)
Ground clearance215mm (8.5 inches)
Unladen weight1830kg (4034.5 lbs)
Gross Vehicle Mass2710kg (5974.5 lbs)
Gross Combination Mass-
Toyota HiLux SR5 (4x4) Towing Capacity
Braked towing capacity2500kg (5511.5 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Toyota HiLux SR5 (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Toyota HiLux SR5 (4x4) Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Toyota HiLux SR5 (4x4) Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Automatic Air Con / Climate Control
  • Alloy Sports Bar
  • 15 Inch Alloy Wheels
  • Cruise Control
  • CD with 6 CD Stacker
  • Central Locking Remote Control
  • Dusk Sensing Headlights
  • Fog Lights - Front
  • Engine Immobiliser
  • Limited Slip Differential
  • Leather Steering Wheel
  • Multi Function Steering Wheel
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Radio CD with 6 Speakers
  • Satellite Navigation
  • Seatbelts - Pre-tensioners Front Seats
  • Side Steps
  • Trip Computer
Optional Features
  • Metallic Paint - A$400
