SR5 (4x4)

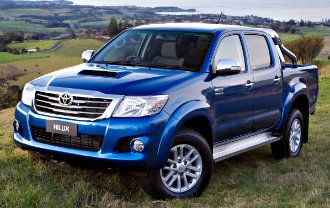

2013 Toyota HiLux SR5 (4x4)

2013 Toyota HiLux SR5 (4x4) Specifications

Toyota Logo
8.3L/100km
4 stars

About the 2013 Toyota HiLux SR5 (4x4)

The 2013 Toyota HiLux SR5 (4x4) is a four-wheel drive dual cab pickup that was released to the Australian market on 01/09/2011 classified as a KUN26R MY12. The HiLux is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$29,600.

The HiLux is a four-wheel drive 4 door with 5 seats, powered by a 3.0L DIESEL TURBO 4 engine that has 126 kW of power (at 3600 rpm) and 343 Nm of torque (at 1400 rpm) via a Five-speed Manual. TOYOTA claims the HiLux SR5 (4x4) uses 8.3L/100km of Diesel in the combined city and highway cycle while putting out 219g of CO2. It has a 76L fuel tank, meaning it should be able to travel 916km per full tank.

The HiLux measures 1860mm (73.2 inches) in height, 5260mm (207.1 inches) in length, 1835mm (72.2 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1865kg (6802.4 lbs) of unladen weight. The HiLux SR5 (4x4) comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2013 Toyota HiLux SR5 (4x4) has a 210mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.583.

The HiLux has received a 4 star rating from ANCAP. The VIN number can be found on the Rear Driver Side Chassis and the compliance plate is located on the Pass Side Rear Door Pillar. An example VIN number would be similar to MR0FZ29G100123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota HiLux
Toyota HiLux SR5 (4x4) Details
Price-
Used Price From DealerA$29,600
Trade-In ValueA$24,000
SeriesKUN26R MY12
Body Styledual cab pickup
Release date01/09/2011
Discontinued date31/01/2014
Drive type4x4
VIN plate locationRear Driver Side Chassis
Compliance plate locationPass Side Rear Door Pillar
VIN ExampleMR0FZ29G100123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating4 stars
Number of doors4
Seating capacity5
Toyota HiLux SR5 (4x4) Engine Specifications
TypeDIESEL TURBO F/INJ
Size2982cc, 3.0L
Power @ RPM 126kW @ 3600rpm (169.0 hp)
Torque @ RPM343Nm @ 1400rpm (252.9 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio17.9
Power/weight ratio67.6kw/tonne
Bore/stroke96mm × 103mm (3.8in × 4.1in)
Toyota HiLux SR5 (4x4) Drivetrain and Wheels
TransmissionFive-speed Manual
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.4m (40.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size265/65 R17 - 7.5x17
Rear tyre & wheel size265/65 R17 - 7.5x17
Front suspension typeDouble wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeLive axle, Leaf spring, Gas damper
Toyota HiLux SR5 (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity76L
Fuel consumption (combined average)8.3L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range915.7km (569.0 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)219g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Toyota HiLux SR5 (4x4) Dimensions
Length5260mm (207.1 inches)
Width1835mm (72.2 inches)
Height1860mm (73.2 inches)
Wheelbase3085mm (121.5 inches)
Front track1510mm (59.4 inches)
Rear track1510mm (59.4 inches)
Ground clearance210mm (8.3 inches)
Unladen weight1865kg (4112.3 lbs)
Gross Vehicle Mass2780kg (6129.9 lbs)
Gross Combination Mass-
Toyota HiLux SR5 (4x4) Towing Capacity
Braked towing capacity2500kg (5512.5 lbs)
Unbraked towing capacity750kg (1653.8 lbs)
Toyota HiLux SR5 (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Toyota HiLux SR5 (4x4) Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Toyota HiLux SR5 (4x4) Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Automatic Air Con / Climate Control
  • Alloy Sports Bar
  • 17 Inch Alloy Wheels
  • Brake Assist
  • Cruise Control
  • CD with 6 CD Stacker
  • Central Locking Remote Control
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Fog Lights - Front
  • Head Airbags
  • Engine Immobiliser
  • Limited Slip Differential
  • Leather Steering Wheel
  • Multi Function Steering Wheel
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Radio CD with 6 Speakers
  • Satellite Navigation
  • Seatbelts - Pre-tensioners Front Seats
  • Side Front AirBags
  • Side Steps
  • Trip Computer
  • Traction Control System
  • Vehicle Stability Control
Optional Features
  • Metallic Paint - A$400
