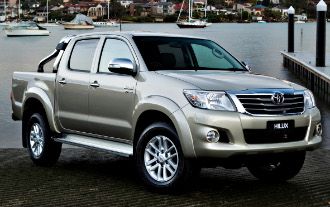

2013 Toyota HiLux SR5 (4x4)

2013 Toyota HiLux SR5 (4x4) Specifications

Toyota Logo
13L/100km
5 stars

About the 2013 Toyota HiLux SR5 (4x4)

The 2013 Toyota HiLux SR5 (4x4) is a four-wheel drive dual cab pickup that was released to the Australian market on 01/11/2013 classified as a GGN25R MY14. The HiLux is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$26,800.

The HiLux is a four-wheel drive 4 door with 5 seats, powered by a 4.0L V6 engine that has 175 kW of power (at 5200 rpm) and 376 Nm of torque (at 3800 rpm) via a Five-speed Automatic. TOYOTA claims the HiLux SR5 (4x4) uses 13L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 308g of CO2. It has a 76L fuel tank, meaning it should be able to travel 585km per full tank.

The HiLux measures 1860mm (73.2 inches) in height, 5260mm (207.1 inches) in length, 1835mm (72.2 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1770kg (3902.2 lbs) of unladen weight. The HiLux SR5 (4x4) comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2013 Toyota HiLux SR5 (4x4) has a 210mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.583.

The HiLux has received a 5 star rating from ANCAP. The VIN number can be found on the Rear Driver Side Chassis and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to MR0FU29G100123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota HiLux
Toyota HiLux SR5 (4x4) Details
Price-
Used Price From DealerA$26,800
Trade-In ValueA$21,700
SeriesGGN25R MY14
Body Styledual cab pickup
Release date01/11/2013
Discontinued date30/09/2015
Drive type4x4
VIN plate locationRear Driver Side Chassis
Compliance plate locationLower Pass Side Centre Pillar
VIN ExampleMR0FU29G100123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Toyota HiLux SR5 (4x4) Engine Specifications
TypeMULTI POINT F/INJ
Size3956cc, 4.0L
Power @ RPM 175kW @ 5200rpm (234.7 hp)
Torque @ RPM376Nm @ 3800rpm (277.3 lb-ft)
Cylinderssix-cylinder
Number of Valves24
ValvesVARIABLE DOUBLE OVERHEAD CAM
Euro Rating-
Compression ratio10
Power/weight ratio98.9kw/tonne
Bore/stroke94mm × 95mm (3.7in × 3.7in)
Toyota HiLux SR5 (4x4) Drivetrain and Wheels
TransmissionFive-speed Automatic
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.4m (40.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size265/65 R17 - 7.5x17
Rear tyre & wheel size265/65 R17 - 7.5x17
Front suspension typeDouble wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeLive axle, Leaf spring, Gas damper
Toyota HiLux SR5 (4x4) Fuel Specifications
Fuel typeUNLEADED PETROL
Fuel tank capacity76L
Fuel consumption (combined average)13L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range584.6km (363.3 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)308g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Toyota HiLux SR5 (4x4) Dimensions
Length5260mm (207.1 inches)
Width1835mm (72.2 inches)
Height1860mm (73.2 inches)
Wheelbase3085mm (121.5 inches)
Front track1540mm (60.6 inches)
Rear track1540mm (60.6 inches)
Ground clearance210mm (8.3 inches)
Unladen weight1770kg (3902.2 lbs)
Gross Vehicle Mass2810kg (6195.0 lbs)
Gross Combination Mass-
Toyota HiLux SR5 (4x4) Towing Capacity
Braked towing capacity2500kg (5511.5 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Toyota HiLux SR5 (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Toyota HiLux SR5 (4x4) Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Toyota HiLux SR5 (4x4) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Automatic Air Con / Climate Control
  • Adjustable Driver Seat - Manual
  • Antenna - Roof-mounted Bee-sting type
  • Alloy Sports Bar
  • Adjustable Steering Wheel - Tilt Only
  • AUX/USB Input Socket
  • 17 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Front Bumper
  • Bottle Holders - Front and Rear
  • Cruise Control
  • Chrome Exterior Door Handles
  • Centre Courtesy/Dome Light(s)
  • Chrome Exterior Mirrors
  • Chrome Grille Surround
  • Cup Holders - Front and Rear
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Cloth Trim
  • Door Pockets - Front and Rear
  • Door Pockets - Front Seat
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Fog Lights - Front
  • Grab Handles - Front and Rear
  • Headrests - Adjustable on All Seats
  • Head Airbags
  • Halogen Headlights
  • Engine Immobiliser
  • Intermittent Wipers - Variable
  • Low Fuel Warning
  • Lockable Glove Box Compartment
  • Leather Gear Knob
  • Limited Slip Differential
  • Leather Steering Wheel
  • Multi Function Control Screen
  • Multi Function Steering Wheel
  • MP3 Compatible Audio/CD Player
  • Mobile Phone Connectivity
  • Map/Reading Lights - Front
  • Over-Fender Flares
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Radio CD with 6 Speakers
  • Remote Fuel Lid Release
  • Rear Privacy Glass
  • Reversing Camera
  • Rear View Mirror Day/Night
  • Satellite Navigation
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Side Front AirBags
  • Sunglass Holder
  • Seatback Pockets - Front Seats
  • Side Steps
  • Spare Wheel - Full Size Steel Wheel
  • Trip Computer
  • Traction Control System
  • Voice Recognition System
  • Vehicle Stability Control
Optional Features
  • Metallic Paint - A$550
