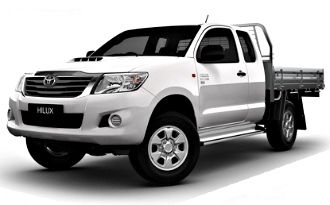

2013 Toyota HiLux SR (4x4)

2013 Toyota HiLux SR (4x4) Specifications

Toyota Logo
8.2L/100km
5 stars

About the 2013 Toyota HiLux SR (4x4)

The 2013 Toyota HiLux SR (4x4) is a four-wheel drive x cab cab chassis that was released to the Australian market on 01/11/2013 classified as a KUN26R MY14. The HiLux is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$23,000.

The HiLux is a four-wheel drive 2 door with 4 seats, powered by a 3.0L DIESEL TURBO 4 engine that has 126 kW of power (at 3600 rpm) and 343 Nm of torque (at 1400 rpm) via a Five-speed Manual. TOYOTA claims the HiLux SR (4x4) uses 8.2L/100km of Diesel in the combined city and highway cycle while putting out 217g of CO2. It has a 76L fuel tank, meaning it should be able to travel 927km per full tank.

The HiLux measures 1835mm (72.2 inches) in height, 5135mm (202.2 inches) in length, 1760mm (69.3 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1770kg (3902.2 lbs) of unladen weight. The HiLux SR (4x4) comes standard with 225/70 R17 front tyres and 225/70 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2013 Toyota HiLux SR (4x4) has a 215mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.583.

The HiLux has received a 5 star rating from ANCAP. The VIN number can be found on the Rear Driver Side Chassis and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to MR0HZ22G100123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota HiLux
Toyota HiLux SR (4x4) Details
Price-
Used Price From DealerA$23,000
Trade-In ValueA$18,200
SeriesKUN26R MY14
Body Stylex cab cab chassis
Release date01/11/2013
Discontinued date30/09/2015
Drive type4x4
VIN plate locationRear Driver Side Chassis
Compliance plate locationLower Pass Side Centre Pillar
VIN ExampleMR0HZ22G100123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating5 stars
Number of doors2
Seating capacity4
Toyota HiLux SR (4x4) Engine Specifications
TypeDIESEL TURBO F/INJ
Size2982cc, 3.0L
Power @ RPM 126kW @ 3600rpm (169.0 hp)
Torque @ RPM343Nm @ 1400rpm (252.9 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio17.9
Power/weight ratio71.2kw/tonne
Bore/stroke96mm × 103mm (3.8in × 4.1in)
Toyota HiLux SR (4x4) Drivetrain and Wheels
TransmissionFive-speed Manual
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.4m (40.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size225/70 R17 - 7.5x17
Rear tyre & wheel size225/70 R17 - 7.5x17
Front suspension typeDouble wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeLive axle, Leaf spring, Gas damper
Toyota HiLux SR (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity76L
Fuel consumption (combined average)8.2L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range926.8km (575.9 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)217g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Toyota HiLux SR (4x4) Dimensions
Length5135mm (202.2 inches)
Width1760mm (69.3 inches)
Height1835mm (72.2 inches)
Wheelbase3085mm (121.5 inches)
Front track1510mm (59.4 inches)
Rear track1510mm (59.4 inches)
Ground clearance215mm (8.5 inches)
Unladen weight1770kg (3902.2 lbs)
Gross Vehicle Mass2710kg (5974.5 lbs)
Gross Combination Mass-
Toyota HiLux SR (4x4) Towing Capacity
Braked towing capacity2500kg (5511.5 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Toyota HiLux SR (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Toyota HiLux SR (4x4) Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Toyota HiLux SR (4x4) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Antenna - Roof-mounted Bee-sting type
  • Adjustable Steering Wheel - Tilt Only
  • AUX/USB Input Socket
  • Brake Assist
  • Body Coloured Front Bumper
  • Bottle Holders - Front Seats
  • Cruise Control
  • Centre Courtesy/Dome Light(s)
  • Chrome Grille Surround
  • Cup Holders - Front Seats
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Cloth Trim
  • Door Pockets - Front Seat
  • Electronic Brake Force Distribution
  • Head Airbags
  • Headrests - Adjustable Front Seats
  • Halogen Headlights
  • Engine Immobiliser
  • Intermittent Wipers - Variable
  • Low Fuel Warning
  • Lockable Glove Box Compartment
  • MP3 Compatible Audio/CD Player
  • Mobile Phone Connectivity
  • Map/Reading Lights - Front
  • Power Mirrors
  • Power Steering
  • Power Windows
  • Radio CD with 2 Speakers
  • Remote Fuel Lid Release
  • Rear View Mirror Day/Night
  • Side Airbags
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Sunglass Holder
  • Seatback Pockets - Front Seats
  • Sport Seats
  • Side Steps
  • Steering Wheel-mounted Audio Controls
  • Spare Wheel - Full Size Steel Wheel
  • Steering Wheel - Urethane Type
  • Traction Control System
  • Vehicle Stability Control
Optional Features
  • Air Conditioning - A$2,050
  • Metallic Paint - A$550
