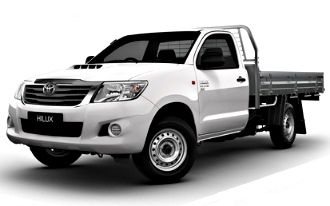

2013 Toyota HiLux SR

2013 Toyota HiLux SR Specifications

Toyota Logo
8.1L/100km
4 stars

About the 2013 Toyota HiLux SR

The 2013 Toyota HiLux SR is a rear-wheel drive cab chassis that was released to the Australian market on 01/09/2011 classified as a KUN16R MY12. The HiLux is regarded as a pick up or cab chassis 4x2 built in Thailand with prices from a dealer as a used car starting at A$14,800.

The HiLux is a rear-wheel drive 2 door with 3 seats, powered by a 3.0L DIESEL TURBO 4 engine that has 126 kW of power (at 3600 rpm) and 343 Nm of torque (at 1400 rpm) via a Five-speed Manual. TOYOTA claims the HiLux SR uses 8.1L/100km of Diesel in the combined city and highway cycle while putting out 214g of CO2. It has a 76L fuel tank, meaning it should be able to travel 938km per full tank.

The HiLux measures 1680mm (66.1 inches) in height, 4980mm (196.1 inches) in length, 1760mm (69.3 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1560kg (6802.4 lbs) of unladen weight. The HiLux SR comes standard with 205/70 R15 front tyres and 205/70 R15 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2013 Toyota HiLux SR has a 177mm ground clearance with a 2250kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.583.

The HiLux has received a 4 star rating from ANCAP. The VIN number can be found on the Rear Driver Side Chassis and the compliance plate is located on the Pass Side Rear Door Pillar. An example VIN number would be similar to MR0CZ12G100123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota HiLux
Toyota HiLux SR Details
Price-
Used Price From DealerA$14,800
Trade-In ValueA$11,100
SeriesKUN16R MY12
Body Stylecab chassis
Release date01/09/2011
Discontinued date31/01/2014
Drive typeRWD
VIN plate locationRear Driver Side Chassis
Compliance plate locationPass Side Rear Door Pillar
VIN ExampleMR0CZ12G100123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X2
Safety ANCAP rating4 stars
Number of doors2
Seating capacity3
Toyota HiLux SR Engine Specifications
TypeDIESEL TURBO F/INJ
Size2982cc, 3.0L
Power @ RPM 126kW @ 3600rpm (169.0 hp)
Torque @ RPM343Nm @ 1400rpm (252.9 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio17.9
Power/weight ratio80.8kw/tonne
Bore/stroke96mm × 103mm (3.8in × 4.1in)
Toyota HiLux SR Drivetrain and Wheels
TransmissionFive-speed Manual
Drive typerear-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.8m (38.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size205/70 R15 - 6x15
Rear tyre & wheel size205/70 R15 - 6x15
Front suspension typeDouble wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeLive axle, Leaf spring, Gas damper
Toyota HiLux SR Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity76L
Fuel consumption (combined average)8.1L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range938.3km (583.0 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)214g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Toyota HiLux SR Dimensions
Length4980mm (196.1 inches)
Width1760mm (69.3 inches)
Height1680mm (66.1 inches)
Wheelbase3085mm (121.5 inches)
Front track1510mm (59.4 inches)
Rear track1510mm (59.4 inches)
Ground clearance177mm (7.0 inches)
Unladen weight1560kg (3439.8 lbs)
Gross Vehicle Mass2780kg (6129.9 lbs)
Gross Combination Mass-
Toyota HiLux SR Towing Capacity
Braked towing capacity2250kg (4961.3 lbs)
Unbraked towing capacity750kg (1653.8 lbs)
Toyota HiLux SR Warranty
Warranty length36 months
Warranty distance100,000km
Toyota HiLux SR Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Toyota HiLux SR Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Cruise Control
  • Central Locking Remote Control
  • Cloth Trim
  • Engine Immobiliser
  • Power Mirrors
  • Power Steering
  • Power Windows
  • Radio CD with 2 Speakers
  • Seatbelts - Pre-tensioners Front Seats
Optional Features
  • Air Conditioning - A$2,050
  • Metallic Paint - A$400
