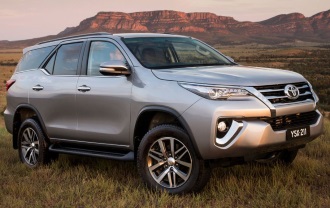

2017 Toyota Fortuner CRUSADE

2017 Toyota Fortuner CRUSADE Specifications

Toyota Logo
7.8L/100km
5 stars

About the 2017 Toyota Fortuner CRUSADE

The 2017 Toyota Fortuner CRUSADE is an all-wheel drive four-door wagon that was released to the Australian market on 01/10/2015 classified as a GUN156R. The Fortuner is regarded as a large SUV built in Thailand with prices from a dealer as a used car starting at A$39,600.

The Fortuner is an all-wheel drive 4 door with 7 seats, powered by a 2.8L DIESEL TURBO 4 engine that has 130 kW of power (at 3400 rpm) and 420 Nm of torque (at 1400 rpm) via a Six-speed Manual. TOYOTA claims the Fortuner CRUSADE uses 7.8L/100km of Diesel in the combined city and highway cycle while putting out 205g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1026km per full tank.

The Fortuner measures 1835mm (72.2 inches) in height, 4795mm (188.8 inches) in length, 1855mm (73.0 inches) in width with a 2750mm (108.3 inches) wheelbase that brings about a total of 2135kg (4706.9 lbs) of unladen weight. The Fortuner CRUSADE comes standard with 265/60 R18 front tyres and 265/60 R18 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2017 Toyota Fortuner CRUSADE has a 225mm ground clearance with a 2800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.583.

The Fortuner has received a 5 star rating from ANCAP. The VIN number can be found on the Right Rear Chassis Rail and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to MR0DA3FS800000111.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Toyota Fortuner
Toyota Fortuner CRUSADE Details
Price-
Used Price From DealerA$39,600
Trade-In ValueA$33,300
SeriesGUN156R
Body Stylefour-door wagon
Release date01/10/2015
Discontinued date31/10/2017
Drive typeAWD
VIN plate locationRight Rear Chassis Rail
Compliance plate locationLower Pass Side Centre Pillar
VIN ExampleMR0DA3FS800000111
Country of originThailand
SegmentLarge SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity7
Toyota Fortuner CRUSADE Engine Specifications
TypeDIESEL TURBO F/INJ
Size2753cc, 2.8L
Power @ RPM 130kW @ 3400rpm (174.3 hp)
Torque @ RPM420Nm @ 1400rpm (309.7 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio15.6
Power/weight ratio60.9kw/tonne
Bore/stroke92mm × 103.6mm (3.6in × 4.1in)
Toyota Fortuner CRUSADE Drivetrain and Wheels
TransmissionSix-speed Manual
Drive typeall-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.6m (38.1 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - VENTILATED
Front tyre & wheel size265/60 R18 - 7x18
Rear tyre & wheel size265/60 R18 - 7x18
Front suspension typeDouble wishbone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeMulti-link system, Coil Spring, Hydraulic double acting shock absorber, Anti roll bar
Toyota Fortuner CRUSADE Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)7.8L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range1025.6km (637.3 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)205g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Toyota Fortuner CRUSADE Dimensions
Length4795mm (188.8 inches)
Width1855mm (73.0 inches)
Height1835mm (72.2 inches)
Wheelbase2750mm (108.3 inches)
Front track1540mm (60.6 inches)
Rear track1555mm (61.2 inches)
Ground clearance225mm (8.9 inches)
Unladen weight2135kg (4706.9 lbs)
Gross Vehicle Mass2750kg (6062.7 lbs)
Gross Combination Mass-
Toyota Fortuner CRUSADE Towing Capacity
Braked towing capacity2800kg (6172.9 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Toyota Fortuner CRUSADE Warranty
Warranty length36 months
Warranty distance100,000km
Toyota Fortuner CRUSADE Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Toyota Fortuner CRUSADE Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Airbag Knee Driver
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Alarm System/Remote Anti Theft
  • Antenna - Roof-mounted Shark Fin type
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Ambient Temperature Display
  • 18 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Exterior Mirrors
  • Cruise Control
  • Chrome Exterior Door Handles
  • Carpet Floor Covering
  • Chrome Interior Door Handles
  • Centre Console Box - Multi-purpose
  • Child Seat Anchor Points
  • Child Seat - ISOFIX Anchorage System
  • Digital Audio Broadcast Radio
  • Digital Clock
  • Diff Locks
  • Dust and Pollen Filter
  • Daytime Running Lights - LED
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Electronic Stability Program
  • Emergency Stop Signal
  • Fog Lights - Front
  • Grab Handles - Front and Rear
  • Headrests - Adjustable on All Seats
  • Head Airbags
  • Headlights - Automatic Levelling
  • Hill Descent Control
  • Hill Holder
  • High Mounted Rear Stop Light
  • Instrument Panel Light Dimmer
  • Engine Immobiliser
  • Intermittent Wipers - Front
  • Keyless Entry and Drive
  • Leather Accented Upholstery
  • LED Headlights
  • Leather Gear Knob
  • Leather Steering Wheel
  • Multi Function Control Screen
  • Mud Flaps - Front and Rear
  • Multi Function Steering Wheel
  • Mobile Phone Connectivity
  • Parking Distance Control Rear
  • Power front seat Driver
  • Protective Glazing
  • Power Mirrors With Indicators & Folding
  • Power Steering
  • Power Tailgate
  • Power Windows
  • Radio CD with 6 Speakers
  • Roof Rails
  • Rear Lights - LED
  • Roof-mounted Rear Spoiler
  • Reversing Camera
  • Rear Wiper/Washer
  • Side Airbags
  • Satellite Navigation
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for Front Seats
  • Split Fold Rear Seat
  • Sport Seats
  • Side Steps
  • Spare Wheel - Full Size Alloy Wheel
  • Trip Computer
  • Traction Control System
  • Trailer Stability Control
Optional Features
  • Metallic Paint - A$550
