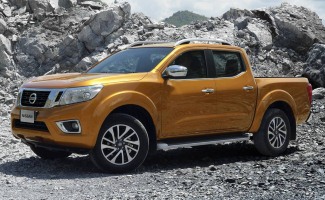

2016 Nissan Navara DX (4x2)

2016 Nissan Navara DX (4x2) Specifications

Nissan Logo
5 stars

About the 2016 Nissan Navara DX (4x2)

The 2016 Nissan Navara DX (4x2) is a rear-wheel drive double cab utility that was released to the Australian market on 01/11/2016 classified as a D23 SERIES II. The Navara is regarded as a pick up or cab chassis 4x2 built in Thailand with prices from a dealer as a used car starting at A$16,800.

The Navara is a rear-wheel drive 4 door with 5 seats, powered by a 2.5L INLINE 4 engine that has 122 kW of power (at 6000 rpm) and 238 Nm of torque (at 4000 rpm) via a Six-speed Manual. NISSAN claims the Navara DX (4x2) uses 9.9L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 230g of CO2. It has a 80L fuel tank, meaning it should be able to travel 808km per full tank.

The Navara measures 1760mm (69.3 inches) in height, 5255mm (206.9 inches) in length, 1790mm (70.5 inches) in width with a 3150mm (124.0 inches) wheelbase that brings about a total of 1618kg (3567.1 lbs) of unladen weight. The Navara DX (4x2) comes standard with 195 R15 front tyres and 195 R15 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first.

The 2016 Nissan Navara DX (4x2) has a 191mm ground clearance with a 1580kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.916.

The Navara has received a 5 star rating from ANCAP. The VIN number can be found on the and the compliance plate is located on the Lower Pass Side A-Pillar. An example VIN number would be similar to MNTCA4D23A0123456.


There are no current reviews of this variant. Click here to see reviews for other variants of the Nissan Navara
Nissan Navara DX (4x2) Details
Used Price From DealerA$16,800
Trade-In ValueA$12,800
Body Styledouble cab utility
Release date01/11/2016
Discontinued date31/01/2017
Drive typeRWD
VIN plate location-
Compliance plate locationLower Pass Side A-Pillar
VIN ExampleMNTCA4D23A0123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X2
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Nissan Navara DX (4x2) Engine Specifications
Size2488cc, 2.5L
Power @ RPM 122kW @ 6000rpm (163.6 hp)
Torque @ RPM238Nm @ 4000rpm (175.5 lb-ft)
Number of Valves16
Euro Rating-
Compression ratio10
Power/weight ratio75.4kw/tonne
Bore/stroke89mm × 100mm (3.5in × 3.9in)
Nissan Navara DX (4x2) Drivetrain and Wheels
TransmissionSix-speed Manual
Drive typerear-wheel drive
Turning circle11.8m (38.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size195 R15 - 5.5x15
Rear tyre & wheel size195 R15 - 5.5x15
Front suspension typeDouble wishbone, Coil Spring, Hydraulic double acting shock absorber, Anti roll bar
Rear suspension typeMulti-link system, Coil Spring, Hydraulic double acting shock absorber
Nissan Navara DX (4x2) Fuel Specifications
Fuel tank capacity80L
Fuel consumption (combined average)9.9L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range808.1km (502.1 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)230g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Nissan Navara DX (4x2) Dimensions
Length5255mm (206.9 inches)
Width1790mm (70.5 inches)
Height1760mm (69.3 inches)
Wheelbase3150mm (124.0 inches)
Front track1560mm (61.4 inches)
Rear track1560mm (61.4 inches)
Ground clearance191mm (7.5 inches)
Unladen weight1618kg (3567.1 lbs)
Gross Vehicle Mass2550kg (5621.8 lbs)
Gross Combination Mass4138kg (9122.7 lbs)
Nissan Navara DX (4x2) Towing Capacity
Braked towing capacity1580kg (3483.3 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Nissan Navara DX (4x2) Warranty
Warranty length36 months
Warranty distance100,000km
Nissan Navara DX (4x2) Servicing
Service interval (km)20,000 km
Service interval (months)12 months
Nissan Navara DX (4x2) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Airbag Knee Driver
  • Anti-lock Braking
  • Air Conditioning
  • Adjustable Driver Seat - Manual
  • Antenna - Roof-mounted Bee-sting type
  • Adjustable Steering Wheel - Tilt Only
  • AUX/USB Input Socket
  • Brake Assist
  • Body Coloured Front Bumper
  • Bottle Holders - Front and Rear
  • Cruise Control
  • Chrome Front Grille
  • Cup Holders - Front Seats
  • Cargo Tie Down Hooks/Rings
  • Central Locking
  • Centre Console Box - Multi-purpose
  • Child Proof Rear Door Locks
  • Child Seat Anchor Points
  • Collapsible Steering Column
  • Cloth Trim
  • Digital Clock
  • Dust and Pollen Filter
  • Door Pockets - Front and Rear
  • Daytime Running Lights - LED
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Glovebox Compartment
  • Grab Handles - Front and Rear
  • Head Airbags
  • Headrests - Adjustable Front Seats
  • Halogen Headlights
  • High Mounted Rear Stop Light
  • Illuminated Door Sill Panels
  • Engine Immobiliser
  • Intermittent Wipers - Variable
  • Mud Flaps - Front and Rear
  • Mobile Phone Connectivity
  • Map/Reading Lights - Front
  • Power Mirrors
  • Power Steering
  • Power Windows
  • Radio CD with 6 Speakers
  • Rear View Mirror Day/Night
  • Side Airbags
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for All Seats
  • Side Door Impact Beams
  • Sunglass Holder
  • Steering Wheel-mounted Audio Controls
  • Spare Wheel - Full Size Steel Wheel
  • Steering Wheel - Urethane Type
  • Trip Computer
  • Traction Control System
  • Vehicle Stability Control
Optional Features
  • Metallic Paint - A$495
