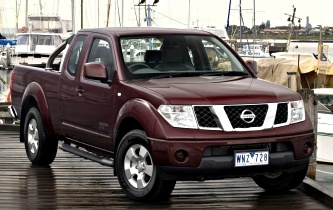

2013 Nissan Navara ST-X (4x4)

2013 Nissan Navara ST-X (4x4) Specifications

Nissan Logo
9.8L/100km
Not tested

About the 2013 Nissan Navara ST-X (4x4)

The 2013 Nissan Navara ST-X (4x4) is a four-wheel drive king cab chassis that was released to the Australian market on 01/02/2012 classified as a D40 MY12. The Navara is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$21,500.

The Navara is a four-wheel drive 2 door with 2 seats, powered by a 2.5L DIESEL TURBO 4 engine that has 126 kW of power (at 4000 rpm) and 403 Nm of torque (at 2000 rpm) via a Six-speed Manual. NISSAN claims the Navara ST-X (4x4) uses 9.8L/100km of Diesel in the combined city and highway cycle while putting out 264g of CO2. It has a 80L fuel tank, meaning it should be able to travel 816km per full tank.

The Navara measures 1770mm (69.7 inches) in height, 5125mm (201.8 inches) in length, 1850mm (72.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1769kg (3900.0 lbs) of unladen weight. The Navara ST-X (4x4) comes standard with 255/70 R16 front tyres and 255/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2013 Nissan Navara ST-X (4x4) has a 205mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.692.

The VIN number can be found on the Mid Driver Side Chassis and the compliance plate is located on the Lower Pass Side Centre Pilla. An example VIN number would be similar to MNTNCUD40A0123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Nissan Navara
Nissan Navara ST-X (4x4) Details
Price-
Used Price From DealerA$21,500
Trade-In ValueA$17,000
SeriesD40 MY12
Body Styleking cab chassis
Release date01/02/2012
Discontinued date31/05/2013
Drive type4x4
VIN plate locationMid Driver Side Chassis
Compliance plate locationLower Pass Side Centre Pilla
VIN ExampleMNTNCUD40A0123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP ratingNot tested
Number of doors2
Seating capacity2
Nissan Navara ST-X (4x4) Engine Specifications
TypeDIESEL TURBO F/INJ
Size2488cc, 2.5L
Power @ RPM 126kW @ 4000rpm (169.0 hp)
Torque @ RPM403Nm @ 2000rpm (297.2 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio16.5
Power/weight ratio71.2kw/tonne
Bore/stroke89mm × 100mm (3.5in × 3.9in)
Nissan Navara ST-X (4x4) Drivetrain and Wheels
TransmissionSix-speed Manual
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle13.2m (43.3 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size255/70 R16 - 7x16
Rear tyre & wheel size255/70 R16 - 7x16
Front suspension typeDouble wishbone, Coil Spring, Hydraulic double acting shock absorber
Rear suspension typeLeaf spring, Hydraulic double acting shock absorber
Nissan Navara ST-X (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)9.8L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range816.3km (507.2 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)264g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Nissan Navara ST-X (4x4) Dimensions
Length5125mm (201.8 inches)
Width1850mm (72.8 inches)
Height1770mm (69.7 inches)
Wheelbase3200mm (126.0 inches)
Front track1570mm (61.8 inches)
Rear track1570mm (61.8 inches)
Ground clearance205mm (8.1 inches)
Unladen weight1769kg (3900.0 lbs)
Gross Vehicle Mass2860kg (6305.2 lbs)
Gross Combination Mass5860kg (12919.1 lbs)
Nissan Navara ST-X (4x4) Towing Capacity
Braked towing capacity3000kg (6613.9 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Nissan Navara ST-X (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Nissan Navara ST-X (4x4) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Nissan Navara ST-X (4x4) Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • 16 Inch Alloy Wheels
  • Brake Assist
  • Cruise Control
  • CD with 6 CD Stacker
  • Central Locking Remote Control
  • Engine Immobiliser
  • Power Mirrors
  • Power Steering
  • Power Windows
  • Radio CD with 4 Speakers
  • Seatbelts - Pre-tensioners Front Seats
  • Side Steps
  • Vehicle Stability Control
Optional Features-
