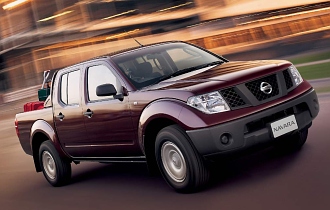

2013 Nissan Navara RX (4x4)

2013 Nissan Navara RX (4x4) Specifications

Nissan Logo
4 stars

About the 2013 Nissan Navara RX (4x4)

The 2013 Nissan Navara RX (4x4) is a four-wheel drive dual cab chassis that was released to the Australian market on 01/02/2012 classified as a D40 MY12. The Navara is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$19,300.

The Navara is a four-wheel drive 4 door with 5 seats, powered by a 2.5L DIESEL TURBO 4 engine that has 128 kW of power (at 4000 rpm) and 403 Nm of torque (at 2000 rpm) via a Five-speed Automatic. NISSAN claims the Navara RX (4x4) uses 10.5L/100km of Diesel in the combined city and highway cycle while putting out 283g of CO2. It has a 80L fuel tank, meaning it should be able to travel 762km per full tank.

The Navara measures 1895mm (74.6 inches) in height, 5220mm (205.5 inches) in length, 1774mm (69.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1930kg (4254.9 lbs) of unladen weight. The Navara RX (4x4) comes standard with 235/70 R16 front tyres and 235/70 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2013 Nissan Navara RX (4x4) has a 190mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.538.

The Navara has received a 4 star rating from ANCAP. The VIN number can be found on the Pass Side Eng Scuttle and the compliance plate is located on the Lower Pass Side Centre Pilla. An example VIN number would be similar to VSKC%ND40AO123456.


There are no current reviews of this variant. Click here to see reviews for other variants of the Nissan Navara
Nissan Navara RX (4x4) Details
Used Price From DealerA$19,300
Trade-In ValueA$15,100
SeriesD40 MY12
Body Styledual cab chassis
Release date01/02/2012
Discontinued date31/05/2013
Drive type4x4
VIN plate locationPass Side Eng Scuttle
Compliance plate locationLower Pass Side Centre Pilla
VIN ExampleVSKC%ND40AO123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating4 stars
Number of doors4
Seating capacity5
Nissan Navara RX (4x4) Engine Specifications
Size2488cc, 2.5L
Power @ RPM 128kW @ 4000rpm (171.7 hp)
Torque @ RPM403Nm @ 2000rpm (297.2 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
Euro Rating-
Compression ratio16.5
Power/weight ratio66.3kw/tonne
Bore/stroke89mm × 100mm (3.5in × 3.9in)
Nissan Navara RX (4x4) Drivetrain and Wheels
TransmissionFive-speed Automatic
Drive typefour-wheel drive
Turning circle13.3m (43.6 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size235/70 R16 - 7x16
Rear tyre & wheel size235/70 R16 - 7x16
Front suspension typeDouble wishbone, Coil Spring, Hydraulic double acting shock absorber
Rear suspension typeLive axle, Leaf spring, Hydraulic double acting shock absorber
Nissan Navara RX (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)10.5L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range761.9km (473.4 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)283g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Nissan Navara RX (4x4) Dimensions
Length5220mm (205.5 inches)
Width1774mm (69.8 inches)
Height1895mm (74.6 inches)
Wheelbase3200mm (126.0 inches)
Front track1570mm (61.8 inches)
Rear track1570mm (61.8 inches)
Ground clearance190mm (7.5 inches)
Unladen weight1930kg (4254.9 lbs)
Gross Vehicle Mass2805kg (6184.0 lbs)
Gross Combination Mass5805kg (12797.8 lbs)
Nissan Navara RX (4x4) Towing Capacity
Braked towing capacity3000kg (6613.9 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Nissan Navara RX (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Nissan Navara RX (4x4) Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Nissan Navara RX (4x4) Options
Standard Features
  • Anti-lock Braking
  • Air Conditioning
  • Cruise Control
  • Central Locking Remote Control
  • Cloth Trim
  • Engine Immobiliser
  • Power Steering
  • Power Windows
  • Radio CD with 2 Speakers
  • Vehicle Stability Control
Optional Features
  • Metallic Paint - A$495
