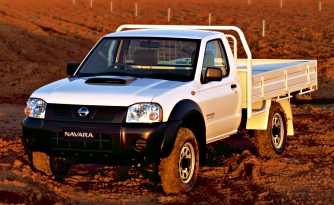

2012 Nissan Navara DX (4x4)

2012 Nissan Navara DX (4x4) Specifications

Nissan Logo
9.1L/100km
Not tested

About the 2012 Nissan Navara DX (4x4)

The 2012 Nissan Navara DX (4x4) is a four-wheel drive cab chassis that was released to the Australian market on 01/04/2011 classified as a D22 SERIES 5. The Navara is regarded as a pick up or cab chassis 4x4 built in Japan with prices from a dealer as a used car starting at A$11,200.

The Navara is a four-wheel drive 2 door with 3 seats, powered by a 2.5L DIESEL TURBO 4 engine that has 98 kW of power (at 3600 rpm) and 304 Nm of torque (at 2000 rpm) via a Five-speed Manual. NISSAN claims the Navara DX (4x4) uses 9.1L/100km of Diesel in the combined city and highway cycle while putting out 250g of CO2. It has a 75L fuel tank, meaning it should be able to travel 824km per full tank.

The Navara measures 1700mm (66.9 inches) in height, 4945mm (194.7 inches) in length, 1825mm (71.9 inches) in width with a 2950mm (116.1 inches) wheelbase that brings about a total of 1723kg (3798.6 lbs) of unladen weight. The Navara DX (4x4) comes standard with 205 R16 front tyres and 205 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2012 Nissan Navara DX (4x4) has a 225mm ground clearance with a 2800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.375.

The VIN number can be found on the Mid Driver Side Chassis and the compliance plate is located on the Driver Side Eng Scuttle. An example VIN number would be similar to JN1CPUD22A0123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Nissan Navara
Nissan Navara DX (4x4) Details
Price-
Used Price From DealerA$11,200
Trade-In ValueA$8,000
SeriesD22 SERIES 5
Body Stylecab chassis
Release date01/04/2011
Discontinued date31/10/2015
Drive type4x4
VIN plate locationMid Driver Side Chassis
Compliance plate locationDriver Side Eng Scuttle
VIN ExampleJN1CPUD22A0123456
Country of originJapan
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP ratingNot tested
Number of doors2
Seating capacity3
Nissan Navara DX (4x4) Engine Specifications
TypeDIESEL TURBO F/INJ
Size2488cc, 2.5L
Power @ RPM 98kW @ 3600rpm (131.4 hp)
Torque @ RPM304Nm @ 2000rpm (224.2 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio16.5
Power/weight ratio56.9kw/tonne
Bore/stroke89mm × 100mm (3.5in × 3.9in)
Nissan Navara DX (4x4) Drivetrain and Wheels
TransmissionFive-speed Manual
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12m (39.4 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size205 R16 - 6x16
Rear tyre & wheel size205 R16 - 6x16
Front suspension typeDouble wishbone, Coil Spring, Hydraulic shock absorber, Anti roll bar
Rear suspension typeLeaf spring, Hydraulic double acting shock absorber
Nissan Navara DX (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity75L
Fuel consumption (combined average)9.1L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range824.2km (512.1 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)250g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Nissan Navara DX (4x4) Dimensions
Length4945mm (194.7 inches)
Width1825mm (71.9 inches)
Height1700mm (66.9 inches)
Wheelbase2950mm (116.1 inches)
Front track1525mm (60.0 inches)
Rear track1505mm (59.3 inches)
Ground clearance225mm (8.9 inches)
Unladen weight1723kg (3798.6 lbs)
Gross Vehicle Mass2860kg (6305.2 lbs)
Gross Combination Mass-
Nissan Navara DX (4x4) Towing Capacity
Braked towing capacity2800kg (6172.9 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Nissan Navara DX (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Nissan Navara DX (4x4) Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Nissan Navara DX (4x4) Options
Standard Features
  • Air Conditioning
  • Central Locking
  • Engine Immobiliser
  • Limited Slip Differential
  • Power Steering
  • Power Windows
  • Radio CD with 2 Speakers
Optional Features
  • Dual Front Airbags Package - A$500
  • Metallic Paint - A$300
