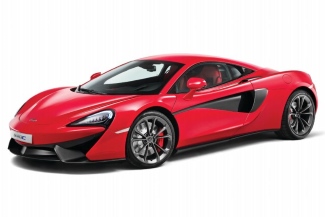

2018 Mclaren 540C two-door coupe

2018 Mclaren 540C two-door coupe Specifications

McLaren Logo
Not tested

About the 2018 Mclaren 540C two-door coupe

The 2018 Mclaren 540C two-door coupe is a rear-wheel drive two-door coupe that was released to the Australian market on 01/05/2016 classified as a . The 540C is regarded as a sports car built in Germany with prices from a dealer as a used car starting at A$0.

The 540C is a rear-wheel drive 2 door with 2 seats, powered by a 3.8L V8 engine that has 397 kW of power (at 7500 rpm) and 540 Nm of torque (at 5000 rpm) via a Seven-speed Auto Dual Clutch. MCLAREN claims the 540C two-door coupe uses 25.5L/100km of Premium Unleaded Petrol in the combined city and highway cycle while putting out 258g of CO2. It has a 72L fuel tank, meaning it should be able to travel 282km per full tank.

The 540C measures 1202mm (47.3 inches) in height, 4530mm (178.3 inches) in length, 1914mm (75.4 inches) in width with a 2670mm (105.1 inches) wheelbase that brings about a total of 1344kg (2963.0 lbs) of unladen weight. The 540C two-door coupe comes standard with 225/35 R19 front tyres and 285/35 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2018 Mclaren 540C two-door coupe has a 100mm ground clearance.

The VIN number can be found on the On Floor Behind Driver Seat and the compliance plate is located on the Pass Side on Door Apert.. An example VIN number would be similar to SBM13CADXGW000124.


There are no current reviews of this variant. Click here to see reviews for other variants of the Mclaren 540C
Mclaren 540C two-door coupe Details
Body Styletwo-door coupe
Release date01/05/2016
Discontinued date31/05/2018
Drive typeRWD
VIN plate locationOn Floor Behind Driver Seat
Compliance plate locationPass Side on Door Apert.
VIN ExampleSBM13CADXGW000124
Country of originGermany
SegmentSports Car
Safety ANCAP ratingNot tested
Number of doors2
Seating capacity2
Mclaren 540C two-door coupe Engine Specifications
Size3799cc, 3.8L
Power @ RPM 397kW @ 7500rpm (532.4 hp)
Torque @ RPM540Nm @ 5000rpm (398.2 lb-ft)
Number of Valves32
Euro Rating-
Compression ratio-
Power/weight ratio295.4kw/tonne
Mclaren 540C two-door coupe Drivetrain and Wheels
TransmissionSeven-speed Auto Dual Clutch
Drive typerear-wheel drive
Turning circle-
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - VENTILATED
Front tyre & wheel size225/35 R19 - 8x19
Rear tyre & wheel size285/35 R20 - 10x20
Front suspension typeDouble wishbone, Adaptive Damping Control
Rear suspension typeDouble wishbone, Adaptive Damping Control
Mclaren 540C two-door coupe Fuel Specifications
Fuel tank capacity72L
Fuel consumption (combined average)25.5L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range282.4km (175.5 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)258g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Mclaren 540C two-door coupe Dimensions
Length4530mm (178.3 inches)
Width1914mm (75.4 inches)
Height1202mm (47.3 inches)
Wheelbase2670mm (105.1 inches)
Front track1671mm (65.8 inches)
Rear track1618mm (63.7 inches)
Ground clearance100mm (3.9 inches)
Unladen weight1344kg (2963.0 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Mclaren 540C two-door coupe Towing Capacity
Braked towing capacity-
Unbraked towing capacity-
Mclaren 540C two-door coupe Warranty
Warranty length36 months
Warranty distanceUnlimited km
Mclaren 540C two-door coupe Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Mclaren 540C two-door coupe Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Automatic Air Con / Climate Control
  • Alarm System/Remote Anti Theft
  • Brake Assist
  • Cruise Control
  • Central Locking Remote Control
  • Daytime Running Lights - LED
  • Electronic Stability Program
  • Hill Holder
  • Engine Immobiliser
  • Keyless Entry and Drive
  • LED Headlights
  • Limited Slip Differential
  • Leather Steering Wheel
  • Power Mirrors With Folding
  • Radio CD with 4 Speakers
  • Rear Diffuser
  • Rear Lights - LED
  • Rear Spoiler
  • Sport Seats
  • Trip Computer
  • Traction Control System
Optional Features
  • Interior Pack - A$13,700
  • Luxury Pack - A$18,680
  • Leather Trim - A$3,200
  • Nappa Leather - A$6,800
  • Paint Colour Special - A$3,620
  • Parking Distance Control Rear - A$2,560
  • Premium Paint - A$9,140
  • Reversing Camera - A$2,640
  • Security Pack - A$10,520
  • Sports Exhaust System - A$8,500
  • Racing Sports Seats - A$13,120
  • Sound System with 8 Speakers - A$4,260
  • Premium Sound System - A$9,080
