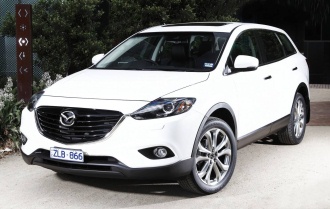

2016 Mazda CX-9 CLASSIC (FWD)

2016 Mazda CX-9 CLASSIC (FWD) Specifications

Mazda Logo
11L/100km
5 stars

About the 2016 Mazda CX-9 CLASSIC (FWD)

The 2016 Mazda CX-9 CLASSIC (FWD) is a front-wheel drive four-door wagon that was released to the Australian market on 01/10/2013 classified as a MY14. The CX-9 is regarded as a large SUV built in Japan with prices from a dealer as a used car starting at $25,000.

The CX-9 is a front-wheel drive 4 door with 7 seats, powered by a 3.7L V6 engine that has 204 kW of power (at 6250 rpm) and 366 Nm of torque (at 4250 rpm) via a 6 SP AUTO ACTIVEMATIC. MAZDA claims the CX-9 CLASSIC (FWD) uses 11L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 257g of CO2. It has a 76L fuel tank, meaning it should be able to travel 691km per full tank.

The CX-9 measures 1728mm (68.0 inches) in height, 5106mm (201.0 inches) in length, 1936mm (76.2 inches) in width with a 2875mm (113.2 inches) wheelbase that brings about a total of 1939kg (4274.8 lbs) of unladen weight. The CX-9 CLASSIC (FWD) comes standard with 245/60 R18 front tyres and 245/60 R18 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first.

The 2016 Mazda CX-9 CLASSIC (FWD) has a 200mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.464.

The CX-9 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Driver Side Inner Guard. An example VIN number would be similar to JM0TB10A100123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Mazda CX-9
Mazda CX-9 CLASSIC (FWD) Details
Price-
Used Price From Dealer$25,000
Trade-In Value$20,200
SeriesMY14
Body Stylefour-door wagon
Release date01/10/2013
Discontinued date31/07/2016
Drive typeFWD
VIN plate locationDriver Side Front Floor
Compliance plate locationDriver Side Inner Guard
VIN ExampleJM0TB10A100123456
Country of originJapan
SegmentLarge SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity7
Mazda CX-9 CLASSIC (FWD) Engine Specifications
TypeMULTI POINT F/INJ
Size3726cc, 3.7L
Power @ RPM 204kW @ 6250rpm (273.6 hp)
Torque @ RPM366Nm @ 4250rpm (269.9 lb-ft)
Cylinderssix-cylinder
Number of Valves24
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio10.3
Power/weight ratio105.2kw/tonne
Bore/stroke95.5mm × 86.7mm (3.7in × 3.4in)
Mazda CX-9 CLASSIC (FWD) Drivetrain and Wheels
Transmission6 SP AUTO ACTIVEMATIC
Drive typefront-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.4m (37.4 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - VENTILATED
Front tyre & wheel size245/60 R18 - 7.5x18
Rear tyre & wheel size245/60 R18 - 7.5x18
Front suspension typeMacPherson strut, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeMulti-link system, Coil Spring, Gas damper, Anti roll bar
Mazda CX-9 CLASSIC (FWD) Fuel Specifications
Fuel typeUNLEADED PETROL
Fuel tank capacity76L
Fuel consumption (combined average)11L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range690.9km (429.3 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)257g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Mazda CX-9 CLASSIC (FWD) Dimensions
Length5106mm (201.0 inches)
Width1936mm (76.2 inches)
Height1728mm (68.0 inches)
Wheelbase2875mm (113.2 inches)
Front track1654mm (65.1 inches)
Rear track1644mm (64.7 inches)
Ground clearance200mm (7.9 inches)
Unladen weight1939kg (4274.8 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Mazda CX-9 CLASSIC (FWD) Towing Capacity
Braked towing capacity2000kg (4409.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Mazda CX-9 CLASSIC (FWD) Warranty
Warranty length36 months
Warranty distanceUnlimited km
Mazda CX-9 CLASSIC (FWD) Servicing
Service interval (km)10,000 km
Service interval (months)12 months
Mazda CX-9 CLASSIC (FWD) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Con & Climate Control Multi Zone
  • Adjustable Driver Seat - Manual
  • Antenna - In Rear Glass
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Ambient Temperature Display
  • AUX/USB Input Socket
  • 18 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Bumpers
  • Body Coloured Exterior Mirrors
  • Cruise Control
  • CD with 6 CD Stacker
  • Chrome Exhaust Tip/s
  • Cup Holders - Front & Rear
  • Cargo Tie Down Hooks/Rings
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Proof Rear Door Locks
  • Child Seat Anchor Points
  • Cloth Trim
  • Digital Clock
  • Driver Foot Rest
  • Dust & Pollen Filter
  • Door Pockets - Front Seat
  • Dynamic Stability Control
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Emergency Stop Signal
  • Fog Lights - Front
  • Grab Handles - Front & Rear
  • Headrests - Adjustable on All Seats
  • Head Airbags
  • Headlights - Auto On/Off Function
  • Halogen Headlights
  • High Mounted Rear Stop Light
  • Illuminated - Entry/Exit with Delayed Fade
  • Illuminated Glove Box Compartment
  • Instrument Panel Light Dimmer
  • Engine Immobiliser
  • Luggage/Cargo Area Light/s
  • Leather Gear Knob
  • Leather Steering Wheel
  • Mud Flaps - Front & Rear
  • MP3 Compatible Audio/CD Player
  • Mobile Phone Connectivity
  • Map/Reading Lights - Front
  • Power Mirrors
  • Power Steering
  • Power Windows
  • Rear Centre Armrest
  • Radio CD with 6 Speakers
  • Remote Fuel Lid Release
  • Rear Spoiler
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear Window Demister
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Side Door Impact Beams
  • Side Front AirBags
  • Split Fold Rear Seat
  • Sunglass Holder
  • Seatback Pockets - Front Seats
  • Storage Recess - Under Floor in Rear Cargo Area
  • Sunvisors with Vanity Mirrors & Illumination
  • Steering Wheel-mounted Audio Controls
  • Spare Wheel - Space Saver/Temporary
  • Trip Computer
  • Traction Control System
  • Tinted Windows
Optional Features-
