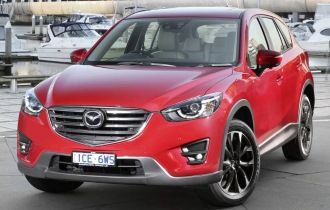

2016 Mazda CX-5 MAXX (4x2)

2016 Mazda CX-5 MAXX (4x2) Specifications

Mazda Logo
6.4L/100km
5 stars

About the 2016 Mazda CX-5 MAXX (4x2)

The 2016 Mazda CX-5 MAXX (4x2) is a front-wheel drive four-door wagon that was released to the Australian market on 01/02/2015 classified as a MY15. The CX-5 is regarded as a medium SUV built in Japan with prices from a dealer as a used car starting at A$17,900.

The CX-5 is a front-wheel drive 4 door with 5 seats, powered by a 2.0L INLINE 4 engine that has 114 kW of power (at 6000 rpm) and 200 Nm of torque (at 4000 rpm) via a Six-speed Manual. MAZDA claims the CX-5 MAXX (4x2) uses 6.4L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 149g of CO2. It has a 56L fuel tank, meaning it should be able to travel 875km per full tank.

The CX-5 measures 1710mm (67.3 inches) in height, 4540mm (178.7 inches) in length, 1840mm (72.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1475kg (3251.8 lbs) of unladen weight. The CX-5 MAXX (4x2) comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first.

The 2016 Mazda CX-5 MAXX (4x2) has a 150mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.705.

The CX-5 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0KE107100123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Mazda CX-5
Mazda CX-5 MAXX (4x2) Details
Price-
Used Price From DealerA$17,900
Trade-In ValueA$13,600
SeriesMY15
Body Stylefour-door wagon
Release date01/02/2015
Discontinued date31/10/2016
Drive typeFWD
VIN plate locationDriver Side Front Floor
Compliance plate locationLower Pass Side Centre Pillar
VIN ExampleJM0KE107100123456
Country of originJapan
SegmentMedium SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Mazda CX-5 MAXX (4x2) Engine Specifications
TypeMULTI POINT F/INJ
Size1997cc, 2.0L
Power @ RPM 114kW @ 6000rpm (152.9 hp)
Torque @ RPM200Nm @ 4000rpm (147.5 lb-ft)
Cylindersfour-cylinder
Number of Valves16
ValvesVARIABLE DOUBLE OVERHEAD CAM
Euro Rating-
Compression ratio13
Power/weight ratio77.3kw/tonne
Bore/stroke83.5mm × 91.2mm (3.3in × 3.6in)
Mazda CX-5 MAXX (4x2) Drivetrain and Wheels
TransmissionSix-speed Manual
Drive typefront-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.2m (36.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size225/65 R17 - 7x17
Rear tyre & wheel size225/65 R17 - 7x17
Front suspension typeMacPherson strut, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeMulti-link system, Coil Spring, Gas damper, Anti roll bar
Mazda CX-5 MAXX (4x2) Fuel Specifications
Fuel typeUNLEADED PETROL
Fuel tank capacity56L
Fuel consumption (combined average)6.4L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range875.0km (543.7 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)149g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Mazda CX-5 MAXX (4x2) Dimensions
Length4540mm (178.7 inches)
Width1840mm (72.4 inches)
Height1710mm (67.3 inches)
Wheelbase2700mm (106.3 inches)
Front track1585mm (62.4 inches)
Rear track1590mm (62.6 inches)
Ground clearance150mm (5.9 inches)
Unladen weight1475kg (3251.8 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Mazda CX-5 MAXX (4x2) Towing Capacity
Braked towing capacity1800kg (3968.3 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Mazda CX-5 MAXX (4x2) Warranty
Warranty length36 months
Warranty distanceUnlimited km
Mazda CX-5 MAXX (4x2) Servicing
Service interval (km)10,000 km
Service interval (months)12 months
Mazda CX-5 MAXX (4x2) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • Adjustable Driver Seat - Manual
  • Antenna - Roof-mounted Shark Fin type
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Ambient Temperature Display
  • AUX/USB Input Socket
  • Brake Assist
  • Body Coloured Bumpers
  • Body Coloured Exterior Door Handles
  • Body Coloured Exterior Mirrors
  • Bottle Holders - Front and Rear
  • Cruise Control
  • Chrome Exhaust Tip(s)
  • Cargo Cover
  • Cup Holders - Front Seats
  • Centre Console Box - Multi-purpose
  • Child Proof Rear Door Locks
  • Child Seat Anchor Points
  • Cloth Trim
  • Door Pockets - Front and Rear
  • Dynamic Stability Control
  • Electronic Brake Force Distribution
  • Electric Parking Brake
  • Emergency Stop Signal
  • Glovebox Compartment
  • Headrests - Adjustable on All Seats
  • Head Airbags
  • Hill Holder
  • Halogen Headlights
  • High Mounted Rear Stop Light
  • Illuminated - Entry/Exit with Delayed Fade
  • Instrument Panel Light Dimmer
  • Engine Immobiliser
  • Intermittent Wipers - Variable
  • Keyless Entry and Drive
  • Luggage/Cargo Area Light(s)
  • Multi Function Control Screen
  • Multi Function Steering Wheel
  • MP3 Compatible Audio/CD Player
  • Mobile Phone Connectivity
  • Map/Reading Lights - Front
  • Power Mirrors With Indicators & Folding
  • Power Steering
  • Power Windows
  • Radio CD with 4 Speakers
  • Remote Fuel Lid Release
  • Rear Spoiler
  • Reversing Camera
  • Rear Window Demister
  • Rear Wiper/Washer
  • Side Airbags
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for All Seats
  • Side Door Impact Beams
  • Split Fold Rear Seat
  • Sunglass Holder
  • Seatback Pockets - Front Seats
  • Start/Stop Button
  • Sunvisors with Vanity Mirrors
  • Spare Wheel - Space Saver/Temporary
  • Trip Computer
  • Traction Control System
  • Tyre Pressure Monitoring System
  • Tinted Windows
Optional Features
  • Premium Paint - A$250
