G20 PURE VISION (FWD)

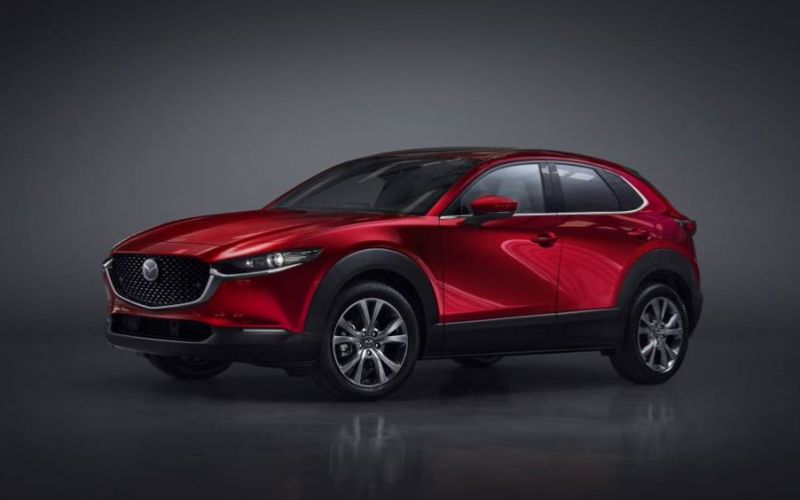

2020 Mazda CX-30 G20 PURE VISION (FWD)

2020 Mazda CX-30 G20 PURE VISION (FWD) Specifications

Mazda Logo
MRLP A$31,490
6.5L/100km

The 2020 Mazda CX-30 G20 PURE VISION (FWD) is a front-wheel drive four-door wagon that was released to the Australian market on 01/11/2019 classified as a CX-30A. The CX-30 is regarded as a small SUV built in Japan with prices starting at A$31,490 before on-road costs.

The CX-30 is an front-wheel drive 4 door with 5 seats, powered by a 2.0L INLINE 4 engine that has 114 kW of power (at 6000 rpm) and 200 Nm of torque (at 4000 rpm) via a Six-speed Automatic. MAZDA claims the CX-30 G20 PURE VISION (FWD) uses 6.5L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 152g of CO2. It has a 51L fuel tank, meaning it should be able to travel 785km per full tank.

The CX-30 measures 1540mm (60.6 inches) in height, 4395mm (173.0 inches) in length, 1795mm (70.7 inches) in width with a 2655mm (104.5 inches) wheelbase that brings about a total of 1339kg (5854.3 lbs) of unladen weight. The CX-30 G20 PURE VISION (FWD) comes standard with 215/65 R16 98H front tyres and 215/65 R16 98H rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first.

The 2020 Mazda CX-30 G20 PURE VISION (FWD) has a 175mm ground clearance with a 1200kg braked and 600kg unbraked towing capacity. It has a final gear ratio of 4.367.

The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to MM0DM2W7A0W123456.


Mazda CX-30 G20 PURE VISION (FWD) Details
PriceA$31,490
SeriesCX-30A
Body Stylefour-door wagon
Release date01/11/2019
Discontinued date-
Drive typeFWD
VIN plate locationDriver Side Front Floor
Compliance plate locationLower Pass Side Centre Pillar
VIN ExampleMM0DM2W7A0W123456
Country of originJapan
SegmentSmall SUV
Safety ANCAP rating-
Number of doors4
Seating capacity5
Mazda CX-30 G20 PURE VISION (FWD) Engine Specifications
TypeDIRECT FUEL INJ
Size1998cc, 2.0L
Power @ RPM 114kW @ 6000rpm (152.9 hp)
Torque @ RPM200Nm @ 4000rpm (147.5 lb-ft)
Cylindersfour-cylinder
Number of Valves16
ValvesVARIABLE DOUBLE OVERHEAD CAM
Euro RatingEURO 5
Compression ratio13
Power/weight ratio85.1kw/tonne
Bore/stroke83.5mm × 91.2mm (3.3in × 3.6in)
Mazda CX-30 G20 PURE VISION (FWD) Drivetrain and Wheels
TransmissionSix-speed Automatic
Drive typefront-wheel drive
Steering typeELECTRIC POWER STEERING
Turning circle10.6m (34.8 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size215/65 R16 98H - 6.5Jx16
Rear tyre & wheel size215/65 R16 98H - 6.5Jx16
Front suspension typeMacPherson strut
Rear suspension typeTorsion beam
Mazda CX-30 G20 PURE VISION (FWD) Fuel Specifications
Fuel typeUNLEADED PETROL
Fuel tank capacity51L
Fuel consumption (combined average)6.5L / 100km
Fuel consumption city (average)8L / 100km
Fuel consumption highway (average)5.6L / 100km
Vehicle range784.6km (487.5 miles)
Emission standardEURO 5
E10 compatibleYES
CO2 emissions (combined)152g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Mazda CX-30 G20 PURE VISION (FWD) Dimensions
Length4395mm (173.0 inches)
Width1795mm (70.7 inches)
Height1540mm (60.6 inches)
Wheelbase2655mm (104.5 inches)
Front track1565mm (61.6 inches)
Rear track1565mm (61.6 inches)
Ground clearance175mm (6.9 inches)
Unladen weight1339kg (2952.5 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Mazda CX-30 G20 PURE VISION (FWD) Towing Capacity
Braked towing capacity1200kg (2646.0 lbs)
Unbraked towing capacity600kg (1323.0 lbs)
Mazda CX-30 G20 PURE VISION (FWD) Warranty
Warranty length60 months
Warranty distanceUnlimited km
Mazda CX-30 G20 PURE VISION (FWD) Servicing
Service interval (km)10,000 km
Service interval (months)12 months
Mazda CX-30 G20 PURE VISION (FWD) Options
Standard Features
  • Dual Front Airbags Package
  • Automatic Brake Hold
  • Airbag Knee Driver
  • Active Blind Spot Assist
  • Active High Beam Control
  • Apple Car Play
  • Active Info Display
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Android Auto
  • 16 Inch Alloy Wheels
  • Body Coloured Exterior Door Handles
  • Body Coloured Exterior Mirrors
  • Bottle Holders - Front and Rear
  • Blind Spot Monitoring
  • Bluetooth Connectivity
  • Cruising & Traffic Support
  • Curtain Airbags
  • Centre Console Storage
  • Cruise Control with Stop & Go
  • Chrome Exhaust Tip(s)
  • Cup Holders - Front Seats
  • Central Locking Remote Control
  • Convex Mirror Left Side
  • Child Proof Rear Door Locks
  • Child Seat - ISOFIX Anchorage System
  • Cloth Trim
  • Cushion Tilt Adjustment - Driver
  • Cushion Tilt Adjustment - Front Passenger
  • Cyclist Recognition
  • Crumple Zone Front & Rear
  • Driver Awareness Alert
  • Digital Audio Broadcast Radio +
  • Driver Alert System
  • Driver Foot Rest
  • Driver Monitoring
  • Dynamic Stability Control
  • Driver Seat Height Adjustable
  • Daytime Running Lights
  • Emergency Brake Assist
  • Electronic Brake Force Distribution
  • Electric Parking Brake
  • Electric Power Steering
  • Emergency Stop Signal
  • Electronic Throttle Control
  • Front Centre Armrest
  • Front Cross Traffic Alert
  • Forward Obstruction Warning
  • Glovebox Compartment
  • Headrests - Adjustable on All Seats
  • Headlights - Auto On/Off Function
  • Hands-Free Facility
  • Hill Start Assist
  • High Mounted Rear Stop Light
  • Illuminated - Entry/Exit with Delayed Fade
  • Instrument Panel Light Dimmer
  • Engine Immobiliser
  • I-stop
  • Intermittent Wipers - Rear
  • Luggage/Cargo Area Light(s)
  • LED Headlights
  • Lane Keeping Assist
  • Mazda Connect
  • Multi Function Control Screen
  • Multi Function Display
  • Multi Function Steering Wheel
  • Map/Reading Lights - Front & Rear
  • Parking Distance Control Rear
  • Parking Distance Control Front
  • Pedestrian Recognition
  • Power Mirrors
  • Power Mirrors With Auto Folding
  • Power Tailgate
  • Power Windows With One-Touch Operation
  • Radar Cruise Control
  • Radio AM/FM
  • Rear Cross Traffic Alert and Braking
  • Radio Data System
  • Rear Lights - LED
  • Rake & Slide Adjustment Front Seats
  • Rear Spoiler Hatch Mounted
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear Window Demister
  • Rear Wiper/Washer
  • Side Airbags - Front Seats side
  • Satellite Navigation
  • Seatbelts - Height Adjustable Front Seats
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for All Seats
  • Smart Brake Support
  • Surround Camera System
  • Side Door Impact Beams
  • Split Fold Rear Seat
  • Skyactiv-Body
  • Skyactiv-Chassis
  • Skyactiv-Vehicle Dynamics
  • Seatback Pocket - Front Passenger Seat
  • Sound System with 8 Speakers
  • Start/Stop Button
  • Sunvisors with Vanity Mirrors
  • Spare Wheel - Space Saver/Temporary
  • Trip Computer
  • Traction Control System
  • TFT LCD Information Display
  • Tyre Pressure Monitoring System
  • Traffic Sign Recognition
  • Torque Vectoring Plus
  • Tinted Windows
  • USB Input Socket
  • Vision Pack
  • Whiplash Protection System
  • Windscreen With Sunband
Optional Features
  • Metallic Paint Premium - A$495
