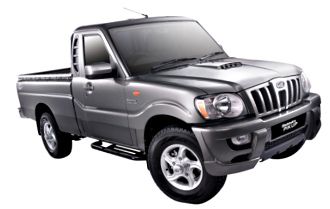

2017 Mahindra Pik-Up S5 11 UPGRADE

2017 Mahindra Pik-Up S5 11 UPGRADE Specifications

Mahindra Logo
Not tested

About the 2017 Mahindra Pik-Up S5 11 UPGRADE

The 2017 Mahindra Pik-Up S5 11 UPGRADE is a rear-wheel drive 2D UTILITY that was released to the Australian market on 01/08/2011 classified as a S5 11 UPGRADE. The Pik-Up is regarded as a pick up or cab chassis 4x2 built in India with prices from a dealer as a used car starting at A$12,700.

The Pik-Up is a rear-wheel drive 2 door with 2 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 85 kW of power (at 4000 rpm) and 270 Nm of torque (at 1600 rpm) via a Five-speed Manual. MAHINDRA claims the Pik-Up S5 11 UPGRADE uses 8.4L/100km of Diesel in the combined city and highway cycle while putting out 260g of CO2. It has a 80L fuel tank, meaning it should be able to travel 952km per full tank.

The Pik-Up measures 1880mm (74.0 inches) in height, 5118mm (201.5 inches) in length, 1770mm (69.7 inches) in width with a 3040mm (119.7 inches) wheelbase that brings about a total of 1990kg (4387.2 lbs) of unladen weight. The Pik-Up S5 11 UPGRADE comes standard with 245/75 R16 front tyres and 245/75 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first.

The 2017 Mahindra Pik-Up S5 11 UPGRADE has a 210mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.55.

The VIN number can be found on the Front Driver Side Chassis and the compliance plate is located on the Driver Side Centre B-Pillar. An example VIN number would be similar to MA1TW2HGN#2%00001.


There are no current reviews of this variant. Click here to see reviews for other variants of the Mahindra Pik-Up
Mahindra Pik-Up S5 11 UPGRADE Details
Used Price From DealerA$12,700
Trade-In ValueA$9,300
SeriesS5 11 UPGRADE
Body Style2D UTILITY
Release date01/08/2011
Discontinued date31/01/2017
Drive typeRWD
VIN plate locationFront Driver Side Chassis
Compliance plate locationDriver Side Centre B-Pillar
VIN ExampleMA1TW2HGN#2%00001
Country of originIndia
SegmentPick Up or Cab Chassis 4X2
Safety ANCAP ratingNot tested
Number of doors2
Seating capacity2
Mahindra Pik-Up S5 11 UPGRADE Engine Specifications
Size2179cc, 2.2L
Power @ RPM 85kW @ 4000rpm (114.0 hp)
Torque @ RPM270Nm @ 1600rpm (199.1 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
Euro Rating-
Compression ratio-
Power/weight ratio42.7kw/tonne
Bore/stroke85mm × 96mm (3.3in × 3.8in)
Mahindra Pik-Up S5 11 UPGRADE Drivetrain and Wheels
TransmissionFive-speed Manual
Drive typerear-wheel drive
Turning circle12.6m (41.3 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size245/75 R16 - 6.5x16
Rear tyre & wheel size245/75 R16 - 6.5x16
Front suspension typeTorsion bar, Hydraulic double acting shock absorber, Anti roll bar
Rear suspension typeLeaf spring, Hydraulic double acting shock absorber
Mahindra Pik-Up S5 11 UPGRADE Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)8.4L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range952.4km (591.8 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)260g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Mahindra Pik-Up S5 11 UPGRADE Dimensions
Length5118mm (201.5 inches)
Width1770mm (69.7 inches)
Height1880mm (74.0 inches)
Wheelbase3040mm (119.7 inches)
Front track1450mm (57.1 inches)
Rear track1450mm (57.1 inches)
Ground clearance210mm (8.3 inches)
Unladen weight1990kg (4387.2 lbs)
Gross Vehicle Mass3150kg (6944.6 lbs)
Gross Combination Mass-
Mahindra Pik-Up S5 11 UPGRADE Towing Capacity
Braked towing capacity2500kg (5511.5 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Mahindra Pik-Up S5 11 UPGRADE Warranty
Warranty length36 months
Warranty distance100,000km
Mahindra Pik-Up S5 11 UPGRADE Servicing
Service interval (km)10,000 km
Service interval (months)6 months
Mahindra Pik-Up S5 11 UPGRADE Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • Alarm System/Remote Anti Theft
  • Central Locking Remote Control
  • Cloth Trim
  • Fog Lights - Front
  • Engine Immobiliser
  • Limited Slip Differential
  • Power Mirrors
  • Power Steering
  • Power Windows
  • Radio CD with 2 Speakers
  • Seatbelts - Pre-tensioners Front Seats
  • Side Steps
Optional Features-
