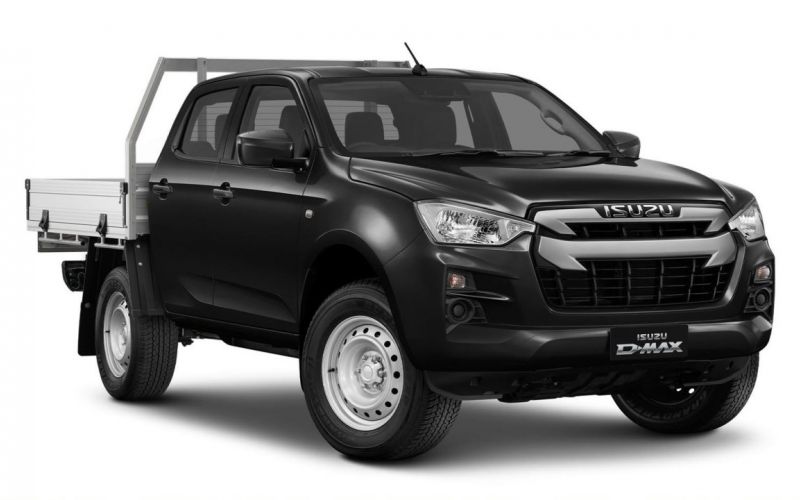

2022 Isuzu D-Max SX (4x2) HIGH-RIDE Specifications
About the 2022 Isuzu D-Max SX (4x2) HIGH-RIDE
The 2022 Isuzu D-Max SX (4x2) HIGH-RIDE is a two-wheel drive crew cab chassis that was released to the Australian market on 01/10/2021 classified as a RG MY22. The D-Max is regarded as a pick up or cab chassis 4x2 built in Thailand with prices starting at $42,700 before on-road costs.
The D-Max is a two-wheel drive 4 door with 5 seats, powered by a 3.0L DIESEL TURBO 4 engine that has 140 kW of power (at 3600 rpm) and 450 Nm of torque (at 1600 rpm) via a 6 SP AUTO SEQ SPORTS MODE. ISUZU claims the D-Max SX (4x2) HIGH-RIDE uses 8L/100km of Diesel in the combined city and highway cycle while putting out 207g of CO2. It has a 76L fuel tank, meaning it should be able to travel 950km per full tank.
The D-Max measures 1800mm (70.9 inches) in height, 5285mm (208.1 inches) in length, 1870mm (73.6 inches) in width with a 3125mm (123.0 inches) wheelbase that brings about a total of 1825kg (4023.4 lbs) of unladen weight. The D-Max SX (4x2) HIGH-RIDE comes standard with 255/65 R17 front tyres and 255/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.
The 2022 Isuzu D-Max SX (4x2) HIGH-RIDE has a 235mm ground clearance with a 3500kg braked and 700kg unbraked towing capacity. It has a final gear ratio of 3.727.
The D-Max has received a 5 star rating from ANCAP. The VIN number can be found on the Mid Front Driver Chassis and the compliance plate is located on the RHS Corner of Deflector Panel. An example VIN number would be similar to MPATFR40JH*100001.
Reviews
There are no current reviews of this variant. Click here to see reviews for other variants of the Isuzu D-Max| Isuzu D-Max SX (4x2) HIGH-RIDE Details | |
|---|---|
| Price | $42,700 |
| Series | RG MY22 |
| Body Style | crew cab chassis |
| Release date | 01/10/2021 |
| Discontinued date | - |
| Drive type | 4x2 |
| VIN plate location | Mid Front Driver Chassis |
| Compliance plate location | RHS Corner of Deflector Panel |
| VIN Example | MPATFR40JH*100001 |
| Country of origin | Thailand |
| Segment | Pick Up or Cab Chassis 4X2 |
| Safety ANCAP rating | 5 stars |
| Number of doors | 4 |
| Seating capacity | 5 |
| Isuzu D-Max SX (4x2) HIGH-RIDE Engine Specifications | |
| Type | TURBO CDI |
| Size | 2999cc, 3.0L |
| Power @ RPM | 140kW @ 3600rpm (187.7 hp) |
| Torque @ RPM | 450Nm @ 1600rpm (331.9 lb-ft) |
| Cylinders | turbocharged four-cylinder |
| Number of Valves | 16 |
| Valves | DUAL OVERHEAD CAM |
| Euro Rating | EURO 5 |
| Compression ratio | 16.3 |
| Power/weight ratio | 76.7kw/tonne |
| Bore/stroke | 95.4mm × 104.9mm (3.7in × 4.1in) |
| Isuzu D-Max SX (4x2) HIGH-RIDE Drivetrain and Wheels | |
| Transmission | 6 SP AUTO SEQ SPORTS MODE |
| Drive type | two-wheel drive |
| Steering type | ELECTRIC POWER STEERING |
| Turning circle | 12.5m (41.0 ft) |
| Brake (front) type | DISC - VENTILATED |
| Brake (rear) type | DRUM |
| Front tyre & wheel size | 255/65 R17 - 7x17 |
| Rear tyre & wheel size | 255/65 R17 - 7x17 |
| Front suspension type | Independent, Fully Floating Axle, High Ride, Coil Spring, Gas pressurised shock absorber, Upper and Lower WishBone, Stabiliser bar |
| Rear suspension type | Leaf Spring - Heavy Duty, Gas pressurised shock absorber, Rigid Semi-floating Banjo Axle, Semi elliptic leaf spring |
| Isuzu D-Max SX (4x2) HIGH-RIDE Fuel Specifications | |
| Fuel type | DIESEL |
| Fuel tank capacity | 76L |
| Fuel consumption (combined average) | 8L / 100km |
| Fuel consumption city (average) | 9.8L / 100km |
| Fuel consumption highway (average) | 6.9L / 100km |
| Vehicle range | 950.0km (590.3 miles) |
| Emission standard | EURO 5 |
| E10 compatible | - |
| CO2 emissions (combined) | 207g / 100km |
| CO2 emissions (city) | 254g / 100km |
| CO2 emissions (highway) | 180g / 100km |
| Isuzu D-Max SX (4x2) HIGH-RIDE Dimensions | |
| Length | 5285mm (208.1 inches) |
| Width | 1870mm (73.6 inches) |
| Height | 1800mm (70.9 inches) |
| Wheelbase | 3125mm (123.0 inches) |
| Front track | 1570mm (61.8 inches) |
| Rear track | 1570mm (61.8 inches) |
| Ground clearance | 235mm (9.3 inches) |
| Unladen weight | 1825kg (4023.4 lbs) |
| Gross Vehicle Mass | 3000kg (6613.9 lbs) |
| Gross Combination Mass | 5850kg (12897.0 lbs) |
| Isuzu D-Max SX (4x2) HIGH-RIDE Towing Capacity | |
| Braked towing capacity | 3500kg (7716.2 lbs) |
| Unbraked towing capacity | 700kg (1543.2 lbs) |
| Isuzu D-Max SX (4x2) HIGH-RIDE Warranty | |
| Warranty length | 72 months |
| Warranty distance | 150,000km |
| Isuzu D-Max SX (4x2) HIGH-RIDE Servicing | |
| Service interval (km) | 15,000 km |
| Service interval (months) | 12 months |
| Isuzu D-Max SX (4x2) HIGH-RIDE Options | |
| Standard Features |
|
| Optional Features |
|
