HIGHLANDER TTR (FWD)

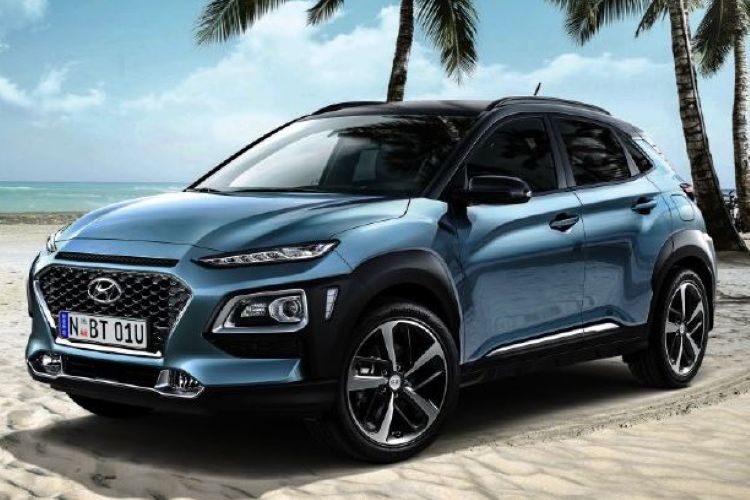

2020 Hyundai Kona HIGHLANDER TTR (FWD)

2020 Hyundai Kona HIGHLANDER TTR (FWD) Specifications

Hyundai Logo
MRLP A$36,660
7.2L/100km
5 stars

The 2020 Hyundai Kona HIGHLANDER TTR (FWD) is a front-wheel drive four-door wagon that was released to the Australian market on 01/07/2019 classified as a OS.3 MY20. The Kona is regarded as a small SUV built in Korea with prices starting at A$36,660 before on-road costs.

The Kona is an front-wheel drive 4 door with 5 seats, powered by a 2.0L INLINE 4 engine that has 110 kW of power (at 6200 rpm) and 180 Nm of torque (at 4500 rpm) via a Six-speed Automatic. HYUNDAI claims the Kona HIGHLANDER TTR (FWD) uses 7.2L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 169g of CO2. It has a 50L fuel tank, meaning it should be able to travel 694km per full tank.

The Kona measures 1550mm (61.0 inches) in height, 4165mm (164.0 inches) in length, 1800mm (70.9 inches) in width with a 2600mm (102.4 inches) wheelbase that brings about a total of 1383kg (5733.0 lbs) of unladen weight. The Kona HIGHLANDER TTR (FWD) comes standard with 235/45 R18 front tyres and 235/45 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2020 Hyundai Kona HIGHLANDER TTR (FWD) has a 170mm ground clearance with a 1300kg braked and 600kg unbraked towing capacity. It has a final gear ratio of 3.51.

The Kona has received a 5 star rating from ANCAP. The VIN number can be found on the Rear Lower Driver Side EngBay and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMHK181AMHU123456.


Hyundai Kona HIGHLANDER TTR (FWD) Details
PriceA$36,660
SeriesOS.3 MY20
Body Stylefour-door wagon
Release date01/07/2019
Discontinued date-
Drive typeFWD
VIN plate locationRear Lower Driver Side EngBay
Compliance plate locationPass Side Lower A-Pillar
VIN ExampleKMHK181AMHU123456
Country of originKorea
SegmentSmall SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Hyundai Kona HIGHLANDER TTR (FWD) Engine Specifications
TypeMULTI POINT F/INJ
Size1999cc, 2.0L
Power @ RPM 110kW @ 6200rpm (147.5 hp)
Torque @ RPM180Nm @ 4500rpm (132.7 lb-ft)
Cylindersfour-cylinder
Number of Valves16
ValvesVARIABLE DOUBLE OVERHEAD CAM
Euro RatingEURO 5
Compression ratio12.5
Power/weight ratio79.5kw/tonne
Bore/stroke81mm × 97mm (3.2in × 3.8in)
Hyundai Kona HIGHLANDER TTR (FWD) Drivetrain and Wheels
TransmissionSix-speed Automatic
Drive typefront-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle10.6m (34.8 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - SOLID
Front tyre & wheel size235/45 R18 - 7.5Jx18
Rear tyre & wheel size235/45 R18 - 7.5Jx18
Front suspension typeMacPherson strut
Rear suspension typeTorsion bar
Hyundai Kona HIGHLANDER TTR (FWD) Fuel Specifications
Fuel typeUNLEADED PETROL
Fuel tank capacity50L
Fuel consumption (combined average)7.2L / 100km
Fuel consumption city (average)9.7L / 100km
Fuel consumption highway (average)5.8L / 100km
Vehicle range694.4km (431.5 miles)
Emission standardEURO 5
E10 compatible-
CO2 emissions (combined)169g / 100km
CO2 emissions (city)226g / 100km
CO2 emissions (highway)136g / 100km
Hyundai Kona HIGHLANDER TTR (FWD) Dimensions
Length4165mm (164.0 inches)
Width1800mm (70.9 inches)
Height1550mm (61.0 inches)
Wheelbase2600mm (102.4 inches)
Front track1599mm (63.0 inches)
Rear track1568mm (61.7 inches)
Ground clearance170mm (6.7 inches)
Unladen weight1383kg (3049.5 lbs)
Gross Vehicle Mass1830kg (4035.2 lbs)
Gross Combination Mass-
Hyundai Kona HIGHLANDER TTR (FWD) Towing Capacity
Braked towing capacity1300kg (2866.5 lbs)
Unbraked towing capacity600kg (1323.0 lbs)
Hyundai Kona HIGHLANDER TTR (FWD) Warranty
Warranty length60 months
Warranty distanceUnlimited km
Hyundai Kona HIGHLANDER TTR (FWD) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Hyundai Kona HIGHLANDER TTR (FWD) Options
Standard Features
  • Additional 12 Volt Socket/s
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Automatic Air Con / Climate Control
  • Active High Beam Control
  • Apple Car Play
  • Adaptive Headlights w/Auto Levelling & Cornering
  • Active Heated/Ventilated Front Seats
  • Alarm System/Remote Anti Theft
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Android Auto
  • AUX/USB Input Socket
  • 18 Inch Alloy Wheels
  • Brake Assist
  • Bottle Holders - Front and Rear
  • Blind Spot Monitoring
  • Bluetooth Connectivity
  • Curtain Airbags
  • Cruise Control Intelligent/Active
  • Cargo Net - On Floor
  • Chrome Grille Surround
  • Cup Holders - Front Seats
  • Coat Hanger/Hook(s)
  • Cup Holders - Rear Seats
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Proof Rear Door Locks
  • Child Seat Anchor Points
  • Child Seat - ISOFIX Anchorage System
  • Digital Audio Broadcast Radio +
  • Driver Fatigue Detection
  • Driver Mode Selection
  • Dust and Pollen Filter
  • Door Pockets - Front and Rear
  • Daytime Running Lights - LED
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Electronic Stability Control
  • Emergency Stop Signal
  • Front Centre Armrest
  • Forward Collision Warning
  • Fog Lights - Front
  • Fog Lights - Rear
  • Glovebox Compartment
  • Grab Handles - Front and Rear
  • Headrests - Adjustable on All Seats
  • Hill Descent Control
  • Heated Front Seats
  • Headlining Special
  • Hill Start Assist
  • High Mounted Rear Stop Light
  • Heated Steering Wheel
  • Head Up Display
  • Illuminated - Entry/Exit with Delayed Fade
  • Engine Immobiliser
  • Impact Sensing Auto Door Unlock
  • Keyless Entry
  • Leather Accented Gear Knob
  • Leather Accented Steering Wheel
  • Leather Accented Upholstery
  • Luggage/Cargo Area Light(s)
  • LED Headlights
  • LED Indicators
  • Lane Keeping Assist
  • Leather Trim
  • Multi Function Control Screen
  • Multi Function Display
  • Multi Function Steering Wheel
  • Map/Reading Lights - Front
  • One Touch Convenience Turn Signal
  • Push Button Start
  • Parking Distance Control Rear
  • Parking Distance Control Front
  • Power Front Seat Driver 10 Way
  • Power Front Seat Passenger 8 Way
  • Power front seat Driver
  • Power front seat Passenger
  • Power Mirrors With Auto Folding
  • Power Mirrors Convex - Heated
  • Power Mirrors With Folding
  • Power Exterior Mirrors - Heated
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Power Windows - Driver With One-Touch Operation
  • Power Windows - Front With One-Touch Operation
  • Rear Air Vents
  • Rear Centre Armrest
  • Rear Cross Traffic Alert
  • Roof Rails
  • Rear Privacy Glass
  • Rollover Protection System
  • Roof-mounted Rear Spoiler
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror Auto Dimming
  • Rear Window Demister
  • Rear Wiper/Washer
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for All Seats
  • Solar Control Glass
  • Speed Sensing Auto Door Lock
  • Split Fold Rear Seat
  • Sunglass Holder
  • Smart Key
  • Storage Net - Rear Side Luggage Compartment
  • Seatback Pocket - Driver Seat
  • Seatback Pocket - Front Passenger Seat
  • Seatback Pockets - Front Seats
  • Panoramic Sunroof
  • Sound System with 8 Speakers
  • Sunvisor Extensions
  • Sunvisors with Vanity Mirrors & Illumination
  • Spare Wheel - Space Saver/Temporary
  • Thorax Airbag(s)
  • Trip Computer
  • Traction Control System
  • Tail Lights - Special
  • Tyre Pressure Monitoring System
  • Ventilated Front Seats
  • Vehicle Stability Control
  • Wireless Phone Charge
Optional Features
  • Mica Paint - A$595
  • Metallic Paint - A$595
