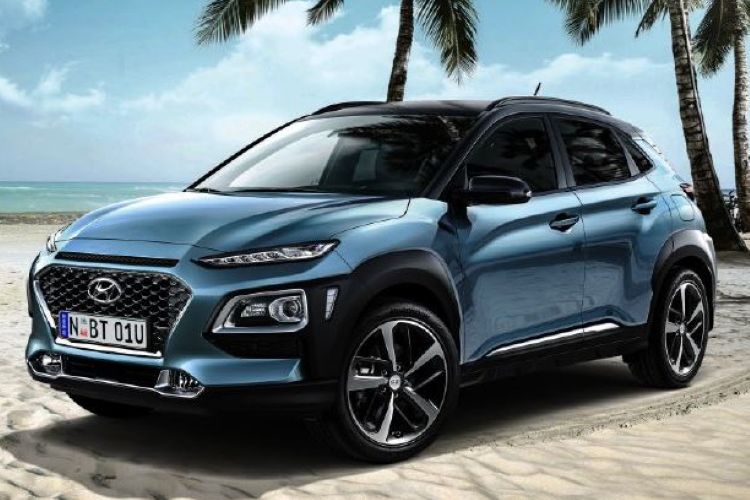

2020 Hyundai Kona ACTIVE (AWD)

2020 Hyundai Kona ACTIVE (AWD) Specifications

Hyundai Logo
MRLP A$29,590
6.7L/100km
5 stars

The 2020 Hyundai Kona ACTIVE (AWD) is a all-wheel drive four-door wagon that was released to the Australian market on 01/07/2019 classified as a OS.3 MY20. The Kona is regarded as a small SUV built in Korea with prices starting at A$29,590 before on-road costs.

The Kona is an all-wheel drive 4 door with 5 seats, powered by a 1.6L TURBO 4 engine that has 130 kW of power (at 5500 rpm) and 285 Nm of torque (at 1500 rpm) via a Seven-speed Auto Dual Clutch. HYUNDAI claims the Kona ACTIVE (AWD) uses 6.7L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 153g of CO2. It has a 50L fuel tank, meaning it should be able to travel 746km per full tank.

The Kona measures 1550mm (61.0 inches) in height, 4165mm (164.0 inches) in length, 1800mm (70.9 inches) in width with a 2600mm (102.4 inches) wheelbase that brings about a total of 1507kg (5733.0 lbs) of unladen weight. The Kona ACTIVE (AWD) comes standard with 205/60 R16 front tyres and 205/60 R16 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first.

The 2020 Hyundai Kona ACTIVE (AWD) has a 170mm ground clearance with a 1250kg braked and 600kg unbraked towing capacity. It has a final gear ratio of 3.611.

The Kona has received a 5 star rating from ANCAP. The VIN number can be found on the Rear Lower Driver Side EngBay and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMHK1815WHU123456.


Hyundai Kona ACTIVE (AWD) Details
PriceA$29,590
SeriesOS.3 MY20
Body Stylefour-door wagon
Release date01/07/2019
Discontinued date-
Drive typeAWD
VIN plate locationRear Lower Driver Side EngBay
Compliance plate locationPass Side Lower A-Pillar
VIN ExampleKMHK1815WHU123456
Country of originKorea
SegmentSmall SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Hyundai Kona ACTIVE (AWD) Engine Specifications
TypeTUR GASOLINE DIR INJ
Size1591cc, 1.6L
Power @ RPM 130kW @ 5500rpm (174.3 hp)
Torque @ RPM285Nm @ 1500rpm (210.2 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesVARIABLE DOUBLE OVERHEAD CAM
Euro RatingEURO 5
Compression ratio10
Power/weight ratio86.3kw/tonne
Bore/stroke77mm × 85.44mm (3.0in × 3.3in)
Hyundai Kona ACTIVE (AWD) Drivetrain and Wheels
TransmissionSeven-speed Auto Dual Clutch
Drive typeall-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle10.6m (34.8 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - SOLID
Front tyre & wheel size205/60 R16 - 6.5Jx16
Rear tyre & wheel size205/60 R16 - 6.5Jx16
Front suspension typeMacPherson strut
Rear suspension typeMulti-link system
Hyundai Kona ACTIVE (AWD) Fuel Specifications
Fuel typeUNLEADED PETROL
Fuel tank capacity50L
Fuel consumption (combined average)6.7L / 100km
Fuel consumption city (average)8L / 100km
Fuel consumption highway (average)6L / 100km
Vehicle range746.3km (463.7 miles)
Emission standardEURO 5
E10 compatible-
CO2 emissions (combined)153g / 100km
CO2 emissions (city)182g / 100km
CO2 emissions (highway)136g / 100km
Hyundai Kona ACTIVE (AWD) Dimensions
Length4165mm (164.0 inches)
Width1800mm (70.9 inches)
Height1550mm (61.0 inches)
Wheelbase2600mm (102.4 inches)
Front track1575mm (62.0 inches)
Rear track1584mm (62.4 inches)
Ground clearance170mm (6.7 inches)
Unladen weight1507kg (3322.9 lbs)
Gross Vehicle Mass1940kg (4277.7 lbs)
Gross Combination Mass-
Hyundai Kona ACTIVE (AWD) Towing Capacity
Braked towing capacity1250kg (2756.3 lbs)
Unbraked towing capacity600kg (1323.0 lbs)
Hyundai Kona ACTIVE (AWD) Warranty
Warranty length60 months
Warranty distanceUnlimited km
Hyundai Kona ACTIVE (AWD) Servicing
Service interval (km)10,000 km
Service interval (months)12 months
Hyundai Kona ACTIVE (AWD) Options
Standard Features
  • Additional 12 Volt Socket/s
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • Apple Car Play
  • Adjustable Front Seats - Manual
  • Alarm System/Remote Anti Theft
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Android Auto
  • AUX/USB Input Socket
  • 16 Inch Alloy Wheels
  • Brake Assist
  • Bottle Holders - Front and Rear
  • Bluetooth Connectivity
  • Curtain Airbags
  • Cruise Control
  • Cup Holders - Front Seats
  • Coat Hanger/Hook(s)
  • Cup Holders - Rear Seats
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Proof Rear Door Locks
  • Child Seat Anchor Points
  • Child Seat - ISOFIX Anchorage System
  • Driver Awareness Alert
  • Driver Mode Selection
  • Dust and Pollen Filter
  • Door Pockets - Front and Rear
  • Daytime Running Lights - LED
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Electronic Stability Control
  • Emergency Stop Signal
  • Front Centre Armrest
  • Forward Collision Mitigation
  • Forward Collision Warning
  • Fog Lights - Rear
  • Glovebox Compartment
  • Grab Handles - Front and Rear
  • Headrests - Adjustable on All Seats
  • Hill Descent Control
  • Hill Start Assist
  • High Mounted Rear Stop Light
  • Hyundai Smartsense
  • Illuminated - Entry/Exit with Delayed Fade
  • Engine Immobiliser
  • Impact Sensing Auto Door Unlock
  • Intermittent Wipers - Front
  • Keyless Entry
  • Leather Accented Gear Knob
  • Leather Accented Steering Wheel
  • Luggage/Cargo Area Light(s)
  • Lane Keeping Assist
  • Multi Function Control Screen
  • Multi Function Display
  • Multi Function Steering Wheel
  • Map/Reading Lights - Front
  • One Touch Convenience Turn Signal
  • Parking Distance Control Rear
  • Pedestrian Recognition
  • Projector Headlights
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Power Windows - Driver With One-Touch Operation
  • Rear Air Vents
  • Rear Centre Armrest
  • Roof Rails
  • Rollover Protection System
  • Roof-mounted Rear Spoiler
  • Reversing Camera
  • Rear View Mirror Day/Night
  • Rear Window Demister
  • Rear Wiper/Washer
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Seatbelts - Reminder for All Seats
  • Speed Sensing Auto Door Lock
  • Split Fold Rear Seat
  • Sunglass Holder
  • Storage Net - Rear Side Luggage Compartment
  • Sound System with 8 Speakers
  • Sunvisor Extensions
  • Sunvisors with Vanity Mirrors & Illumination
  • Spare Wheel - Space Saver/Temporary
  • Thorax Airbag(s)
  • Trip Computer
  • Traction Control System
  • Tyre Pressure Monitoring System
  • Vehicle Stability Control
Optional Features
  • Mica Paint - A$595
  • Metallic Paint - A$595
