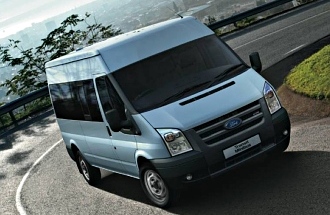

2012 Ford Transit MID (MWB)

2012 Ford Transit MID (MWB) Specifications

Ford Logo
9.7L/100km
Not tested

About the 2012 Ford Transit MID (MWB)

The 2012 Ford Transit MID (MWB) is a rear-wheel drive van that was released to the Australian market on 01/03/2008 classified as a VM MY08. The Transit is regarded as a van built in United Kingdom with prices from a dealer as a used car starting at A$15,900.

The Transit is a rear-wheel drive 2 door with 3 seats, powered by a 2.4L DIESEL TURBO 4 engine that has 103 kW of power (at 3500 rpm) and 375 Nm of torque (at 2000 rpm) via a Six-speed Manual. FORD claims the Transit MID (MWB) uses 9.7L/100km of Diesel in the combined city and highway cycle while putting out 251g of CO2. It has a 80L fuel tank, meaning it should be able to travel 825km per full tank.

The Transit measures 2387mm (94.0 inches) in height, 5230mm (205.9 inches) in length, 1974mm (77.7 inches) in width with a 3300mm (129.9 inches) wheelbase that brings about a total of 1985kg (4376.2 lbs) of unladen weight. The Transit MID (MWB) comes standard with 215/75 R16 front tyres and 215/75 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2012 Ford Transit MID (MWB) has a 100mm ground clearance with a 2800kg braked and 750kg unbraked towing capacity.

The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WF0XXXTTFX6T12345.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Ford Transit
Ford Transit MID (MWB) Details
Price-
Used Price From DealerA$15,900
Trade-In ValueA$11,900
SeriesVM MY08
Body Stylevan
Release date01/03/2008
Discontinued date29/02/2012
Drive typeRWD
VIN plate locationDriver Side Front Wheel Arch
Compliance plate locationPass Side Front Floor
VIN ExampleWF0XXXTTFX6T12345
Country of originUnited Kingdom
SegmentVan
Safety ANCAP ratingNot tested
Number of doors2
Seating capacity3
Ford Transit MID (MWB) Engine Specifications
TypeDIESEL TURBO F/INJ
Size2402cc, 2.4L
Power @ RPM 103kW @ 3500rpm (138.1 hp)
Torque @ RPM375Nm @ 2000rpm (276.5 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio18.3
Power/weight ratio51.9kw/tonne
Bore/stroke89.9mm × 94.6mm (3.5in × 3.7in)
Ford Transit MID (MWB) Drivetrain and Wheels
TransmissionSix-speed Manual
Drive typerear-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.9m (39.0 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size215/75 R16 - 5.5x16
Rear tyre & wheel size215/75 R16 - 5.5x16
Front suspension typeMacPherson strut, Coil Spring, Hydraulic double acting shock absorber, Anti roll bar
Rear suspension typeLeaf spring, Gas damper
Ford Transit MID (MWB) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)9.7L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range824.7km (512.4 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)251g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Ford Transit MID (MWB) Dimensions
Length5230mm (205.9 inches)
Width1974mm (77.7 inches)
Height2387mm (94.0 inches)
Wheelbase3300mm (129.9 inches)
Front track1737mm (68.4 inches)
Rear track1710mm (67.3 inches)
Ground clearance100mm (3.9 inches)
Unladen weight1985kg (4376.2 lbs)
Gross Vehicle Mass3300kg (7275.2 lbs)
Gross Combination Mass6100kg (13448.2 lbs)
Ford Transit MID (MWB) Towing Capacity
Braked towing capacity2800kg (6172.9 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Ford Transit MID (MWB) Warranty
Warranty length36 months
Warranty distance100,000km
Ford Transit MID (MWB) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Ford Transit MID (MWB) Options
Standard Features
  • Airbag Driver
  • Anti-lock Braking
  • Air Conditioning
  • Alarm System/Remote Anti Theft
  • Central Locking Remote Control
  • Electronic Brake Force Distribution
  • Engine Immobiliser
  • Power Mirrors
  • Power Steering
  • Power Windows
  • Radio CD with 2 Speakers
Optional Features
  • Airbag Passenger - A$500
  • Cruise Control - A$500
  • Dynamic Stability Control - A$500
  • Metallic Paint - A$500
  • Parking Distance Control Rear - A$500
  • Professional Pack - A$2,000
  • Side Airbags - A$500
