XLT 2.0 (4x4)

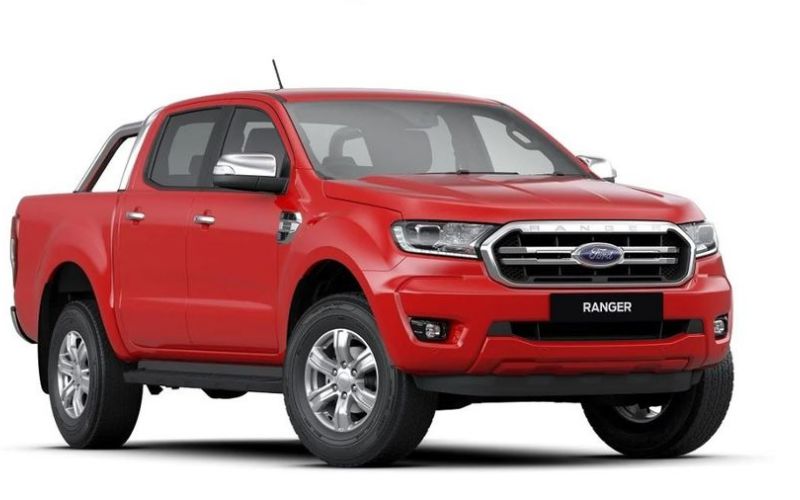

2020 Ford Ranger XLT 2.0 (4x4)

2020 Ford Ranger XLT 2.0 (4x4) Specifications

Ford Logo
7.4L/100km
5 stars

The 2020 Ford Ranger XLT 2.0 (4x4) is a four-wheel drive super cab pick up that was released to the Australian market on 01/11/2019 classified as a PX MKIII MY20.25. The Ranger is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$56,600.

The Ranger is an four-wheel drive 4 door with 4 seats, powered by a 2.0L DIESEL TWIN TURBO 4 engine that has 157 kW of power (at 3750 rpm) and 500 Nm of torque (at 1750 rpm) via a Ten-speed Automatic. FORD claims the Ranger XLT 2.0 (4x4) uses 7.4L/100km of Diesel in the combined city and highway cycle while putting out 195g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1081km per full tank.

The Ranger measures 1810mm (71.3 inches) in height, 5351mm (210.7 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 2095kg (7100.1 lbs) of unladen weight. The Ranger XLT 2.0 (4x4) comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2020 Ford Ranger XLT 2.0 (4x4) has a 237mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.

The Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to MNA#M2$%0&W123456.


Ford Ranger XLT 2.0 (4x4) Details
Price-
Used Price From DealerA$56,600
Trade-In ValueA$49,200
SeriesPX MKIII MY20.25
Body Stylesuper cab pick up
Release date01/11/2019
Discontinued date31/03/2020
Drive type4x4
VIN plate locationCentre Of Chassis Frame
Compliance plate locationLower Driver Side B-Pillar
VIN ExampleMNA#M2$%0&W123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating5 stars
Number of doors4
Seating capacity4
Ford Ranger XLT 2.0 (4x4) Engine Specifications
TypeBI TURBO CDI
Size1996cc, 2.0L
Power @ RPM 157kW @ 3750rpm (210.5 hp)
Torque @ RPM500Nm @ 1750rpm (368.7 lb-ft)
Cylinderstwin-turbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro RatingEURO 5
Compression ratio16
Power/weight ratio74.9kw/tonne
Bore/stroke84mm × 90mm (3.3in × 3.5in)
Ford Ranger XLT 2.0 (4x4) Drivetrain and Wheels
TransmissionTen-speed Automatic
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.7m (41.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size265/65 R17 - 8x17
Rear tyre & wheel size265/65 R17 - 8x17
Front suspension typeMacPherson strut, Double wishbone, Coil Spring, Hydraulic double acting shock absorber
Rear suspension typeLeaf spring, Hydraulic double acting shock absorber
Ford Ranger XLT 2.0 (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)7.4L / 100km
Fuel consumption city (average)8.4L / 100km
Fuel consumption highway (average)6.8L / 100km
Vehicle range1081.1km (671.8 miles)
Emission standardEURO 5
E10 compatible-
CO2 emissions (combined)195g / 100km
CO2 emissions (city)221g / 100km
CO2 emissions (highway)180g / 100km
Ford Ranger XLT 2.0 (4x4) Dimensions
Length5351mm (210.7 inches)
Width1850mm (72.8 inches)
Height1810mm (71.3 inches)
Wheelbase3220mm (126.8 inches)
Front track1560mm (61.4 inches)
Rear track1560mm (61.4 inches)
Ground clearance237mm (9.3 inches)
Unladen weight2095kg (4619.5 lbs)
Gross Vehicle Mass3200kg (7056.0 lbs)
Gross Combination Mass-
Ford Ranger XLT 2.0 (4x4) Towing Capacity
Braked towing capacity3500kg (7717.5 lbs)
Unbraked towing capacity750kg (1653.8 lbs)
Ford Ranger XLT 2.0 (4x4) Warranty
Warranty length60 months
Warranty distanceUnlimited km
Ford Ranger XLT 2.0 (4x4) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Ford Ranger XLT 2.0 (4x4) Options
Standard Features
  • Additional 12 Volt Socket/s
  • 12 Volt Power Outlet
  • 230V Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Active High Beam Control
  • Apple Car Play
  • Autonomous Emergency Braking
  • Alarm System/Remote Anti Theft
  • Alarm with Interior Movement Sensor
  • Acoustic Laminated Windscreen
  • Antenna - Roof-mounted Bee-sting type
  • Alloy Sports Bar
  • Adjustable Speed Limiter
  • AUX/USB Input Socket
  • 17 Inch Alloy Wheels
  • Body Coloured Front Bumper
  • Bucket Front Seats
  • Bluetooth Connectivity
  • Curtain Airbags
  • Cruise Control
  • Compact disc player
  • Chrome Exterior Door Handles
  • Chrome Exterior Mirrors
  • Carpet Floor Covering
  • Chrome Front Grille
  • Cup Holders - Front Seats
  • Centre Console Box - Multi-purpose
  • Chrome Rear Bumper
  • Chrome Rear Sports Bar
  • Child Seat Anchor Points
  • Digital Audio Broadcast Radio +
  • Driver Monitoring
  • Daytime Running Lights - LED
  • Dynamic Stability Control
  • Dusk Sensing Headlights
  • Driver Seat Manual Adjust 6 Way
  • Emergency Assist
  • Emergency Brake Assist
  • Emergency Brake Lights - Flashing
  • Electronic Diff Lock Rear
  • Exterior Mirrors - Heated
  • Emergency Stop Signal
  • Extra USB Socket/s
  • Front Cooled Centre Console Box
  • Fog Lights - Front
  • Floor Mat Driver
  • Headlights - Auto On/Off Function
  • Hill Descent Control
  • HID Headlights
  • Headlining Special
  • Hill Start Assist
  • Engine Immobiliser
  • Keyless Entry
  • Load Adaptive Control
  • Luggage/Cargo Area Light(s)
  • Leather Gear Knob
  • Leather Steering Wheel
  • Locking Tailgate
  • Multi Function Control Screen
  • Mud Flaps - Front
  • Mud Flaps - Rear
  • FORD MYKEY
  • Push Button Start
  • Parking Distance Control Rear
  • Parking Distance Control Front
  • Perimeter Alarm
  • Power Mirrors
  • Power Exterior Mirrors - Heated
  • Power Mirrors With Indicators & Folding
  • Power Steering
  • Power Windows Front
  • Radio AM/FM
  • Rollover Mitigation System
  • Rear Privacy Glass
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror Auto Dimming
  • Rear Window Demister
  • Side Airbags
  • Side Airbags - Front Seats side
  • Satellite Navigation
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Reminder for All Seats
  • Smart Key
  • Smart Key - Additional
  • Sound System with 6 Speakers
  • Side Steps
  • SYNC3 Communications System
  • Towbar
  • Traction Control System
  • Tailgate with Lift Assistance
  • Tyre Pressure Monitoring System
  • Trailer Stability Control
  • Traffic Sign Recognition
Optional Features
  • Prestige Paint - A$650
  • Tech Pack - A$800
