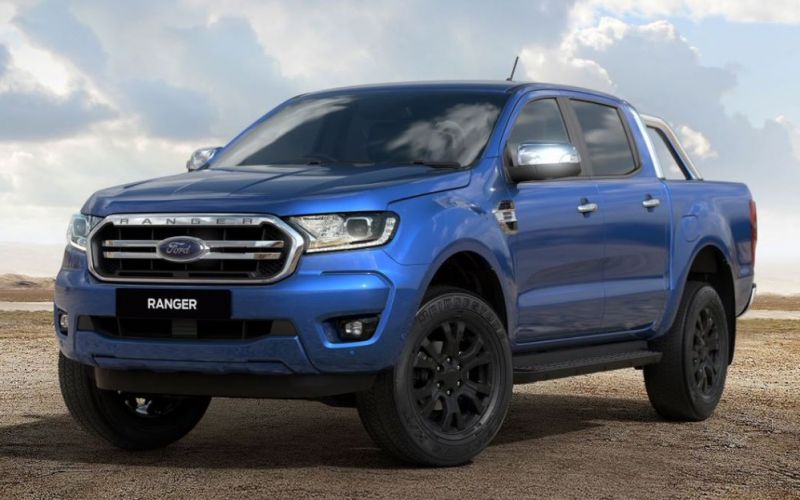

2020 Ford Ranger SPORT 3.2 (4x4)

2020 Ford Ranger SPORT 3.2 (4x4) Specifications

Ford Logo
8.9L/100km
5 stars

About the 2020 Ford Ranger SPORT 3.2 (4x4)

The 2020 Ford Ranger SPORT 3.2 (4x4) is a four-wheel drive double cab pickup that was released to the Australian market on 01/11/2020 classified as a PX MKIII MY21.25. The Ranger is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$50,600.

The Ranger is a four-wheel drive 4 door with 5 seats, powered by a 3.2L DIESEL TURBO 5 engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1500 rpm) via a Six-speed Automatic. FORD claims the Ranger SPORT 3.2 (4x4) uses 8.9L/100km of Diesel in the combined city and highway cycle while putting out 234g of CO2. It has a 80L fuel tank, meaning it should be able to travel 899km per full tank.

The Ranger measures 1815mm (71.5 inches) in height, 5359mm (211.0 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 2209kg (4870.0 lbs) of unladen weight. The Ranger SPORT 3.2 (4x4) comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2020 Ford Ranger SPORT 3.2 (4x4) has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.73.

The Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to M@*#MF$%0&W123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Ford Ranger
Ford Ranger SPORT 3.2 (4x4) Details
Price-
Used Price From DealerA$50,600
Trade-In ValueA$44,000
SeriesPX MKIII MY21.25
Body Styledouble cab pickup
Release date01/11/2020
Discontinued date30/06/2021
Drive type4x4
VIN plate locationCentre Of Chassis Frame
Compliance plate locationLower Driver Side B-Pillar
VIN ExampleM@*#MF$%0&W123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Ford Ranger SPORT 3.2 (4x4) Engine Specifications
TypeDIESEL TURBO F/INJ
Size3198cc, 3.2L
Power @ RPM 147kW @ 3000rpm (197.1 hp)
Torque @ RPM470Nm @ 1500rpm (346.6 lb-ft)
Cylindersturbocharged five-cylinder
Number of Valves20
ValvesDUAL OVERHEAD CAM
Euro RatingEURO 5
Compression ratio15.7
Power/weight ratio66.5kw/tonne
Bore/stroke89.9mm × 100.76mm (3.5in × 3.9in)
Ford Ranger SPORT 3.2 (4x4) Drivetrain and Wheels
TransmissionSix-speed Automatic
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.7m (41.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size265/65 R17 - 7.5x17
Rear tyre & wheel size265/65 R17 - 7.5x17
Front suspension typeMacPherson strut, Double wishbone, Coil Spring, Hydraulic double acting shock absorber
Rear suspension typeLeaf spring, Hydraulic double acting shock absorber
Ford Ranger SPORT 3.2 (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)8.9L / 100km
Fuel consumption city (average)11.4L / 100km
Fuel consumption highway (average)7.4L / 100km
Vehicle range898.9km (558.6 miles)
Emission standardEURO 5
E10 compatible-
CO2 emissions (combined)234g / 100km
CO2 emissions (city)299g / 100km
CO2 emissions (highway)196g / 100km
Ford Ranger SPORT 3.2 (4x4) Dimensions
Length5359mm (211.0 inches)
Width1850mm (72.8 inches)
Height1815mm (71.5 inches)
Wheelbase3220mm (126.8 inches)
Front track1560mm (61.4 inches)
Rear track1560mm (61.4 inches)
Ground clearance232mm (9.1 inches)
Unladen weight2209kg (4870.0 lbs)
Gross Vehicle Mass3200kg (7054.8 lbs)
Gross Combination Mass6000kg (13227.7 lbs)
Ford Ranger SPORT 3.2 (4x4) Towing Capacity
Braked towing capacity3500kg (7716.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Ford Ranger SPORT 3.2 (4x4) Warranty
Warranty length60 months
Warranty distanceUnlimited km
Ford Ranger SPORT 3.2 (4x4) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Ford Ranger SPORT 3.2 (4x4) Options
Standard Features
  • Additional 12 Volt Socket/s
  • 12 Volt Power Outlet
  • 230V Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Active High Beam Control
  • Apple Car Play
  • Autonomous Emergency Braking
  • Alarm System/Remote Anti Theft
  • Alarm with Interior Movement Sensor
  • Acoustic Laminated Windscreen
  • Antenna - Roof-mounted Bee-sting type
  • Adjustable Speed Limiter
  • Android Auto
  • 17 Inch Alloy Wheels
  • Body Coloured Front Bumper
  • Body Coloured Rear Bumper
  • Black Door Handles - Exterior
  • Black Exterior Mirrors
  • Bluetooth Connectivity
  • Curtain Airbags
  • Cruise Control
  • Compact disc player
  • Carpet Floor Covering
  • Cup Holders - Front Seats
  • Cargo Tie Down Hooks/Rings
  • Centre Console Box - Multi-purpose
  • Child Seat Anchor Points
  • Child Seat - ISOFIX Anchorage System
  • Digital Audio Broadcast Radio +
  • Driver Alert System
  • Dual Colour Instrumentation Screens
  • Decal Pack
  • Diff Locks
  • Driver Monitoring
  • Dynamic Stability Control
  • Dusk Sensing Headlights
  • Driver Seat Manual Adjust 6 Way
  • Emergency Assist
  • Emergency Brake Assist
  • Emergency Brake Lights - Flashing
  • Electronic Diff Lock Rear
  • Fog Lights - Front
  • Floor Mat Driver
  • Head Airbags
  • Headlights - Auto On/Off Function
  • Hill Descent Control
  • Hill Holder
  • Hill Start Assist
  • High Mounted Rear Stop Light
  • Engine Immobiliser
  • Key Ignition Spare
  • Load Adaptive Control
  • Luggage/Cargo Area Light(s)
  • Lane Departure Warning
  • Lane Keeping Assist
  • Load Rest
  • Locking Tailgate
  • Multi Function Display
  • Mud Flaps - Front
  • Mud Flaps - Front and Rear
  • Mud Flaps - Rear
  • Painted Grille
  • Push Button Start
  • Parking Distance Control Rear
  • Parking Distance Control Front
  • Pedestrian Recognition
  • Perimeter Alarm
  • Power Mirrors
  • Power Steering
  • Power Windows - Driver With One-Touch Operation
  • Power Windows Front
  • Power Windows Rear
  • Radio AM/FM
  • Rear Bumper Special
  • Radio CD with 6 Speakers
  • Rollover Mitigation System
  • Reversing Camera
  • Rear View Mirror Day/Night
  • Rear Window Demister
  • Side Airbags
  • Side Airbags - Front Seats side
  • Satellite Navigation
  • Seatbelts - Lap/Sash for All Seats
  • Sports Bar - Painted
  • Seatbelts - Reminder for All Seats
  • Seatbelts - Reminder for Front Seats
  • Special Paint Finish Exterior Mirrors
  • Smart Key
  • Sound System with 6 Speakers
  • Side Steps
  • SYNC3 Communications System
  • Traction Control System
  • Tailgate with Lift Assistance
  • Trailer Stability Control
  • Traffic Sign Recognition
  • USB Input Socket
  • Ute Tray Liner
  • Voice Recognition System
Optional Features
  • Prestige Paint - A$650
  • Spray-In Bedliner - A$300
