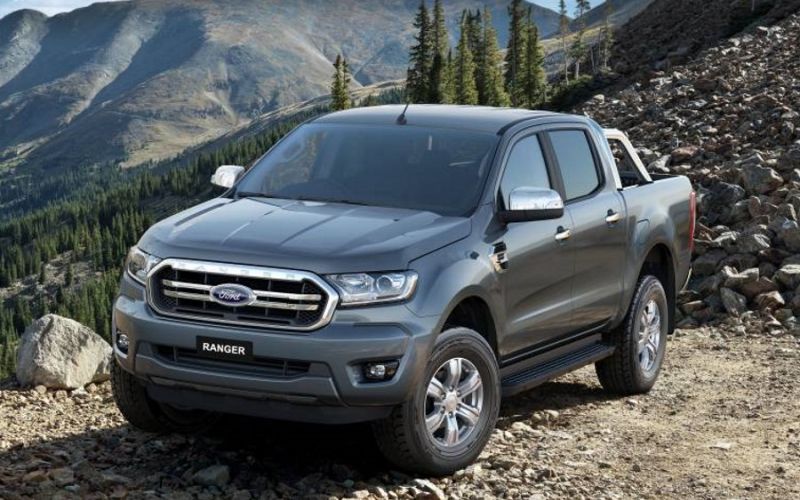

2019 Ford Ranger XL 2.2 HI-RIDER (4x2)

2019 Ford Ranger XL 2.2 HI-RIDER (4x2) Specifications

Ford Logo
7.8L/100km
5 stars

About the 2019 Ford Ranger XL 2.2 HI-RIDER (4x2)

The 2019 Ford Ranger XL 2.2 HI-RIDER (4x2) is a rear-wheel drive super cab chassis that was released to the Australian market on 01/09/2018 classified as a PX MKIII MY19. The Ranger is regarded as a pick up or cab chassis 4x2 built in Thailand with prices from a dealer as a used car starting at A$30,300.

The Ranger is a rear-wheel drive 4 door with 4 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 118 kW of power (at 3200 rpm) and 385 Nm of torque (at 1600 rpm) via a Six-speed Automatic. FORD claims the Ranger XL 2.2 HI-RIDER (4x2) uses 7.8L/100km of Diesel in the combined city and highway cycle while putting out 203g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1026km per full tank.

The Ranger measures 1804mm (71.0 inches) in height, 5110mm (201.2 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1783kg (3930.8 lbs) of unladen weight. The Ranger XL 2.2 HI-RIDER (4x2) comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2019 Ford Ranger XL 2.2 HI-RIDER (4x2) has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.73.

The Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to MNA#M1$%0&W123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Ford Ranger
Ford Ranger XL 2.2 HI-RIDER (4x2) Details
Price-
Used Price From DealerA$30,300
Trade-In ValueA$25,100
SeriesPX MKIII MY19
Body Stylesuper cab chassis
Release date01/09/2018
Discontinued date31/03/2019
Drive typeRWD
VIN plate locationCentre Of Chassis Frame
Compliance plate locationLower Driver Side B-Pillar
VIN ExampleMNA#M1$%0&W123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X2
Safety ANCAP rating5 stars
Number of doors4
Seating capacity4
Ford Ranger XL 2.2 HI-RIDER (4x2) Engine Specifications
TypeDIESEL TURBO F/INJ
Size2198cc, 2.2L
Power @ RPM 118kW @ 3200rpm (158.2 hp)
Torque @ RPM385Nm @ 1600rpm (283.9 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro RatingEURO 5
Compression ratio15.7
Power/weight ratio66.2kw/tonne
Bore/stroke86mm × 94.6mm (3.4in × 3.7in)
Ford Ranger XL 2.2 HI-RIDER (4x2) Drivetrain and Wheels
TransmissionSix-speed Automatic
Drive typerear-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.7m (41.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size215/70 R16 - 6.5x16
Rear tyre & wheel size215/70 R16 - 6.5x16
Front suspension typeMacPherson strut, Double wishbone, Coil Spring, Hydraulic double acting shock absorber
Rear suspension typeLeaf spring, Hydraulic double acting shock absorber
Ford Ranger XL 2.2 HI-RIDER (4x2) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)7.8L / 100km
Fuel consumption city (average)9.7L / 100km
Fuel consumption highway (average)6.7L / 100km
Vehicle range1025.6km (637.3 miles)
Emission standardEURO 5
E10 compatible-
CO2 emissions (combined)203g / 100km
CO2 emissions (city)252g / 100km
CO2 emissions (highway)175g / 100km
Ford Ranger XL 2.2 HI-RIDER (4x2) Dimensions
Length5110mm (201.2 inches)
Width1850mm (72.8 inches)
Height1804mm (71.0 inches)
Wheelbase3220mm (126.8 inches)
Front track1560mm (61.4 inches)
Rear track1560mm (61.4 inches)
Ground clearance232mm (9.1 inches)
Unladen weight1783kg (3930.8 lbs)
Gross Vehicle Mass3200kg (7054.8 lbs)
Gross Combination Mass6000kg (13227.7 lbs)
Ford Ranger XL 2.2 HI-RIDER (4x2) Towing Capacity
Braked towing capacity3500kg (7716.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Ford Ranger XL 2.2 HI-RIDER (4x2) Warranty
Warranty length60 months
Warranty distanceUnlimited km
Ford Ranger XL 2.2 HI-RIDER (4x2) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Ford Ranger XL 2.2 HI-RIDER (4x2) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • Adjustable Driver Seat - Manual
  • Alarm System/Remote Anti Theft
  • Antenna - Roof-mounted Bee-sting type
  • Adjustable Speed Limiter
  • Ambient Temperature Display
  • AUX/USB Input Socket
  • Brake Assist
  • Body Coloured Front Bumper
  • Bucket Front Seats
  • Bluetooth Connectivity
  • Cruise Control
  • Cup Holders - Front Seats
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Seat Anchor Points
  • Diff Locks
  • Dynamic Stability Control
  • Dusk Sensing Headlights
  • Emergency Assist
  • Emergency Stop Signal
  • Head Airbags
  • Headlights - Auto On/Off Function
  • Hill Start Assist
  • Engine Immobiliser
  • Multi Function Display
  • Mud Flaps - Front and Rear
  • MP3 Compatible Audio/CD Player
  • Power Mirrors
  • Power Steering
  • Power Windows Front
  • Radio CD with 6 Speakers
  • Rollover Mitigation System
  • Rear View Mirror Day/Night
  • Rear Window Demister
  • Side Airbags
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Reminder for Front Seats
  • Steering Wheel-mounted Audio Controls
  • Traction Control System
  • Trailer Stability Control
  • Vinyl Floor Covering
Optional Features
  • Prestige Paint - A$600
