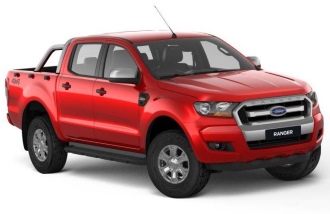

2017 Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION

2017 Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Specifications

Ford Logo
8.3L/100km
5 stars

About the 2017 Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION

The 2017 Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION is a four-wheel drive dual cab utility that was released to the Australian market on 01/09/2016 classified as a PX MKII MY17. The Ranger is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$32,500.

The Ranger is a four-wheel drive 4 door with 5 seats, powered by a 3.2L DIESEL TURBO 5 engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1500 rpm) via a Six-speed Manual. FORD claims the Ranger XLS 3.2 (4x4) SPECIAL EDITION uses 8.3L/100km of Diesel in the combined city and highway cycle while putting out 229g of CO2. It has a 80L fuel tank, meaning it should be able to travel 964km per full tank.

The Ranger measures 1815mm (71.5 inches) in height, 5359mm (211.0 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1938kg (4272.6 lbs) of unladen weight. The Ranger XLS 3.2 (4x4) SPECIAL EDITION comes standard with 255/70 R16 front tyres and 255/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2017 Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.55.

The Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to M@*#MF$%0&W123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Ford Ranger
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Details
Price-
Used Price From DealerA$32,500
Trade-In ValueA$27,000
SeriesPX MKII MY17
Body Styledual cab utility
Release date01/09/2016
Discontinued date30/06/2017
Drive type4x4
VIN plate locationCentre Of Chassis Frame
Compliance plate locationLower Driver Side B-Pillar
VIN ExampleM@*#MF$%0&W123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Engine Specifications
TypeDIESEL TURBO F/INJ
Size3198cc, 3.2L
Power @ RPM 147kW @ 3000rpm (197.1 hp)
Torque @ RPM470Nm @ 1500rpm (346.6 lb-ft)
Cylindersturbocharged five-cylinder
Number of Valves20
ValvesDUAL OVERHEAD CAM
Euro Rating-
Compression ratio15.7
Power/weight ratio75.9kw/tonne
Bore/stroke89.9mm × 100.76mm (3.5in × 3.9in)
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Drivetrain and Wheels
TransmissionSix-speed Manual
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.7m (41.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size255/70 R16 - 7x16
Rear tyre & wheel size255/70 R16 - 7x16
Front suspension typeMacPherson strut, Double wishbone, Coil Spring, Hydraulic double acting shock absorber
Rear suspension typeLeaf spring, Hydraulic double acting shock absorber
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)8.3L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range963.9km (598.9 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)229g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Dimensions
Length5359mm (211.0 inches)
Width1850mm (72.8 inches)
Height1815mm (71.5 inches)
Wheelbase3220mm (126.8 inches)
Front track1560mm (61.4 inches)
Rear track1560mm (61.4 inches)
Ground clearance232mm (9.1 inches)
Unladen weight1938kg (4272.6 lbs)
Gross Vehicle Mass3200kg (7054.8 lbs)
Gross Combination Mass6550kg (14440.3 lbs)
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Towing Capacity
Braked towing capacity3500kg (7716.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Warranty
Warranty length36 months
Warranty distance100,000km
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Ford Ranger XLS 3.2 (4x4) SPECIAL EDITION Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Air Conditioning
  • Adjustable Driver Seat - Manual
  • Alarm System/Remote Anti Theft
  • Antenna - Roof-mounted Bee-sting type
  • Alloy Sports Bar
  • Adjustable Speed Limiter
  • AUX/USB Input Socket
  • 16 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Bumpers
  • Bucket Front Seats
  • Bluetooth Connectivity
  • Cruise Control
  • Carpet Floor Covering
  • Cup Holders - Front Seats
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Seat Anchor Points
  • Diff Locks
  • Dynamic Stability Control
  • Dusk Sensing Headlights
  • Daytime Running Lights
  • Emergency Assist
  • Electronic Brake Force Distribution
  • Emergency Stop Signal
  • Fog Lights - Front
  • Floor Mats - Front & Rear
  • Head Airbags
  • Headlights - Auto On/Off Function
  • Hill Descent Control
  • Hill Holder
  • High Mounted Rear Stop Light
  • Engine Immobiliser
  • Key Ignition Spare
  • Multi Function Display
  • Mud Flaps - Front and Rear
  • MP3 Compatible Audio/CD Player
  • Parking Distance Control Rear
  • Power Mirrors
  • Power Steering
  • Power Windows
  • Radio CD with 6 Speakers
  • Rollover Mitigation System
  • Reversing Camera
  • Rear View Mirror Day/Night
  • Rear Window Demister
  • Side Airbags
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Reminder for Front Seats
  • Side Steps
  • Spare Wheel - Full Size Steel Wheel
  • Trip Computer
  • Traction Control System
  • Tailgate Liner
  • Trailer Stability Control
  • Ute Tray Liner
Optional Features
  • Metallic Paint - A$500
  • Tech Pack - A$1,100
