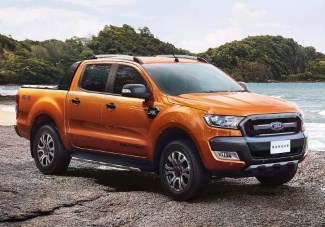

2017 Ford Ranger WILDTRAK 3.2 (4x4)

2017 Ford Ranger WILDTRAK 3.2 (4x4) Specifications

Ford Logo
8.9L/100km
5 stars

About the 2017 Ford Ranger WILDTRAK 3.2 (4x4)

The 2017 Ford Ranger WILDTRAK 3.2 (4x4) is a four-wheel drive dual cab pickup that was released to the Australian market on 01/10/2017 classified as a PX MKII MY18. The Ranger is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$47,600.

The Ranger is a four-wheel drive 4 door with 5 seats, powered by a 3.2L DIESEL TURBO 5 engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1500 rpm) via a Six-speed Automatic. FORD claims the Ranger WILDTRAK 3.2 (4x4) uses 8.9L/100km of Diesel in the combined city and highway cycle while putting out 234g of CO2. It has a 80L fuel tank, meaning it should be able to travel 899km per full tank.

The Ranger measures 1848mm (72.8 inches) in height, 5389mm (212.2 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 2200kg (4850.2 lbs) of unladen weight. The Ranger WILDTRAK 3.2 (4x4) comes standard with 265/60 R18 front tyres and 265/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2017 Ford Ranger WILDTRAK 3.2 (4x4) has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.73.

The Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to M@*#MF$%0&W123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Ford Ranger
Ford Ranger WILDTRAK 3.2 (4x4) Details
Price-
Used Price From DealerA$47,600
Trade-In ValueA$40,900
SeriesPX MKII MY18
Body Styledual cab pickup
Release date01/10/2017
Discontinued date30/04/2018
Drive type4x4
VIN plate locationCentre Of Chassis Frame
Compliance plate locationLower Driver Side B-Pillar
VIN ExampleM@*#MF$%0&W123456
Country of originThailand
SegmentPick Up or Cab Chassis 4X4
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
Ford Ranger WILDTRAK 3.2 (4x4) Engine Specifications
TypeDIESEL TURBO F/INJ
Size3198cc, 3.2L
Power @ RPM 147kW @ 3000rpm (197.1 hp)
Torque @ RPM470Nm @ 1500rpm (346.6 lb-ft)
Cylindersturbocharged five-cylinder
Number of Valves20
ValvesDUAL OVERHEAD CAM
Euro RatingEURO 5
Compression ratio15.7
Power/weight ratio66.8kw/tonne
Bore/stroke89.9mm × 100.76mm (3.5in × 3.9in)
Ford Ranger WILDTRAK 3.2 (4x4) Drivetrain and Wheels
TransmissionSix-speed Automatic
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle12.7m (41.7 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDRUM
Front tyre & wheel size265/60 R18 - 8x18
Rear tyre & wheel size265/60 R18 - 8x18
Front suspension typeMacPherson strut, Double wishbone, Coil Spring, Hydraulic double acting shock absorber
Rear suspension typeLeaf spring, Hydraulic double acting shock absorber
Ford Ranger WILDTRAK 3.2 (4x4) Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity80L
Fuel consumption (combined average)8.9L / 100km
Fuel consumption city (average)11.4L / 100km
Fuel consumption highway (average)7.4L / 100km
Vehicle range898.9km (558.6 miles)
Emission standardEURO 5
E10 compatible-
CO2 emissions (combined)234g / 100km
CO2 emissions (city)299g / 100km
CO2 emissions (highway)196g / 100km
Ford Ranger WILDTRAK 3.2 (4x4) Dimensions
Length5389mm (212.2 inches)
Width1850mm (72.8 inches)
Height1848mm (72.8 inches)
Wheelbase3220mm (126.8 inches)
Front track1560mm (61.4 inches)
Rear track1560mm (61.4 inches)
Ground clearance232mm (9.1 inches)
Unladen weight2200kg (4850.2 lbs)
Gross Vehicle Mass3200kg (7054.8 lbs)
Gross Combination Mass-
Ford Ranger WILDTRAK 3.2 (4x4) Towing Capacity
Braked towing capacity3500kg (7716.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Ford Ranger WILDTRAK 3.2 (4x4) Warranty
Warranty length36 months
Warranty distance100,000km
Ford Ranger WILDTRAK 3.2 (4x4) Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Ford Ranger WILDTRAK 3.2 (4x4) Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Active High Beam Control
  • Apple Car Play
  • Ambient Interior Lighting
  • Alarm System/Remote Anti Theft
  • Antenna - Roof-mounted Bee-sting type
  • Alloy Sports Bar
  • Adjustable Speed Limiter
  • Ambient Temperature Display
  • Android Auto
  • AUX/USB Input Socket
  • 18 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Exterior Mirrors
  • Body Coloured Front Bumper
  • Bucket Front Seats
  • Bluetooth Connectivity
  • Cruise Control
  • Cruise Control Intelligent/Active
  • Chrome Exterior Door Handles
  • Carpet Floor Covering
  • Chrome Front Grille
  • Cup Holders - Front Seats
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Seat Anchor Points
  • Chrome Tailgate Handle
  • Driver Fatigue Detection
  • Diff Locks
  • Dynamic Stability Control
  • Dusk Sensing Headlights
  • Daytime Running Lights
  • Emergency Assist
  • Exterior Mirrors - Heated
  • Exterior Mirrors with Puddle Light
  • Emergency Stop Signal
  • Forward Collision Warning
  • Fog Lights - Front
  • Floor Mats - Front & Rear
  • Head Airbags
  • Headlights - Auto On/Off Function
  • Heated Front Seats
  • Engine Immobiliser
  • Leather Accented Upholstery
  • Lane Change Warning
  • Leather Gear Knob
  • Lane Keeping Assist
  • Limited Slip Differential
  • Leather Steering Wheel
  • Memory Card Reader
  • Multi Function Control Screen
  • Multi Function Display
  • Mud Flaps - Front and Rear
  • MP3 Compatible Audio/CD Player
  • Parking Distance Control Rear
  • Parking Distance Control Front
  • Power front seat Driver
  • Projector Headlights
  • Power Mirrors With Indicators & Folding
  • Power Steering
  • Power Windows
  • Radio CD with 6 Speakers
  • Rollover Mitigation System
  • Rear Privacy Glass
  • Roof Racks
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror Auto Dimming
  • Rear Window Demister
  • Side Airbags
  • Satellite Navigation
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Reminder for Front Seats
  • Side Steps
  • Steering Wheel-mounted Audio Controls
  • Towbar
  • Traction Control System
  • Trailer Stability Control
Optional Features
  • Metallic Paint - A$500
  • Prestige Paint - A$550
  • Tech Pack - A$1,100
