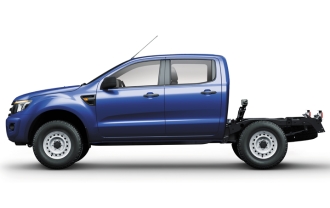

2013 Ford Ranger XL 3.2 (4x4) Specifications
About the 2013 Ford Ranger XL 3.2 (4x4)
The 2013 Ford Ranger XL 3.2 (4x4) is a four-wheel drive dual cab chassis that was released to the Australian market on 01/04/2012 classified as a PX. The Ranger is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at A$26,900.
The Ranger is a four-wheel drive 4 door with 5 seats, powered by a 3.2L DIESEL TURBO 5 engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1500 rpm) via a Six-speed Automatic. FORD claims the Ranger XL 3.2 (4x4) uses 9.2L/100km of Diesel in the combined city and highway cycle while putting out 246g of CO2. It has a 80L fuel tank, meaning it should be able to travel 870km per full tank.
The Ranger measures 1815mm (71.5 inches) in height, 5359mm (211.0 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1938kg (4272.6 lbs) of unladen weight. The Ranger XL 3.2 (4x4) comes standard with 255/70 R16 front tyres and 255/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.
The 2013 Ford Ranger XL 3.2 (4x4) has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.73.
The Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to 6FP#MBGE0##P12345.
Reviews
There are no current reviews of this variant. Click here to see reviews for other variants of the Ford Ranger| Ford Ranger XL 3.2 (4x4) Details | |
|---|---|
| Price | - |
| Used Price From Dealer | A$26,900 |
| Trade-In Value | A$21,800 |
| Series | PX |
| Body Style | dual cab chassis |
| Release date | 01/04/2012 |
| Discontinued date | 31/07/2015 |
| Drive type | 4x4 |
| VIN plate location | Centre Of Chassis Frame |
| Compliance plate location | Lower Driver Side B-Pillar |
| VIN Example | 6FP#MBGE0##P12345 |
| Country of origin | Thailand |
| Segment | Pick Up or Cab Chassis 4X4 |
| Safety ANCAP rating | 5 stars |
| Number of doors | 4 |
| Seating capacity | 5 |
| Ford Ranger XL 3.2 (4x4) Engine Specifications | |
| Type | DIESEL TURBO F/INJ |
| Size | 3198cc, 3.2L |
| Power @ RPM | 147kW @ 3000rpm (197.1 hp) |
| Torque @ RPM | 470Nm @ 1500rpm (346.6 lb-ft) |
| Cylinders | turbocharged five-cylinder |
| Number of Valves | 20 |
| Valves | DUAL OVERHEAD CAM |
| Euro Rating | - |
| Compression ratio | 15.7 |
| Power/weight ratio | 75.9kw/tonne |
| Bore/stroke | 89.9mm × 100.76mm (3.5in × 3.9in) |
| Ford Ranger XL 3.2 (4x4) Drivetrain and Wheels | |
| Transmission | Six-speed Automatic |
| Drive type | four-wheel drive |
| Steering type | RACK & PINION - POWER ASSISTED |
| Turning circle | 12.7m (41.7 ft) |
| Brake (front) type | DISC - VENTILATED |
| Brake (rear) type | DRUM |
| Front tyre & wheel size | 255/70 R16 - 7x16 |
| Rear tyre & wheel size | 255/70 R16 - 7x16 |
| Front suspension type | MacPherson strut, Double wishbone, Coil Spring, Hydraulic double acting shock absorber |
| Rear suspension type | Leaf spring, Hydraulic double acting shock absorber |
| Ford Ranger XL 3.2 (4x4) Fuel Specifications | |
| Fuel type | DIESEL |
| Fuel tank capacity | 80L |
| Fuel consumption (combined average) | 9.2L / 100km |
| Fuel consumption city (average) | - |
| Fuel consumption highway (average) | - |
| Vehicle range | 869.6km (540.3 miles) |
| Emission standard | - |
| E10 compatible | - |
| CO2 emissions (combined) | 246g / 100km |
| CO2 emissions (city) | - |
| CO2 emissions (highway) | - |
| Ford Ranger XL 3.2 (4x4) Dimensions | |
| Length | 5359mm (211.0 inches) |
| Width | 1850mm (72.8 inches) |
| Height | 1815mm (71.5 inches) |
| Wheelbase | 3220mm (126.8 inches) |
| Front track | 1560mm (61.4 inches) |
| Rear track | 1560mm (61.4 inches) |
| Ground clearance | 232mm (9.1 inches) |
| Unladen weight | 1938kg (4272.6 lbs) |
| Gross Vehicle Mass | 3200kg (7054.8 lbs) |
| Gross Combination Mass | 6550kg (14440.3 lbs) |
| Ford Ranger XL 3.2 (4x4) Towing Capacity | |
| Braked towing capacity | 3500kg (7716.2 lbs) |
| Unbraked towing capacity | 750kg (1653.5 lbs) |
| Ford Ranger XL 3.2 (4x4) Warranty | |
| Warranty length | 36 months |
| Warranty distance | 100,000km |
| Ford Ranger XL 3.2 (4x4) Servicing | |
| Service interval (km) | 15,000 km |
| Service interval (months) | 12 months |
| Ford Ranger XL 3.2 (4x4) Options | |
| Standard Features |
|
| Optional Features |
|
