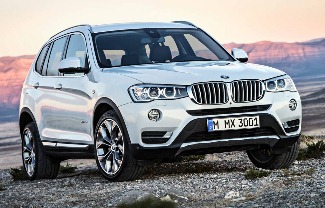

2014 BMW X3 xDRIVE20d

2014 BMW X3 xDRIVE20d Specifications

BMW Logo
5.4L/100km
5 stars

About the 2014 BMW X3 xDRIVE20d

The 2014 BMW X3 xDRIVE20d is a four-wheel drive four-door wagon that was released to the Australian market on 01/09/2014 classified as a F25 MY15. The X3 is regarded as a medium SUV built in Germany with prices from a dealer as a used car starting at A$28,800.

The X3 is a four-wheel drive 4 door with 5 seats, powered by a 2.0L DIESEL TURBO 4 engine that has 140 kW of power (at 4000 rpm) and 400 Nm of torque (at 1750 rpm) via an Eight-speed Automatic. BMW claims the X3 xDRIVE20d uses 5.4L/100km of Diesel in the combined city and highway cycle while putting out 141g of CO2. It has a 67L fuel tank, meaning it should be able to travel 1241km per full tank.

The X3 measures 1675mm (65.9 inches) in height, 4684mm (184.4 inches) in length, 1881mm (74.1 inches) in width with a 2810mm (110.6 inches) wheelbase that brings about a total of 1725kg (3803.0 lbs) of unladen weight. The X3 xDRIVE20d comes standard with 245/50 R18 front tyres and 245/50 R18 rear tyres. It requires a service every 12 months or 25,000 km, whichever comes first.

The 2014 BMW X3 xDRIVE20d has a 212mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

The X3 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Inner Guard and the compliance plate is located on the Pass Side Lower B-Pillar. An example VIN number would be similar to WBAWY320%0LL17123.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the BMW X3
BMW X3 xDRIVE20d Details
Price-
Used Price From DealerA$28,800
Trade-In ValueA$23,300
SeriesF25 MY15
Body Stylefour-door wagon
Release date01/09/2014
Discontinued date31/01/2016
Drive type4WD
VIN plate locationDriver Side Inner Guard
Compliance plate locationPass Side Lower B-Pillar
VIN ExampleWBAWY320%0LL17123
Country of originGermany
SegmentMedium SUV
Safety ANCAP rating5 stars
Number of doors4
Seating capacity5
BMW X3 xDRIVE20d Engine Specifications
TypeDIESEL TURBO F/INJ
Size1995cc, 2.0L
Power @ RPM 140kW @ 4000rpm (187.7 hp)
Torque @ RPM400Nm @ 1750rpm (295.0 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesDUAL OVERHEAD CAM
Euro RatingEuro 5
Compression ratio17
Power/weight ratio81.2kw/tonne
Bore/stroke84mm × 90mm (3.3in × 3.5in)
BMW X3 xDRIVE20d Drivetrain and Wheels
TransmissionEight-speed Automatic
Drive typefour-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.9m (39.0 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - VENTILATED
Front tyre & wheel size245/50 R18 - 8x18
Rear tyre & wheel size245/50 R18 - 8x18
Front suspension typeMacPherson strut, Gas damper, Coil Spring, Anti roll bar
Rear suspension typeMulti-link system, Gas damper, Coil Spring, Anti roll bar
BMW X3 xDRIVE20d Fuel Specifications
Fuel typeDIESEL
Fuel tank capacity67L
Fuel consumption (combined average)5.4L / 100km
Fuel consumption city (average)5.9L / 100km
Fuel consumption highway (average)5L / 100km
Vehicle range1240.7km (770.9 miles)
Emission standardEuro 5
E10 compatible-
CO2 emissions (combined)141g / 100km
CO2 emissions (city)156g / 100km
CO2 emissions (highway)132g / 100km
BMW X3 xDRIVE20d Dimensions
Length4684mm (184.4 inches)
Width1881mm (74.1 inches)
Height1675mm (65.9 inches)
Wheelbase2810mm (110.6 inches)
Front track1616mm (63.6 inches)
Rear track1632mm (64.3 inches)
Ground clearance212mm (8.3 inches)
Unladen weight1725kg (3803.0 lbs)
Gross Vehicle Mass2300kg (5070.6 lbs)
Gross Combination Mass-
BMW X3 xDRIVE20d Towing Capacity
Braked towing capacity2000kg (4409.2 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
BMW X3 xDRIVE20d Warranty
Warranty length36 months
Warranty distanceUnlimited km
BMW X3 xDRIVE20d Servicing
Service interval (km)25,000 km
Service interval (months)12 months
BMW X3 xDRIVE20d Options
Standard Features
  • 12 Volt Power Outlet
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Active Front Head Restraints
  • Ambient Interior Lighting
  • Automatic Stop/Start
  • Adjustable Steering Wheel - Tilt & Telescopic
  • Ambient Temperature Display
  • Anti-theft Wheel Bolts
  • AUX/USB Input Socket
  • 18 Inch Alloy Wheels
  • Brake Assist
  • Body Coloured Exterior Door Handles
  • Body Coloured Exterior Mirrors
  • Brake Energy Regeneration
  • Brake-pad Wear Indicator
  • Cornering Brake Control
  • Cruise Control
  • Chrome Exhaust Tip(s)
  • Cargo Cover
  • Cargo Net - On Floor
  • Chrome Grille Surround
  • Cup Holders - Front and Rear
  • Cargo Tie Down Hooks/Rings
  • Centre Console Box - Multi-purpose
  • Central Locking Remote Control
  • Child Proof Rear Door Locks
  • Digital Clock
  • Dust and Pollen Filter
  • Door Pockets - Front and Rear
  • Daytime Running Lights - LED
  • Dynamic Stability Control
  • Door Sill Finishers - Embossed/Personalised
  • Dusk Sensing Headlights
  • Electronic Brake Force Distribution
  • Emergency Brake Lights - Flashing
  • Exterior Mirrors - Heated
  • Electric Parking Brake
  • First-Aid Kit
  • Front Footwell Lights
  • Fog Lights - Front
  • Fog Lights - Rear
  • Floor Mats - Front & Rear
  • Grab Handles - Front and Rear
  • Headrests - Adjustable on All Seats
  • Head Airbags
  • Headlights - Coming/Leaving Home Function
  • Hill Descent Control
  • Hill Holder
  • Headlights On Warning
  • High Mounted Rear Stop Light
  • Headlight Washer System
  • Illuminated Glove Box Compartment
  • Engine Immobiliser
  • Keyless Entry and Drive
  • Luggage/Cargo Area Light(s)
  • Leather Steering Wheel
  • Multi Function Control Screen
  • Multi Function Steering Wheel
  • MP3 Compatible Audio/CD Player
  • Mobile Phone Connectivity
  • Map/Reading Lights - Front
  • Parking Distance Control Rear
  • Parking Distance Control Front
  • Power front seats with memory
  • Power Mirrors
  • Power Steering
  • Power Tailgate
  • Power Windows
  • Rear Centre Armrest
  • Remote Boot/Hatch Release
  • Radio CD with 6 Speakers
  • Remote Fuel Lid Release
  • Roof Rails
  • Runflat Safety Tyres
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror Auto Dimming
  • Rear Wiper/Washer
  • Satellite Navigation
  • Seatbelts - Load Limiters Front Seats
  • Seatbelts - Lap/Sash for All Seats
  • Seatbelts - Pre-tensioners Front Seats
  • Speed Sensing Auto Door Lock
  • Side Front AirBags
  • Split Fold Rear Seat
  • Storage Net - Rear Side Luggage Compartment
  • Storage Net - Front Passenger Footwell
  • Seatback Pockets - Front Seats
  • Start/Stop Button
  • Sunvisors with Vanity Mirrors & Illumination
  • Trip Computer
  • Traction Control System
  • Tool Kit
  • Xenon Headlights
Optional Features
  • Adaptive Damping Control - A$1,900
  • Alarm System/Remote Anti Theft - A$1,050
  • 19 Inch Alloy Wheels - A$1,600
  • 20 Inch Alloy Wheels - A$1,700
  • CD with 6 CD Stacker - A$1,100
  • Driver Assist Pack - A$900
  • Driver Assist Pack Plus - A$3,300
  • Heated Front Seats - A$760
  • Heated Rear Seats - A$760
  • Head Up Display - A$2,300
  • Lane Change Warning - A$1,200
  • LED Headlights - A$3,680
  • Metallic Paint - A$1,900
  • M Sport Package II - A$6,500
  • Park Assist - A$675
  • Power front seats - A$2,700
  • Protective Glazing - A$800
  • Power Sunroof - A$3,000
  • Surround Camera System - A$1,300
  • Sport Seats - A$1,430
  • Premium Sound System - A$1,300
  • Sports Suspension - A$300
  • Television - A$2,250
