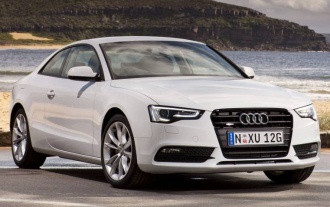

2013 Audi A5 1.8 TFSI SPORT EDITION

2013 Audi A5 1.8 TFSI SPORT EDITION Specifications

Audi Logo
5.8L/100km
Not tested

About the 2013 Audi A5 1.8 TFSI SPORT EDITION

The 2013 Audi A5 1.8 TFSI SPORT EDITION is a front-wheel drive two-door coupe that was released to the Australian market on 01/08/2013 classified as a 8T MY13. The A5 is regarded as a sports car built in Germany with prices from a dealer as a used car starting at A$22,200.

The A5 is a front-wheel drive 2 door with 4 seats, powered by a 1.8L TURBO 4 engine that has 125 kW of power (at 3800 rpm) and 320 Nm of torque (at 1400 rpm) via a CVT MULTITRONIC. AUDI claims the A5 1.8 TFSI SPORT EDITION uses 5.8L/100km of Premium Unleaded Petrol in the combined city and highway cycle while putting out 134g of CO2. It has a 63L fuel tank, meaning it should be able to travel 1086km per full tank.

The A5 measures 1372mm (54.0 inches) in height, 4626mm (182.1 inches) in length, 1854mm (73.0 inches) in width with a 2751mm (108.3 inches) wheelbase that brings about a total of 1455kg (3207.7 lbs) of unladen weight. The A5 1.8 TFSI SPORT EDITION comes standard with 255/35 R19 front tyres and 255/35 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2013 Audi A5 1.8 TFSI SPORT EDITION has a 114mm ground clearance with a 1300kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.612.

The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Rear Lug Comp on S/Wheel Well. An example VIN number would be similar to WAUZZZ8TX8A123456.


Reviews

There are no current reviews of this variant. Click here to see reviews for other variants of the Audi A5
Audi A5 1.8 TFSI SPORT EDITION Details
Price-
Used Price From DealerA$22,200
Trade-In ValueA$17,500
Series8T MY13
Body Styletwo-door coupe
Release date01/08/2013
Discontinued date31/01/2014
Drive typeFWD
VIN plate locationDriver Side Front Wheel Arch
Compliance plate locationRear Lug Comp on S/Wheel Well
VIN ExampleWAUZZZ8TX8A123456
Country of originGermany
SegmentSports Car
Safety ANCAP ratingNot tested
Number of doors2
Seating capacity4
Audi A5 1.8 TFSI SPORT EDITION Engine Specifications
TypeTURBO MPFI
Size1798cc, 1.8L
Power @ RPM 125kW @ 3800rpm (167.6 hp)
Torque @ RPM320Nm @ 1400rpm (236.0 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
ValvesVARIABLE DOUBLE OVERHEAD CAM
Euro Rating-
Compression ratio9.6
Power/weight ratio85.9kw/tonne
Bore/stroke82.5mm × 84.1mm (3.2in × 3.3in)
Audi A5 1.8 TFSI SPORT EDITION Drivetrain and Wheels
TransmissionCVT MULTITRONIC
Drive typefront-wheel drive
Steering typeRACK & PINION - POWER ASSISTED
Turning circle11.4m (37.4 ft)
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC
Front tyre & wheel size255/35 R19 - 9x19
Rear tyre & wheel size255/35 R19 - 9x19
Front suspension typeMulti-link system, Upper and Lower WishBone, Coil Spring, Gas damper, Anti roll bar
Rear suspension typeTrapezoidal link, Coil Spring, Gas damper, Anti roll bar
Audi A5 1.8 TFSI SPORT EDITION Fuel Specifications
Fuel typePREMIUM UNLEADED PETROL
Fuel tank capacity63L
Fuel consumption (combined average)5.8L / 100km
Fuel consumption city (average)-
Fuel consumption highway (average)-
Vehicle range1086.2km (674.9 miles)
Emission standard-
E10 compatible-
CO2 emissions (combined)134g / 100km
CO2 emissions (city)-
CO2 emissions (highway)-
Audi A5 1.8 TFSI SPORT EDITION Dimensions
Length4626mm (182.1 inches)
Width1854mm (73.0 inches)
Height1372mm (54.0 inches)
Wheelbase2751mm (108.3 inches)
Front track1590mm (62.6 inches)
Rear track1577mm (62.1 inches)
Ground clearance114mm (4.5 inches)
Unladen weight1455kg (3207.7 lbs)
Gross Vehicle Mass1955kg (4310.0 lbs)
Gross Combination Mass-
Audi A5 1.8 TFSI SPORT EDITION Towing Capacity
Braked towing capacity1300kg (2866.0 lbs)
Unbraked towing capacity750kg (1653.5 lbs)
Audi A5 1.8 TFSI SPORT EDITION Warranty
Warranty length36 months
Warranty distanceUnlimited km
Audi A5 1.8 TFSI SPORT EDITION Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Audi A5 1.8 TFSI SPORT EDITION Options
Standard Features
  • Dual Front Airbags Package
  • Anti-lock Braking
  • Auto Climate Control with Dual Temp Zones
  • Automatic Stop/Start
  • Adjustable Steering Wheel - Tilt & Telescopic
  • 19 Inch Alloy Wheels
  • Brake Assist
  • Cruise Control
  • Central Locking Remote Control
  • Daytime Running Lights - LED
  • Dusk Sensing Headlights
  • Digital Video Disc Player
  • Electronic Brake Force Distribution
  • Electronic Differential Lock
  • Electronic Stability Program
  • Fog Lights - Front
  • Head Airbags
  • Engine Immobiliser
  • Leather Steering Wheel
  • Leather Upholstery
  • Multi Function Steering Wheel
  • Metallic Paint
  • Mobile Phone Connectivity
  • Parking Distance Control Rear
  • Power front seats
  • Power Mirrors With Indicators
  • Power Steering
  • Power Windows
  • Radio CD with 10 Speakers
  • Rain Sensing Wipers
  • Side Airbags
  • Satellite Navigation
  • Seatbelts - Pre-tensioners Front Seats
  • Sport Seats
  • Sports Suspension
  • Trip Computer
  • Traction Control System
  • Xenon Headlights
Optional Features-
