2018 Abarth 124 SPIDER MONZA EDITION Specifications

Abarth Logo
Not tested

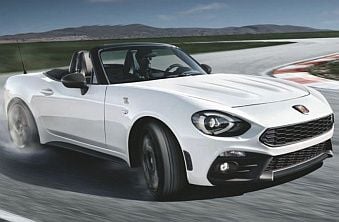

About the 2018 Abarth 124 SPIDER MONZA EDITION

The 2018 Abarth 124 SPIDER MONZA EDITION is a rear-wheel drive two-door roadster that was released to the Australian market on 01/05/2018 classified as a SERIES 1. The 124 is regarded as a sports car built in Italy with prices from a dealer as a used car starting at A$34,400.

The 124 is a rear-wheel drive 2 door with 2 seats, powered by a 1.4L TURBO 4 engine that has 125 kW of power (at 5500 rpm) and 250 Nm of torque (at 2500 rpm) via a Six-speed Manual. ABARTH claims the 124 SPIDER MONZA EDITION uses 6.5L/100km of Premium Unleaded Petrol in the combined city and highway cycle while putting out 150g of CO2. It has a 45L fuel tank, meaning it should be able to travel 692km per full tank.

The 124 measures 1233mm (48.5 inches) in height, 4054mm (159.6 inches) in length, 1740mm (68.5 inches) in width with a 2310mm (90.9 inches) wheelbase that brings about a total of 1110kg (2447.1 lbs) of unladen weight. The 124 SPIDER MONZA EDITION comes standard with 205/45 R17 front tyres and 205/45 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first.

The 2018 Abarth 124 SPIDER MONZA EDITION has a 138mm ground clearance.

The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JC0NF2EK600123456.


There are no current reviews of this variant. Click here to see reviews for other variants of the Abarth 124
Used Price From DealerA$34,400
Trade-In ValueA$28,600
SeriesSERIES 1
Body Styletwo-door roadster
Release date01/05/2018
Discontinued date31/07/2018
Drive typeRWD
VIN plate locationDriver Side Front Floor
Compliance plate locationLower Pass Side Centre Pillar
VIN ExampleJC0NF2EK600123456
Country of originItaly
SegmentSports Car
Safety ANCAP ratingNot tested
Number of doors2
Seating capacity2
Abarth 124 SPIDER MONZA EDITION Engine Specifications
Size1368cc, 1.4L
Power @ RPM 125kW @ 5500rpm (167.6 hp)
Torque @ RPM250Nm @ 2500rpm (184.4 lb-ft)
Cylindersturbocharged four-cylinder
Number of Valves16
Euro RatingEURO 6
Compression ratio-
Power/weight ratio112.6kw/tonne
Bore/stroke72mm × 84mm (2.8in × 3.3in)
Abarth 124 SPIDER MONZA EDITION Drivetrain and Wheels
TransmissionSix-speed Manual
Drive typerear-wheel drive
Turning circle-
Brake (front) typeDISC - VENTILATED
Brake (rear) typeDISC - VENTILATED
Front tyre & wheel size205/45 R17 - 7x17
Rear tyre & wheel size205/45 R17 - 7x17
Front suspension typeMacPherson strut, Control Arm
Rear suspension typeRigid axle, Coil Spring, Anti roll bar
Abarth 124 SPIDER MONZA EDITION Fuel Specifications
Fuel tank capacity45L
Fuel consumption (combined average)6.5L / 100km
Fuel consumption city (average)8.6L / 100km
Fuel consumption highway (average)5.2L / 100km
Vehicle range692.3km (430.2 miles)
Emission standardEURO 6
E10 compatible-
CO2 emissions (combined)150g / 100km
CO2 emissions (city)200g / 100km
CO2 emissions (highway)121g / 100km
Abarth 124 SPIDER MONZA EDITION Dimensions
Length4054mm (159.6 inches)
Width1740mm (68.5 inches)
Height1233mm (48.5 inches)
Wheelbase2310mm (90.9 inches)
Front track1496mm (58.9 inches)
Rear track1503mm (59.2 inches)
Ground clearance138mm (5.4 inches)
Unladen weight1110kg (2447.1 lbs)
Gross Vehicle Mass-
Gross Combination Mass-
Abarth 124 SPIDER MONZA EDITION Towing Capacity
Braked towing capacity-
Unbraked towing capacity-
Abarth 124 SPIDER MONZA EDITION Warranty
Warranty length36 months
Warranty distance150,000km
Abarth 124 SPIDER MONZA EDITION Servicing
Service interval (km)15,000 km
Service interval (months)12 months
Standard Features
  • Additional 12 Volt Socket/s
  • Dual Front Airbags Package
  • Airbag Pedestrian
  • Anti-lock Braking
  • Air Conditioning
  • Adaptive Headlights
  • Active Front Head Restraints
  • Adjustable Front Seats - Manual
  • Alarm System/Remote Anti Theft
  • Automatic Seat Belt Tensioners
  • AUX/USB Input Socket
  • 17 Inch Alloy Wheels
  • Body Coloured Exterior Door Handles
  • Bi Modal Exhaust
  • Blind Spot Monitoring
  • Bluetooth Connectivity
  • Cup Holders - Front Seats
  • Daytime Running Lights - LED
  • Electronic Stability Control
  • Fog Lights - Front
  • Fog Lights - Rear
  • Floor Mats - Front
  • Headlights - Automatic Levelling
  • Heated Front Seats
  • Halogen Headlights
  • Headlight Washer System
  • Illuminated - Entry/Exit with Delayed Fade
  • Engine Immobiliser
  • Keyless Entry
  • Keyless Entry & Push Start Button
  • LED Headlights
  • Limited Slip Differential
  • Leather Upholstery
  • Multi Function Control Screen
  • Multi Function Display
  • Map/Reading Lights - Front
  • Park Assist
  • Pedestrian Recognition
  • Power Mirrors
  • Power Windows With One-Touch Operation
  • Quad Exhaust
  • Red Brake Calipers
  • Rear Cross Traffic Alert
  • Rear Lights - LED
  • Red Stitching on Seats
  • Rain Sensing Wipers
  • Reversing Camera
  • Rear View Mirror Day/Night
  • Side Airbags
  • Seatbelts - Reminder for Front Seats
  • Sports Exhaust System
  • Special Paint Finish Exterior Mirrors
  • Special Identifying Badging
  • Side Skirts
  • Sports Pedals
  • Sound System with 9 Speakers
  • Special Seat Inserts
  • Sports Steering Wheel
  • Subwoofer
  • Sunvisors with Vanity Mirrors
  • Tyre Pressure Monitoring System
  • Vision Pack
Optional Features
  • Metallic Paint - A$590
  • Solid Paint Special - A$590
